Fabtech 4 Inch Performance Lift Kit with Dirt Logic Remote Reservoir Shocks – K1176DL

Fabtech

Shop Chevrolet Silverado 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch to 7-inch lift for 2019–2026 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks
  • Dirt Logic 2.5 stainless coilovers that provide 6 inches of lift
  • Independent front suspension with zero bump steer.
  • 5-inch rear block and U-bolt system with Dirt Logic 2.25 rear shocks

Description

Overview

The Fabtech K1176DL is a 6-inch to 7-inch performance lift kit with Dirt Logic remote reservoir shocks for the 2019 to 2026 Chevrolet Silverado 1500 and GMC Sierra 1500. Fabtech describes its independent front suspension design for the Chevy and GMC 1500 as providing good drive ability both on and off the road, and says there is zero bump steer through the full suspension cycle.

The stainless steel Dirt Logic 2.5 coilovers provide the 6 inches of front lift, and Fabtech says they give strong ride quality on and off road while remaining supple on the highway. Rear Dirt Logic 2.25 shocks damp the vehicle for a balanced ride, and the rear is lifted with a 5-inch block and U-bolt system. The near stock track width keeps the tires under the fenders for a clean look.

Key features

  • 6-inch front lift from Dirt Logic 2.5 stainless steel coilovers
  • Independent front suspension with zero bump steer.
  • Near stock track width
  • Proprietary steering knuckle geometry for a tight turning radius
  • Heavy duty 1/4-inch steel crossmembers with OE style cam pins
  • Triple front differential mounts for vibration free operation
  • Dirt Logic 2.25 rear shocks
  • Free 5-year, 60,000-mile powertrain warranty.

Front geometry and driveline checks

Independent front suspension moves each wheel on its own, so the steering and suspension geometry work together through a range of motion. A lift changes that geometry, which is why the steering knuckle angles and tie rod positions should be checked after the work. Watch for changes in steering feel, especially when driving over rough surfaces.

The front differential mounts reposition the differential, so the CV angles and driveshaft angles need checking. Vibration at highway speed is often the first sign that angles are off. Tighten mount bolts to the correct torque after the first drives, and recheck them at routine service. Heavy steel crossmembers add strength, but they should be inspected for cracks after rough trail use.

Coilovers wear over time, so check the seals, mounts and damper rods at regular intervals. Remote reservoir shocks help dissipate heat during long off-road runs, which keeps damping steady. Replace worn bushings and joints together to keep the new geometry consistent.

Specifications

Brand Fabtech
Part number FABK1176DL
Lift height range 6 to 7 inches
Front lift 6 inches, Dirt Logic 2.5 stainless steel coilover
Rear shocks Dirt Logic 2.25
Rear lift component Block and U-bolt, 5 inches
Crossmembers 1/4-inch steel, OE style cam pins
Warranty 5-year, 60,000-mile powertrain
Fitment type Direct fit

Vehicle fitment

It fits 2019 to 2026 Chevrolet Silverado 1500 models in the Custom, High Country, LT, LTZ, RST, SSV and WT versions, and GMC Sierra 1500 models in the Base, Denali, Elevation, SLE and SLT versions.

The Trail Boss and AT4 versions use a separate 4-inch Fabtech system and are not covered by this kit. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Replacing the front coilovers and adding a 6-inch lift changes front geometry, so a wheel alignment and a driveline angle check should follow the install. The triple front differential mounts reposition the differential, so the CV angles should be checked after the mounts are set.

What’s included

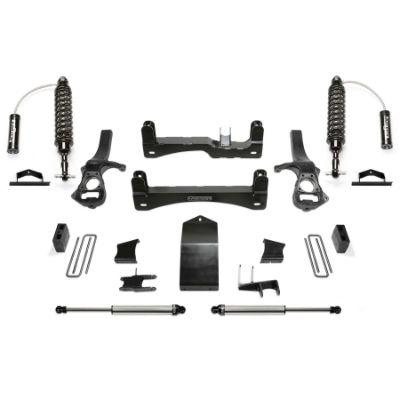

The kit includes the Dirt Logic 2.5 stainless steel coilovers, the Dirt Logic 2.25 rear shocks, the 1/4-inch steel crossmembers, the triple front differential mounts and the 5-inch rear block and U-bolt system.

Not included: Tires and wheels are sold separately. Choose sizes that fit the lift and confirm clearance before mounting.

SKU: FABK1176DL Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002019–2026Custom, High Country, LT, LTZ, RST, SSV, WT
GMC Sierra 15002019–2026Base, Denali, Elevation, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K1176DL fit a 2019 Silverado 1500?

Yes. The kit fits 2019 through 2026 Silverado 1500 models in the Custom, High Country, LT, LTZ, RST, SSV and WT versions. Confirm your version before ordering, since the Trail Boss and AT4 are not covered by this kit.

How much lift does this kit provide?

The front Dirt Logic 2.5 coilovers provide 6 inches of lift, and the rear is raised with a 5-inch block and U-bolt system. The overall lift height range for the kit is 6 to 7 inches.

Does the kit include rear shocks?

Yes. Dirt Logic 2.25 rear shocks are included, and they damp the vehicle for a balanced ride. The front Dirt Logic 2.5 coilovers are also part of the kit.

How often should the front differential mounts be inspected?

Inspect them at regular service intervals and after heavy off-road use. Look for cracked bushings, loose bolts or unusual driveline vibration. Recheck CV angles whenever the mounts or differential are moved, since the position affects driveline operation.
