Overview
The Fabtech K2032DL is a 6-inch 4-link lift with Dirt Logic SS 4.0 coilovers and rear Dirt Logic SS shocks for the 2008 Ford F-250 Super Duty and the 2008 Ford F-350 Super Duty. The arms replace the factory arms directly and use a 1-inch ID stainless American Uniball that sits in the factory ball joint taper.
The arms add caster for alignment adjustment, and the chromoly tubing reduces flex compared with stock arms. The 4340 heat-treated Uniball pin fits without any spindle change, so factory parts can be reinstalled later. The kit works with Dirt Logic 2.5 coilover shocks for more wheel travel. It is made for factory aluminum suspension vehicles only.
Chromoly tubing reduces flex compared with the stock arms, giving a firmer, more positive road feel.
The arms are direct replacements for the factory arms and suit suspensions that need extra strength and alignability.
Key features
- 6-inch lift, range 5 to 6.99 inches
- Dirt Logic SS 4.0 coilovers
- Rear Dirt Logic SS shocks
- 1-inch ID stainless American Uniball
- Chromoly tubing arms
- Adjustable caster
Before you buy
A 4-link arm set controls axle position under acceleration and braking, so its condition affects how the front and rear of a lifted truck behave. Because the arms carry the axle’s forward and rearward loads, a worn joint or bent link shows up as clunking, wandering or uneven tire wear. Inspect the Uniball pins and link ends at each tire rotation, and replace any joint that has play.
Coilover shocks and 4-link arms are often replaced together. Changing the shock package changes the damping and spring rate the axle sees, so the shock choice should match the arm geometry. Lift height also changes driveline angles, and many owners check the driveshaft and steering components after a lift is installed.
Off road, a 4-link lift keeps wheel travel controlled while the axle articulates, which is the main reason to choose this layout over a leaf-spring setup. After the first few trail runs, re-torque the frame and axle hardware and look for any sign of rubbing on the tires or brake lines.
- Check Uniball pins for play at every service
- Re-torque axle and frame hardware after the first trail runs
- Look for rubbing on brake lines and tires after articulation
- Inspect driveshaft angles once the lift is installed
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2032DL |
| UPC | 674866096295 |
| Lift height | 6 inches (range 5 to 6.99 inches) |
| Suspension type | Coilover, 4-link |
| Uniball | 1-inch ID stainless American |
| Rear lift method | Lift blocks and U-bolts |
| Shocks | Dirt Logic SS shocks included |
| Tire and wheel fit | 295/70R17 on 17×8, 275/65R18 on 18×8, 285/55R20 on 20×9; 4 1/2-inch and 5-inch backspacing |
Vehicle fitment
It fits the 2008 Ford F-250 Super Duty and the 2008 Ford F-350 Super Duty.
Fitment covers 2008 models only, so 2009 and 2010 Super Duty trucks are not included. AutoRide shocks, all-wheel drive and standard cab trucks are excluded. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The system fits factory aluminum suspension vehicles only, so confirm the factory suspension type before installing. The OEM wheel and tire cannot be used with the kit.

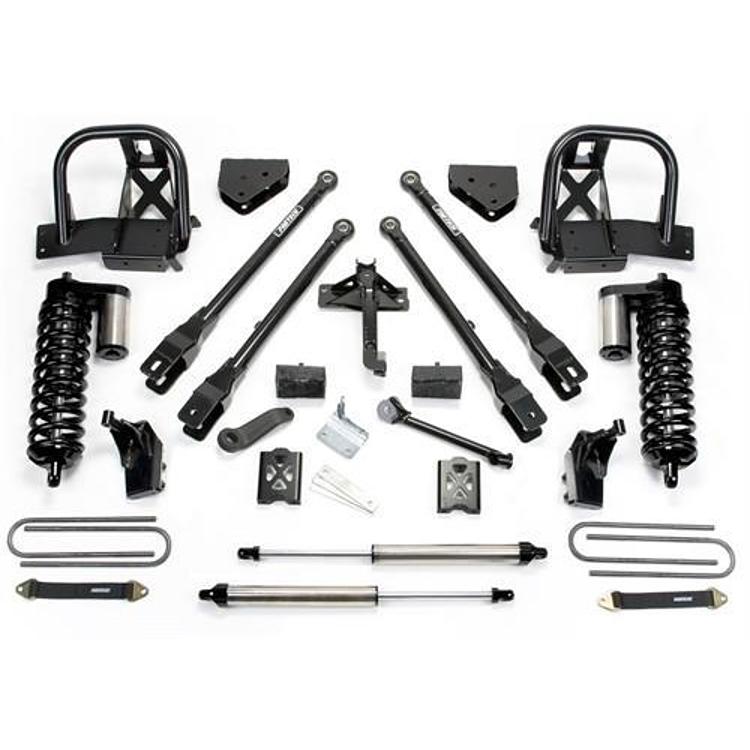

What’s included
4-link arms with Uniball pins, Dirt Logic SS 4.0 coilovers, the rear block and U-bolt kit and the rear Dirt Logic SS shocks.
