Overview
The Fabtech 3 Inch Uniball Upper Control Arm Lift Kit with Rear Performance Shocks, part number K1129, is a 3 inch lift system for the Chevrolet Silverado 1500 and GMC Sierra 1500. It fits 2019–2026 models in the Silverado trims Custom, Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, RST, WT and ZR2, and the Sierra trims AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE and SLT.
The 3 inch front lift comes from steel spacers that keep the factory coilover shocks in place. The rear lift uses 1.5 inch blocks and U-bolts, and performance shocks are included.
Uniball upper control arms swap the ball joint for a bearing, which gives the suspension more travel without binding. The factory coilovers stay in use at the front, held in place by the steel spacers as the height goes up.
Key features

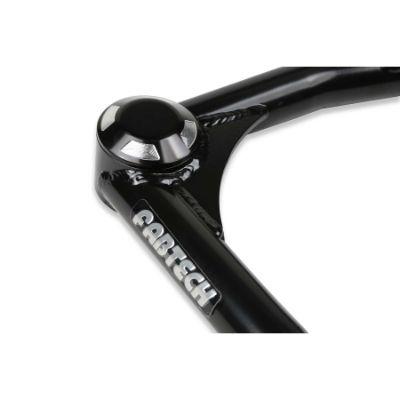

- Uniball upper control arms in 1.50 inch OD 4130 chromoly tubing
- 1 inch FK stainless PTFE-lined Uniball bearings in place of ball joints
- Steel front spacers that keep factory coilover shocks
- Rear block and U-bolt lift with 1.5 inch blocks
- Performance shocks included
Matching the lift to your driveline
A lift raises the axle and control arm geometry, so the driveshaft angles change, and that affects vibration and wear. Before ordering, consider the tires you plan to run, because larger tires add rolling diameter and can rub at full suspension travel. Check that the steering and brake lines have enough length for the new ride height.
Uniball control arms remove the factory ball joints, so the bearing condition should be checked on a regular basis, especially on trucks used off road. Keep the front spacers and U-bolts snug after the first few drives, and inspect the rear blocks for movement. A proper alignment after the lift helps the tires wear evenly.
- Check driveshaft angles after installation
- Recheck U-bolt torque after the first drives
- Inspect Uniball bearings during regular service
- Plan for an alignment after the lift
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1129 |
| Lift | 3 inch |
| Lift height range | 0 to 3.5 inches |
| Upper control arms | 4130 chromoly, 1.50 inch OD |
| Bearings | 1 inch FK stainless PTFE-lined Uniball |
| Rear lift | 1.5 inch blocks and U-bolts |
| Rear shocks | Performance shocks |
| Front shocks | Reuse OEM |
| Shocks included | Yes |
Vehicle fitment
It fits the 2019–2026 Chevrolet Silverado 1500 and the 2019–2026 GMC Sierra 1500, in the trims named above.
Silverado and Sierra years outside 2019–2026, and 2500 and 3500 trucks, are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The front retains the factory coilover shocks with steel spacers, and the Uniball control arms replace the stock ball joints. Check the rear block and U-bolt fit against your axle before fitting.

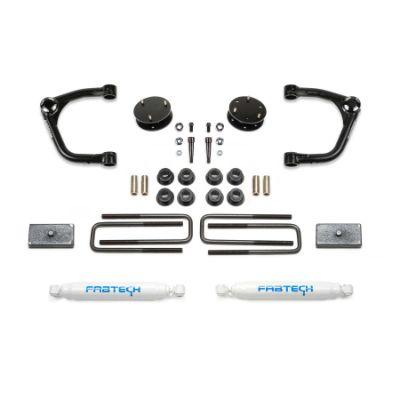

What’s included
Uniball upper control arms, steel front spacers, rear blocks and U-bolts, and performance rear shocks. The factory front shocks are reused with the kit.
