Fabtech 6 Inch RTS Lift Kit with Stealth Series Shocks – K1159M

Fabtech

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch RTS lift with Stealth shocks front and rear for 2020–2026 Silverado and Sierra 2500 HD trucks
  • RTS brackets keep the torsion bars in their factory location
  • Arched lower control arm crossmembers with 1/4-inch steel skid plate
  • Built for 37-inch tires; four holes to drill, no cutting of the front differential housing

Description

Overview

The Fabtech K1159M is a 6-inch RTS lift kit with Stealth front and rear shocks for the Chevrolet Silverado 2500 HD and GMC Sierra 2500 HD. It also covers 2020 and 2021 Silverado 3500 HD and Sierra 3500 HD models. The lift height range is 6 to 7 inches, and the kit is designed to clear 37-inch tires.

The kit is built to improve off-road capability while keeping a smooth highway ride, and it keeps the truck’s factory load carrying capacity. That suits owners who tow and haul. The RTS design is a bracket system that keeps the torsion bars in their factory location while still providing lift.

Key features

  • RTS bracket system that keeps the torsion bars in the factory location
  • Torsion bars do not hang low, which Fabtech says improves ground clearance at the frame
  • Arched lower control arm crossmembers for ground clearance
  • 1/4-inch steel skid plate protecting the front differential
  • Crossmembers and bracketry built from 1/4-inch steel
  • Stealth front and rear shocks
  • Rear lift block

Why torsion bar position matters

Torsion bars set the front ride height in many trucks, and moving them changes the front suspension geometry. An RTS bracket system holds the bars where the factory placed them, which keeps the front end’s load path close to stock. That approach limits the parts that must change to achieve the lift.

Heavier trucks used for towing rely on consistent front and rear support, so check the condition of the frame, skid plate mounts and control arm bushings after the install. Recheck the drop from the rear block once the truck has been loaded and unloaded a few times. Keep the rear block fasteners tight, since they carry the rear lift loads.

  • Inspect control arm bushings after installation
  • Check the rear block fasteners for torque
  • Confirm the skid plate is secure after rough trails

Specifications

Brand Fabtech
Part number FABK1159M
Lift height range 6 to 7 inches
Front shocks Stealth
Rear shocks Stealth
Rear lift method Block and spacer
Crossmembers and bracketry 1/4-inch steel
Drilling Four holes; front differential housing not cut
Tire options 37/12.50R18 on 18×9, 37/12.50R20 on 20×9, 37/12.50R22 on 22×9; all with 5 3/4-inch backspacing and minor trimming
Fitment type Direct fit

Vehicle fitment

It fits 2020 to 2026 Chevrolet Silverado 2500 HD models in the Custom, High Country, LT, LTZ and WT versions, 2020 to 2021 Silverado 3500 HD models in the LT and LTZ versions, 2020 to 2026 GMC Sierra 2500 HD models in the AT4, Base, Denali, SLE and SLT versions, and 2020 to 2021 Sierra 3500 HD models in the Base, SLE and SLT versions.

Both 2500 HD and 3500 HD trucks are covered in the years and versions above. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Only four holes need drilling, and the front differential housing does not need cutting. The 6-inch lift changes front geometry, so an alignment and a driveline angle check belong after installation. The tire options carry a minor trimming note.

What’s included

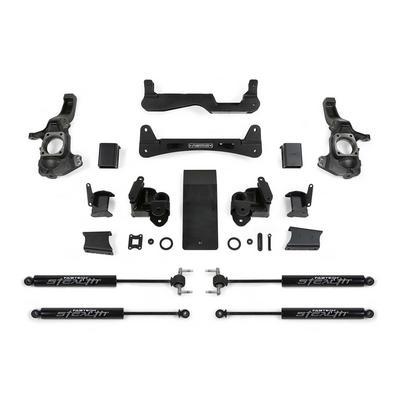

The kit includes the RTS bracket system, the arched lower control arm crossmembers, the 1/4-inch steel skid plate, the Stealth front and rear shocks and the rear block.

SKU: FABK1159M Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2020–2026Custom, High Country, LT, LTZ, WT
Chevrolet Silverado 3500 HD2020–2021LT, LTZ
GMC Sierra 2500 HD2020–2026AT4, Base, Denali, SLE, SLT
GMC Sierra 3500 HD2020–2021Base, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K1159M fit a 3500 HD truck?

Yes. It fits 2020 and 2021 Silverado 3500 HD LT and LTZ models and 2020 and 2021 Sierra 3500 HD Base, SLE and SLT models. The 2022 3500 HD is not covered, so confirm the year before ordering.

Does the installation require cutting the front differential?

No. Installation needs only four holes drilled, and the front differential housing is not cut. The skid plate protects the differential once the kit is in place.

What tire size does the K1159M clear?

The kit is designed for 37-inch tires. Fabtech lists 37/12.50R18 on 18x9 wheels, 37/12.50R20 on 20x9 wheels and 37/12.50R22 on 22x9 wheels, with 5 3/4-inch backspacing and a minor trimming note.

How do I check the front alignment after an RTS install?

Have an alignment performed on the truck after the lift is complete and the tires are mounted. Ask the shop to check caster, camber and toe, since the lifted geometry changes all three. Recheck after the first few weeks of driving.
