Overview
The Fabtech K2160DL is a 4-inch budget lift with Dirt Logic SS shocks for the 2008–2015 Ford F-250 Super Duty and the 2008–2015 Ford F-350 Super Duty. The lift height range is 3 to 4.99 inches, and the shocks are included.
The front uses a steel spacer system on the factory coilover shocks, with thick wall DOM tubular arms and extended range ball joints. The front differential is relocated, a 1/4-inch steel skid plate protects the front, and 1 1/2-inch rear lift blocks with U-bolts complete the lift. The arms and skid plate are the main structural parts of the setup.
Key features
- 4-inch budget lift, range 3 to 4.99 inches
- Thick wall DOM tubular arms
- Extended range ball joints
- Relocated front differential
- 1/4-inch thick steel skid plate
- Performance rear shock absorbers
Budget lift trade-offs
A budget lift keeps the factory coilover shocks in place and uses spacers to raise the front, so front ride and damping depend heavily on how the spacer system is installed. Check that the spacers seat squarely and that the shock mounts are not twisted once the lift is complete. Thick wall tubular arms are sturdy, but ball joints and bushings still wear and should be inspected each season.
Rear lift blocks change the pinion angle and the driveline, so watch for vibration at highway speed and check the U-bolts after the first few drives. A relocated front differential changes driveline angles too, and it should be inspected for leaks. A skid plate takes hits from rocks, so look for dents and loose bolts after rough trail use.
- Check spacer bolts after the first drives
- Inspect ball joints for play
- Watch driveline angles and vibration
- Look for skid plate dents and loose fasteners
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2160DL |
| UPC | 674866097247 |
| Lift height | 4 inches (range 3 to 4.99 inches) |
| Front components | Steel spacer system on the factory coilover shocks, DOM tubular arms |
| Rear lift | 1 1/2-inch lift blocks and U-bolts |
| Skid plate | 1/4-inch thick steel |
| Tire clearance | Clearance is for 33-inch tall tires. Confirm the tire fit for your truck before ordering. |
| Shocks | Dirt Logic SS shocks included |
Vehicle fitment
It fits the 2008–2015 Ford F-250 Super Duty and the 2008–2015 Ford F-350 Super Duty.
The kit is for Super Duty trucks in the years above. Verify the factory suspension type on your vehicle, and check your truck’s year, model and trim against the fit first.
Installation notes
Check the relocated front differential and the 1/4-inch steel skid plate fit against your truck before starting. Verify the factory suspension type on the vehicle as well.
What’s included

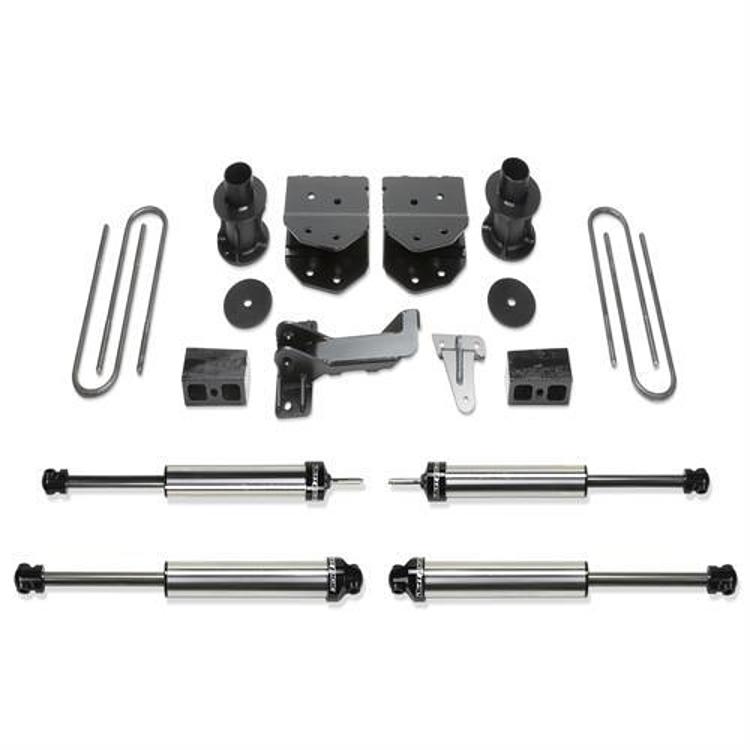

Thick wall DOM tubular arms with extended range ball joints, the 1/4-inch steel skid plate, the 1 1/2-inch rear lift blocks and U-bolts and Dirt Logic SS shocks.
