Overview
The Fabtech K2139DL is an 8-inch radius arm lift with Dirt Logic SS shocks for the 2008–2015 Ford F-250 Super Duty and the 2014 Ford F-350 Super Duty. It fits non-dually models only, with a lift height range of 7 inches and up.
The front uses replacement coil springs with Fabtech’s patented radius arms, which have a full tubular structure with dimple die side plates. An adjustable alignment cam at the axle sets the caster. The rear is lifted with a block and U-bolt kit. The system also includes a trac bar relocation bracket, a pitman arm and sway bar drops. The listed tire sizes are 315/70R17 on 17×8 wheels with a 4 1/2-inch backspace and 325/65R18 on 18×9.5 wheels with a 4 3/4-inch backspace, both with minor trimming.
Key features
- 8-inch lift, range 7 inches and up
- Patented radius arm design.
- Dimple die side plates on a full tubular arm structure
- Adjustable alignment cam at the axle
- Replacement front coil springs
- Dirt Logic SS shocks included
Radius arms and the front end
Radius arms control the front axle’s fore and aft position and carry braking and drive forces, so their bushings and mounts see steady load. The adjustable alignment cam sets caster after the arms are in place, and a caster change shows up in steering feel and tire wear. Recheck the cam setting after the first few alignments.
Replacement coil springs change the front ride height, so the shocks and bump stops should suit the new position. Dirt Logic SS shocks are sized for the lift, but their mounts and bushings should be inspected whenever the front end is serviced. Taller tires and non-dually setups also change load paths, so check the rear block and U-bolts after the first drives.
- Inspect radius arm bushings for cracking
- Recheck alignment after cam adjustments
- Check the trac bar and pitman arm for play
- Look for sway bar drop clearance over bumps
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2139DL |
| UPC | 700007275221 |
| Lift height | 8 inches (range 7 inches and up) |
| Suspension type | Radius arm |
| Front spring | Replacement coil springs |
| Rear lift method | Block and U-bolt kit |
| Tire and wheel fit | 315/70R17 on 17×8 with 4 1/2-inch backspace; 325/65R18 on 18×9.5 with 4 3/4-inch backspace |
| Applies to | Non-dually models only |
| Shocks | Dirt Logic SS shocks included |
Vehicle fitment
It fits the 2008–2015 Ford F-250 Super Duty and the 2014 Ford F-350 Super Duty.
Dually models are not covered, and the F-350 applies to 2014 only. Verify your truck’s year, model and trim before you order.
Installation notes
The kit includes a trac bar relocation bracket, a pitman arm and sway bar drops, which change the steering and sway bar parts during the install. Minor trimming is listed with both tire sizes.
What’s included

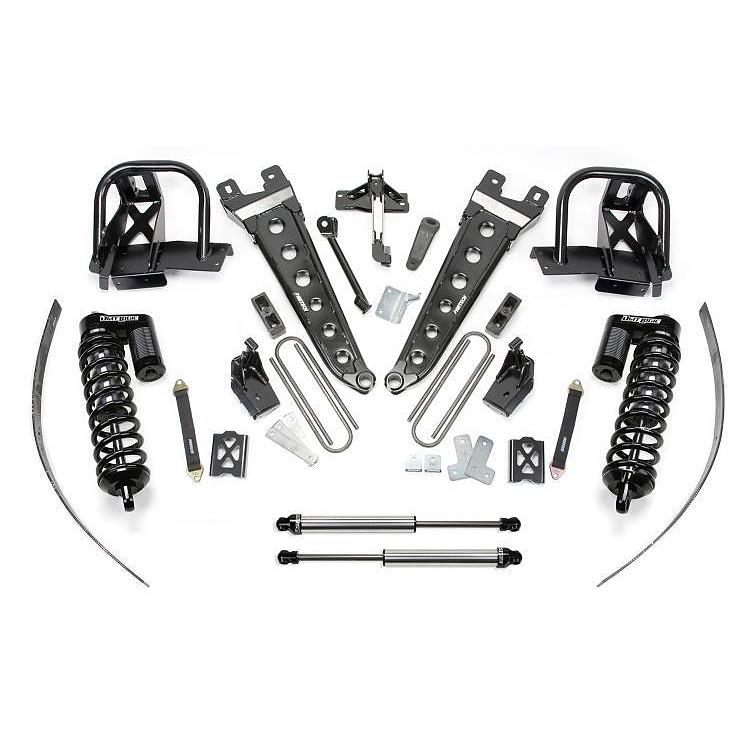

Patented radius arms, replacement front coil springs, a block and U-bolt kit, a trac bar relocation bracket, a pitman arm, sway bar drops and Dirt Logic SS shocks.
