Overview
The Fabtech FTS21088 is a 3.5-inch spindle lift for the 2007–2013 Chevrolet Silverado 1500 and the 2007–2013 GMC Sierra 1500. The spindles replace the factory units and keep the stock ball joints, and a 1-inch block and U-bolt kit at the rear levels the stance of the truck.
The kit increases the height of the vehicle and adds front ground clearance, with a ride that feels close to stock. A recommended tire is 325/50R20 on 20×9 wheels, and the kit clears 33-inch tires. Steering correction is not required, and rear performance shocks are included.
Key features
- 3.5-inch lift height
- Spindles are a direct replacement for the factory part
- Stock ball joints retained
- 1-inch rear block and U-bolt kit
- Rear performance shocks
- No steering correction required
Spindle lifts and drivetrain checks
A spindle lift raises the front end by replacing the steering knuckle assembly, which keeps the factory ball joints in place. Because the geometry changes at the knuckle, the front alignment should be checked after installation, including caster, camber and toe. The rear block and U-bolt kit adds height at the back, so the front and rear heights should be compared to keep the truck level.
Spindle lifts are often chosen for their simpler installation compared with a full suspension lift. Over time the rear block fasteners can loosen, and the performance shocks should be checked for leaks and worn mounts. Brake lines and the front driveline angles may also need a look after a change in height, so inspect those parts during routine service.
- Check front alignment after installation
- Compare front and rear height for a level stance
- Inspect performance shocks for leaks at each service
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FTS21088 |
| UPC | 674866030381 |
| Lift height | 3.5 inches (range 3 to 4.99 inches) |
| Suspension type | Steering knuckle, spindle |
| Front lift method | Steering knuckles |
| Rear lift | 1-inch lift block and U-bolts |
| Recommended tire size | 325/50R20 |
| Recommended wheel size | 20×9 |
| Tire clearance | 33 inches |
| Shocks | Rear performance shocks |
Vehicle fitment
It fits the 2007–2013 Chevrolet Silverado 1500 and the 2007–2013 GMC Sierra 1500.
The list covers the 1500 trucks only, not the 2500 HD or 3500 HD. Model years before 2007 and after 2013 are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The spindles bolt in as a direct replacement, so the factory ball joints stay in use. Steering correction is not required.

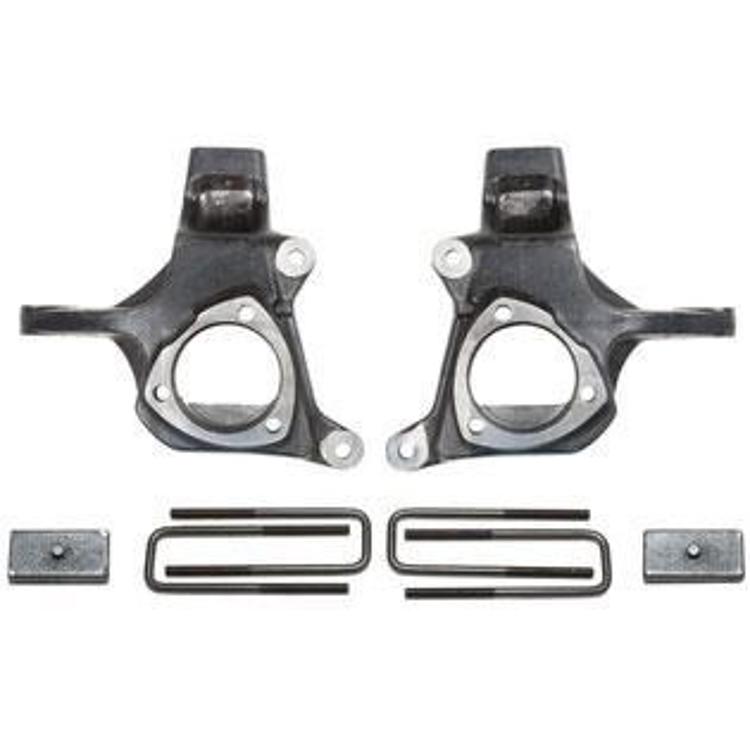

What’s included
Front spindles, the rear block and U-bolt kit and the rear performance shocks.
