Fabtech 4 Inch Budget Lift Kit w/Ball Joint UCA & Rear Performance Shocks – K1070

Fabtech

$702.81In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2014–2018 Chevrolet Silverado 1500 and GMC Sierra 1500
  • 4-inch budget system with ball joint upper control arms
  • Front coilover spacers and rear lift blocks with U-bolts
  • Rear performance shock absorbers included
  • For trucks with factory aluminum suspension only

Description

Overview

The Fabtech K1070 is a 4-inch budget lift for the 2014–2018 Chevrolet Silverado 1500 and the 2014–2018 GMC Sierra 1500 with factory aluminum suspension. It gives clearance for 33-inch tall tires on 2014 K1500 trucks with that suspension.

The front keeps the factory coilover shocks and adds a steel spacer system, which Fabtech says helps retain the stock ride. The stock upper control arms are replaced with thick wall DOM tubular arms that use heavy duty extended range ball joints, and the front differential is relocated to keep CV angles proper at the new height. A 1/4-inch thick steel skid plate protects the front, and the rear uses 1 1/2-inch lift blocks with U-bolts.

Rear performance shock absorbers replace the stock units to add damping.

Key features

  • 4-inch budget lift
  • Thick wall DOM tubular ball joint upper control arms
  • Heavy duty extended range ball joints
  • Front coilover spacers on the factory coilover shocks
  • 1/4-inch thick steel differential skid plate
  • Rear performance shock absorbers

Before choosing a budget lift

A budget lift like this one keeps the factory coilover shocks and adds spacers, so the front ride stays closer to stock than with a full coilover conversion. The ball joint upper control arms carry the steering and braking loads through the new geometry, which makes their installation worth careful measurement. Factory aluminum suspension is a different setup from steel suspension, so confirm the type before buying.

Rear performance shock absorbers help control the extra travel that comes with the lift blocks. Check the rear shock mounts and U-bolt fasteners after the first few drives, since blocks can settle. The front differential is relocated in this design, so inspect the CV axles for binding at full steering and full travel once the truck has been driven on uneven ground.

Specifications

Brand Fabtech
Part number K1070
UPC 70000676603
Lift height 4 inches
Front lift Coilover spacers with ball joint upper control arms
Rear lift 1 1/2-inch lift blocks and U-bolts
Skid plate 1/4-inch thick steel
Shocks Rear performance shock absorbers
Tire clearance 33-inch tall tires on 2014 K1500 trucks with factory aluminum suspension

Vehicle fitment

It is a direct fit for the 2014–2018 Chevrolet Silverado 1500 and the 2014–2018 GMC Sierra 1500 with factory aluminum suspension.

The kit is for trucks with factory aluminum suspension only. Verify the year, model and trim against your truck before ordering.

Installation notes

Confirm the factory suspension is the aluminum type before installing, because the kit is made only for that version. The OEM wheel and tire cannot be used with this lift.

What’s included

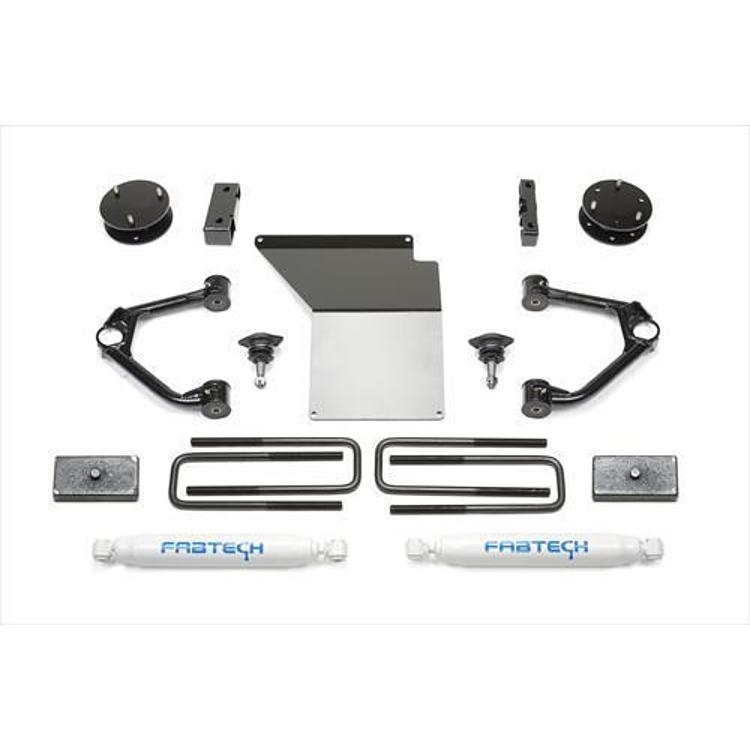

Ball joint upper control arms, front coilover spacers, the differential skid plate, the rear lift blocks with U-bolts and the rear performance shock absorbers.

SKU: FABK1070 Category:

Specification

Shipping weight 78.40 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002014–2018Custom, High Country, LS, LT, LTZ, SSV, WT
GMC Sierra 15002014–2018Base, Denali, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K1070 fit a 2016 GMC Sierra 1500?

Yes, if the truck has factory aluminum suspension. It is a direct fit for the 2014–2018 GMC Sierra 1500, so a 2016 model falls within those years.

What tire size does the K1070 allow?

The kit gives clearance for 33-inch tall tires on 2014 K1500 trucks with factory aluminum suspension. Tire sizes for 17x8, 18x8 and 20x9 wheels are included, with minor trimming.

Does the K1070 need factory aluminum suspension?

Yes. The kit is for trucks with factory aluminum suspension only, so confirm the suspension type on your truck before choosing it and before ordering.

Do the lift blocks affect driveshaft angles?

They can. Raising the rear changes the driveshaft angle, which may cause vibration at highway speed. Check the driveshaft for binding or vibration after installation, and have the angles measured if the truck vibrates at normal cruising speed.
