Overview

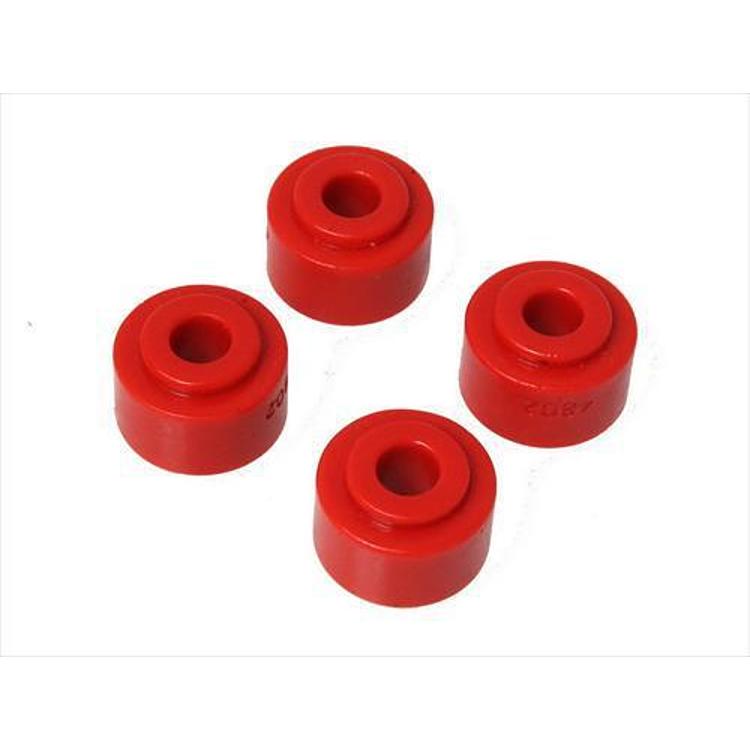

The Energy Suspension 9.8103R is a red polyurethane sway bar link bushing set. It comes as a complete end link set with bushings, zinc plated 3/8 in. grade 5 bolts, nylock nuts and heavy gauge washers. It is marked universal fit, so confirm fit for your vehicle before ordering.
Key features
- Red polyurethane bushings
- Complete end link set with bushings, bolts, nuts and washers
- Zinc plated 3/8 in. grade 5 bolts
- Nylock nuts and heavy gauge washers
Fitting end link bushings
Sway bar end link bushings take constant small movements as the suspension cycles. Over time the polyurethane can crack, the bore can wear oval and the bolt can work loose. A knock or rattle over bumps, or a loose feel on uneven pavement, often points to end links that need attention.
A complete set replaces the bushings along with the hardware, which helps keep the link’s parts matched. Red polyurethane looks distinct under the vehicle, but color does not change how the set fits. Before disassembling, mark the orientation of the link so it returns to the same position.
Once installed, recheck the nuts after the first few drives and inspect the bushings again after off-road trips. Grit and water reach the pivot on rough trails, so periodic inspection is worth the time.
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 9.8103R |
| UPC | 703639414117 |
| Color | Red |
| Bushing material | Polyurethane |
| Hardware | Zinc plated 3/8 in. grade 5 bolts, nylock nuts, heavy gauge washers |
| Fitment | Universal fit |
Vehicle fitment
It is a universal fit kit, so confirm the year, make, model and trim it suits before ordering.
Check your vehicle’s year, make, model and trim before ordering, then apply the same check to the bar.
What’s included
The complete end link set includes the bushings, zinc plated 3/8 in. grade 5 bolts, nylock nuts and heavy gauge washers.
