Overview

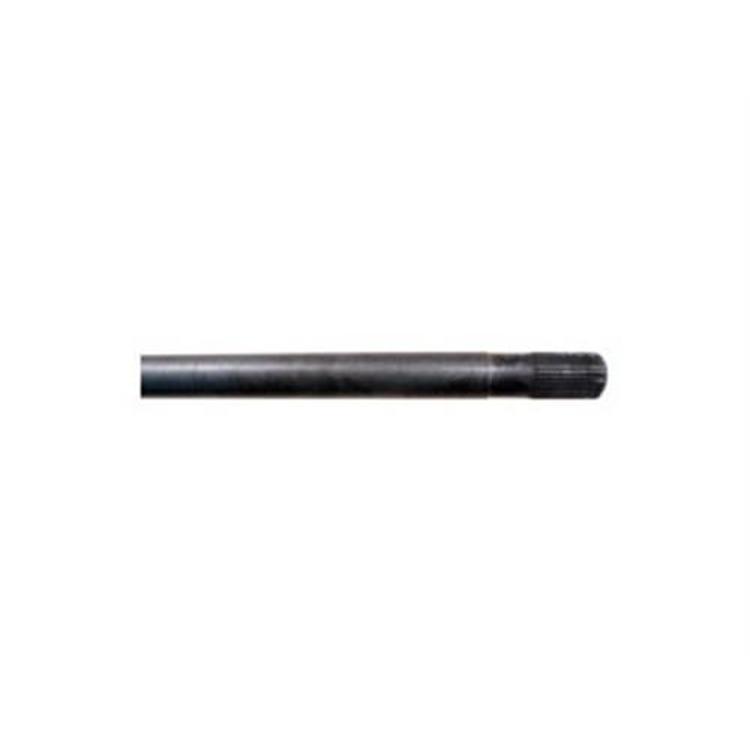

The Dorman rear axle shaft kit, part 630-333, is a complete driver side rear shaft kit for Dana 44 rear axles with 30 splines. It includes the axle bearing, oil seal, wheel studs and wheel nuts, so the installation hardware comes in one package.
Dorman packages the kit so the hardware for a complete repair comes together. It fits the 1987 to 1992 Jeep Cherokee XJ and Comanche, the 1987 to 1995 Wrangler YJ, and the 1997 to 2006 Wrangler TJ and 2004 to 2006 LJ.
Key features
- Driver side rear shaft kit
- 30 splines
- Includes axle bearing and oil seal
- Includes wheel studs and wheel nuts
- Packaged with the installation hardware for a complete repair
Before you install
A Dana 44 rear axle carries heavier loads than many lighter-duty axles, so the shaft and its bearing work harder on trail use with larger tires. Driver side replacement is often done alongside a bearing check on the other side, since both shafts see the same wear. Inspect the axle tube seal and the differential fluid before the new shaft goes in.
Axle shaft jobs go faster when the hub, brake drum and backing plate are cleaned and inspected first. Look for cracked wheel studs, rounded nuts and grease on the brake shoes, since any of these can point to a seal or bearing issue. Torque the wheel nuts properly after installation and recheck them after a short drive, since new hardware can settle.
- Check the differential fluid level
- Inspect the other side’s bearing
- Recheck wheel nuts after a short drive
Specifications
| Brand | Dorman |
|---|---|
| Part number | 630-333 |
| UPC | 19495452942 |
| Axle type | Dana 44 |
| Axle location | Rear |
| Side | Driver side |
| Spline count | 30 splines |
| Includes | Axle bearing, oil seal, wheel studs, wheel nuts |
Vehicle fitment
It fits 1987 to 1992 Jeep Cherokee (XJ) and Comanche, 1987 to 1995 Jeep Wrangler (YJ), 1997 to 2006 Jeep Wrangler (TJ) and 2004 to 2006 Jeep Wrangler (LJ), across the trims covered.
Wrangler JK and Grand Cherokee models are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit includes the bearing, seal, wheel studs and wheel nuts, so you do not need to buy those parts separately for this side.
What’s included
Driver side rear axle shaft kit with axle bearing, oil seal, wheel studs and wheel nuts.
Not included: passenger side shaft.
