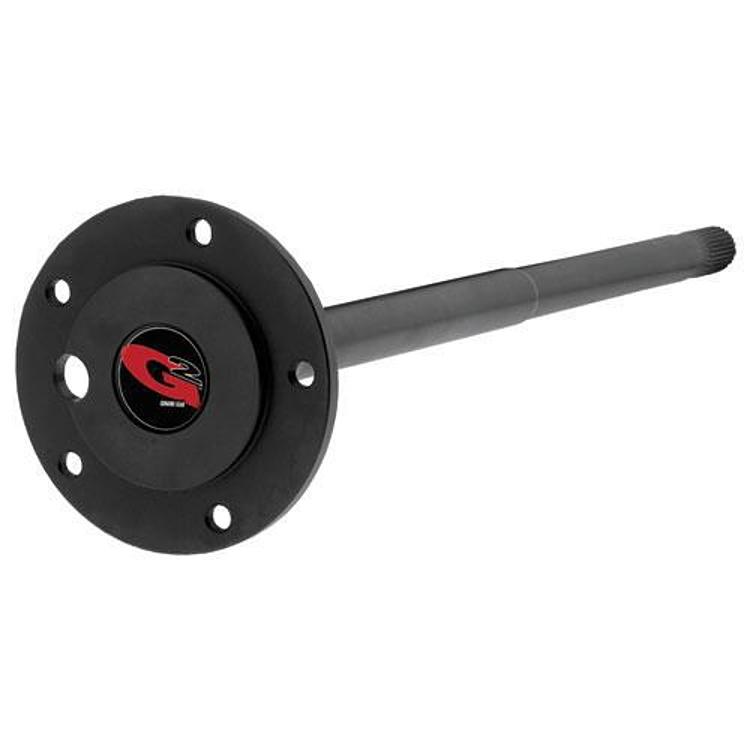

G2 Dana 44 YJ/XJ/TJ 33 Spline Rear Chromoly Axle Kit – 96-2033-2-33

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 44 rear axle kit with 33 splines and a 5-lug dual drilled 5×4.5/5.5 pattern, part number 96-2033-2-33
  • Made for use with a 33-spline aftermarket differential
  • Fits 1997–2006 Jeep Wrangler TJ; confirm YJ and XJ before ordering
  • Differential not included

Description

Overview

The 96-2033-2-33 is a Dana 44 rear chromoly axle kit with 33 splines, made for use with a 33-spline aftermarket differential. It is built for the 1997–2006 Jeep Wrangler TJ.

It is forged from high tensile alloy steel and heat treated for strength. The larger spline diameter handles higher torsional loads than the stock diameter. It has a 5-lug, dual drilled 5×4.5/5.5 wheel pattern. The differential is not included, so a compatible 33-spline carrier is needed to make a complete rear.

Key features

  • 33-spline Dana 44 rear axle kit
  • Forged, heat-treated high tensile alloy steel
  • 5-lug, dual drilled 5×4.5/5.5 wheel pattern
  • Designed for a 33-spline aftermarket differential
  • Larger spline diameter for added torsional strength.

Matching the carrier

A chromoly axle kit only works as a complete rear when the shafts, carrier and gearing match. Count the splines on the carrier before fitting the shafts, since a 33-spline kit will not seat in a differential with a different spline count. Gear ratio and pinion setup also affect how the axle loads the shafts, so check that the carrier and gearing suit the trail or road use planned.

Wheel pattern and hub fit come next. A 5-lug dual drilled pattern needs matching wheels and studs, and the offset should be checked so the tire clears the body and suspension at full travel. Inspect the shafts after each season for twisted splines, grease leaks, and bearing noise, and replace the axle seals whenever the carrier is opened.

  • Count carrier splines before fitting
  • Check gearing against tire size
  • Confirm wheel offset and clearance

Specifications

Brand G2 Axle and Gear
Part number 96-2033-2-33
UPC 631410096897
Axle type Dana 44
Axle location Rear
Spline count 33 splines
Wheel pattern 5 lug, dual drilled, 5×4.5/5.5
Differential Not included

Vehicle fitment

It fits the 1997–2006 Jeep Wrangler TJ on the Dana 44 rear. Confirm the 1987–2006 YJ and XJ years before ordering, because only the 1997–2006 TJ is confirmed for fit.

Wrangler JK and LJ models are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit is built for a 33-spline aftermarket differential. Confirm that the carrier you are using has 33 splines before fitting the shafts, because the kit does not include a differential.

What’s included

The Dana 44 rear axle kit with 33-spline shafts.

Not included: Differential.

SKU: G/296-2033-2-33 Category:

Specification

Shipping weight 44.00 lbs
Package dimensions 37.00 × 7.50 × 7.30 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the G2 96-2033-2-33 fit a 2002 Jeep Wrangler TJ?

Yes. It fits 1997–2006 Wrangler TJ, and 2002 falls in that range. The kit suits the Dana 44 rear with a 33-spline carrier.

Does this kit include the differential?

No. The differential is not included, so you need a 33-spline aftermarket differential to use this kit as a complete rear axle. Check the carrier's spline count before buying the kit.

Will this kit fit a Jeep YJ or XJ?

This kit's confirmed fit is the 1997–2006 Wrangler TJ. Confirm your YJ or XJ year and axle setup before ordering, since those years need checking against the carrier and axle.

What wheel bolt pattern does this axle kit use?

It uses a 5-lug, dual drilled 5x4.5/5.5 pattern. That is the wheel pattern for this 33-spline Dana 44 kit, so match it to your hub before mounting the wheels.

What should be checked before fitting this kit to a carrier?

Confirm the carrier has the same spline count as the shafts, then check the pinion and gear setup. Make sure the bearings and seals are in good condition, since they are reused or replaced during the install.

Why does spline count matter for axle kits?

The spline count has to match the carrier so the shafts engage the differential gears correctly. A mismatch will not seat, and forcing it can damage the splines or the carrier, so count before buying.
