G2 Dana 44 YJ/XJ/TJ 33 Spline Rear Chromoly Axle Kit Disc – 96-2045-2-33

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 44 Rubicon rear axle kit with 33 splines, part number 96-2045-2-33
  • Includes wheel bearings, seals and screw-in wheel studs
  • Fits 1997–2006 Wrangler TJ, 1991–1993 Cherokee XJ and 1991–1995 Wrangler YJ Rubicon applications
  • Made for a 33-spline aftermarket differential, not included

Description

Overview

It is a Dana 44 rear axle kit with 33 splines and a 5-lug dual drilled 5×4.5/5.5 wheel pattern, built for a Dana 44 Rubicon rear. It fits the 1991–1993 Jeep Cherokee XJ, the 1997–2006 Jeep Wrangler TJ and the 1991–1995 Jeep Wrangler YJ.

It is an upgrade over the factory shafts. Its forged and heat-treated high tensile alloy steel shafts handle higher torque, and the larger 33-spline diameter adds strength over the stock diameter. The kit comes with wheel bearings, seals and screw-in wheel studs. The differential is not included, so a 33-spline aftermarket carrier is needed.

Key features

  • 33-spline Dana 44 Rubicon rear axle kit
  • Forged and heat-treated high tensile alloy steel shafts
  • Wheel bearings and seals included
  • Screw-in wheel studs included
  • 5-lug, dual drilled 5×4.5/5.5 wheel pattern

Hub and seal setup

The kit includes wheel bearings, seals and screw-in wheel studs, so the hub assembly is part of the job. Check the bearing seat and the housing bore before seating the new components, and clean out any old grease. Apply grease to the bearing and seal lips as the assembly goes together.

Screw-in studs are set into the hub with the bearing assembly. Confirm the studs are seated fully and that the wheel hub sits flat against the flange before fitting the tire. Recheck the axle nuts and wheel lug torque after the first few drives, and inspect the seals for leaks.

  • Clean the housing bore before install
  • Seat the screw-in studs fully
  • Check seals for leaks after the first drives

Specifications

Brand G2 Axle and Gear
Part number 96-2045-2-33
UPC 631410114133
Axle type Dana 44 Rubicon
Axle location Rear
Position Rear left
Spline count 33 splines
Wheel pattern 5 lug, dual drilled, 5×4.5/5.5
Differential Not included

Vehicle fitment

It fits the 1991–1993 Jeep Cherokee XJ, the 1997–2006 Jeep Wrangler TJ and the 1991–1995 Jeep Wrangler YJ Rubicon. Confirm fit for your vehicle’s year, model and trim before ordering.

Other Cherokee and Wrangler years, the JK and LJ, and the Grand Cherokee are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit includes wheel bearings and seals, so the hub and bearing setup is covered by the kit. The 33-spline shafts require a 33-spline aftermarket differential, which is not included.

What’s included

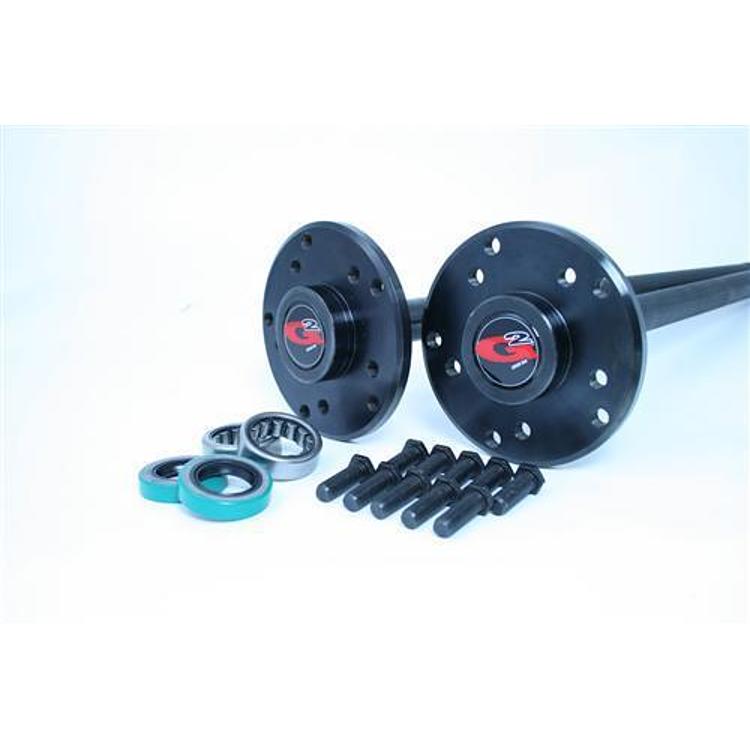

Dana 44 rear axle kit with 33-spline shafts, wheel bearings, seals and screw-in wheel studs.

Not included: Differential.

SKU: G/296-2045-2-33 Category:

Specification

Shipping weight 44.00 lbs
Package dimensions 37.00 × 7.50 × 7.30 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1991–1993Base, Briarwood, Country, Laredo, Limited, Sport
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X
Jeep Wrangler (YJ)1991–1995Base, Islander, Renegade, Rio Grande, S, SE, Sahara

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the G2 96-2045-2-33 fit a 1994 Jeep Wrangler YJ Rubicon?

Yes. The kit fits 1991–1995 Wrangler YJ Rubicon models, and 1994 falls inside that range. It is built for the Dana 44 Rubicon rear with 33 splines.

Does this kit include wheel bearings and studs?

Yes. G2 lists wheel bearings, seals and screw-in wheel studs with the kit. The differential is not included, so a 33-spline carrier is needed to complete the rear.

Is this kit the same as the 96-2033-2-33?

The 96-2045-2-33 is a Rubicon kit that includes wheel bearings, seals and screw-in wheel studs. The 96-2033-2-33 is a 33-spline kit for a 33-spline aftermarket differential and has no Rubicon designation.

What differential does this kit need?

It needs a 33-spline aftermarket differential, which is not included with the kit. The kit is made for that carrier.

How can I tell if the axle seals are leaking?

Look for gear oil on the inside of the wheel, on the brake backing plate or under the axle housing. Check the seal after a few drives and after washing the vehicle. A leaking seal should be replaced before the differential loses too much fluid.
