Daystar 5 Inch Premium Lift Kit – PAPLS616

Daystar

Shop Ram 2500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2013 Ram 2500 and 2013 Ram 3500
  • 5-inch lift for 4WD gasoline trucks, including standard, extended and crew cabs
  • Allows up to 37-inch diameter tires
  • Fiberglass reinforced nylon body blocks and urethane coil spacers
  • Urethane Gap Guard wheel well extensions included

Description

Overview

The Daystar PAPLS616 is a 5-inch premium lift system for the 2013 Ram 2500 and the 2013 Ram 3500. It fits 4WD trucks with gasoline engines, including standard, extended and crew cab models, and allows the use of up to a 37-inch diameter tire on the factory wheels.

Daystar combines a body lift with a leveling system in this kit. It includes front urethane coil spring spacers, fiberglass reinforced nylon body blocks and 3/16-inch thick laser cut, powder coated bumper relocation brackets. The fit note also names a 3500 with non-radius arm suspension, so the suspension type of a 3500 should be confirmed before ordering.

Key features

  • 5-inch lift without modifying existing suspension components
  • Allows up to 37-inch diameter tires
  • Factory wheels can be used after installation
  • Front urethane coil spring spacers
  • Fiberglass reinforced nylon body blocks
  • CNC machined and zinc plated steering extension

Choosing tires for a 37-inch setup

A 37-inch tire is a large change from the stock size, so clearance is the first thing to check. Turn the wheels to full lock and to full compression to see where the tires touch the fenders, the inner liners and the bumper brackets. Also check that the spare and any mud flaps still clear the body after the lift.

Larger tires change the effective gearing, speedometer reading and braking feel. The truck will often feel slower to accelerate, and braking distance and wheel load change as well. Many owners plan for a regear or a speedometer correction, and they rotate and balance tires more often because the extra weight is noticeable.

  • Check tire clearance at full lock
  • Inspect the spare for clearance
  • Plan for a speedometer correction

Specifications

Brand Daystar
Part number PAPLS616
UPC 618089009182
Lift height 5 inches
Maximum tire diameter 37 inches
Drivetrain and engine 4WD, gasoline
Cab styles Standard, extended and crew cab
Body blocks Fiberglass reinforced nylon
Bumper brackets 3/16-inch thick, laser cut, powder coated
Steering extension CNC machined and zinc plated
Installation time 9 to 10 hours
Made in United States

Vehicle fitment

It fits the 2013 Ram 2500 and the 2013 Ram 3500.

Other Ram model years and the Ram 1500 are not on the list. The fit note names a 3500 with non-radius arm suspension, so check that suspension type before choosing this kit. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Daystar estimates 9 to 10 hours for installation. The steering extension and bumper relocation brackets are part of the kit, so the front end is modified along with the body lift.

What’s included

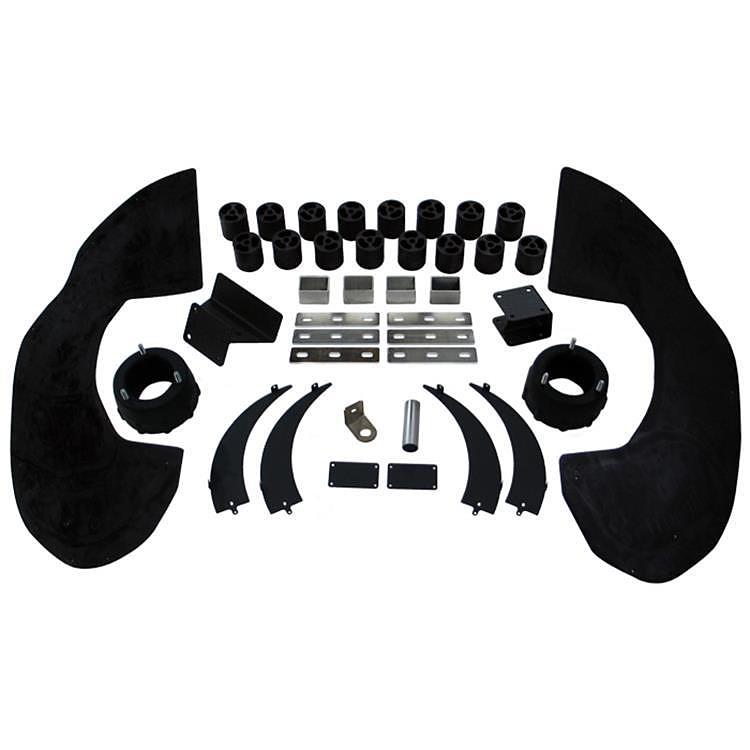

Front urethane coil spring spacers, fiberglass reinforced nylon body blocks, 3/16-inch laser cut bumper relocation brackets, a CNC machined steering extension, extension brackets, urethane Gap Guard wheel well extensions and high strength hardware.

SKU: DAYPAPLS616 Category:

Specification

Shipping weight 28.00 lbs
Package dimensions 42.00 × 25.00 × 11.00 in
brands

Fitment

VehicleYearsTrims
Ram 25002013Big Horn, Laramie, Laramie Longhorn, Lone Star, Outdoorsman, Power Wagon, SLT, ST, Tradesman
Ram 35002013Big Horn, Laramie, Laramie Longhorn, Lone Star, SLT, ST, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the PAPLS616 fit a 2013 Ram 3500?

Yes. It fits the 2013 Ram 3500. A 3500 with non-radius arm suspension is a special case, so confirm the suspension type before ordering.

What is the largest tire this 5-inch Ram lift allows?

It allows the use of up to a 37-inch diameter tire on the factory wheels. The lift itself is 5 inches.

Does this kit work on a crew cab Ram?

Yes. It fits 4WD gasoline trucks, including standard, extended and crew cab models. The non-radius arm suspension case for the 3500 is separate, so check it first.

Will a 37-inch tire affect gearing?

Larger tires turn fewer times per mile, which can make the truck feel slower to accelerate and can throw off speedometer readings. Many owners consider regearing or recalibrating the speedometer when running a tire this much larger.

How do I check a body lift for clearance problems?

Turn the wheels fully lock to lock and inspect the tires against the fenders and bumper brackets. Also check brake lines and wiring for stretch, since the body is raised relative to the frame.
