Pro Comp 6.0″ Radius Arm Lift Kit with PRO-X Shocks – K2185T

Pro Comp Suspension

Shop Ram 3500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2013–2018 Ram 3500.
  • 6.0-inch radius arm lift with a 6–7 inch lift height range
  • Cast and CNC-machined knuckles, laser-cut and robotically welded cross members

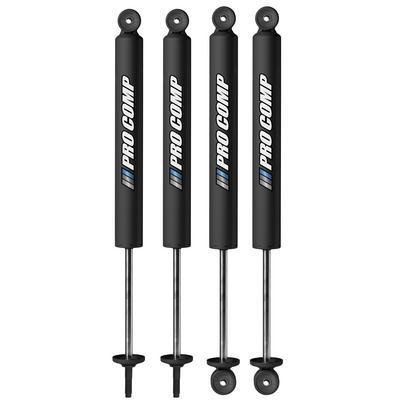

  • PRO-X front and rear shocks, included
  • Part number EXPK2185T (K2185T)

Description

Overview

The Pro Comp EXPK2185T, also written K2185T, is a 6.0-inch radius arm lift kit with PRO-X shocks for the 2013–2018 Ram 3500. It is a direct fit for that truck, with block and U-bolt rear lift components.

Radius arms locate the axle front to back, and the arms are part of this lift. The kit adds longer bump stops and brake line extensions, which the axle needs at its new height. It is sold as a complete radius arm system, with the arms, knuckles and cross members set up together for the new height and steering geometry.

Key features

  • 6.0-inch radius arm lift with a 6–7 inch lift height range
  • Cast and CNC-machined knuckles, per Pro Comp’s description
  • Laser-cut, CNC-formed and robotically welded cross members
  • Brake line extensions, longer bump stops and sway bar drop brackets included
  • PRO-X front and rear shocks, included

Radius arm lift inspection

Radius arm lifts shift the axle’s location, so the arm mounts, knuckles and cross members carry more load than a stock suspension. Check for cracked welds, bent brackets and loose hardware after the first trail trips, and look over the brake lines where they pass the axle for stretching or rubbing.

Bump stops and sway bar drop brackets also deserve a look because they handle travel the stock setup never reached. Confirm the axle does not hit the bump stops under normal driving, and check that the sway bar links move freely. The same checks apply when the truck is loaded for towing.

Owners who add accessories such as winches or heavier bumpers should recheck the arms and mounts, since added weight at the front changes the load path through the radius arms.

Specifications

Brand Pro Comp Suspension
Part number EXPK2185T (K2185T)
Kit type Radius arm lift kit
Kit stage Stage 2
Lift height 6 inches, with a lift height range of 6–7 inches
Front shocks PRO-X
Rear shocks PRO-X
Rear lift method Block and spacer
Rear lift component Block and U-bolt
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

The kit fits the 2013–2018 Ram 3500 in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST and Tradesman trims.

Only the 2013–2018 Ram 3500 is listed, so the 2500, 2019 and newer Ram trucks are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arm kits change the axle’s fore-aft location and the pinion angle, so the driveline and alignment need to be checked after the lift is in.

What’s included

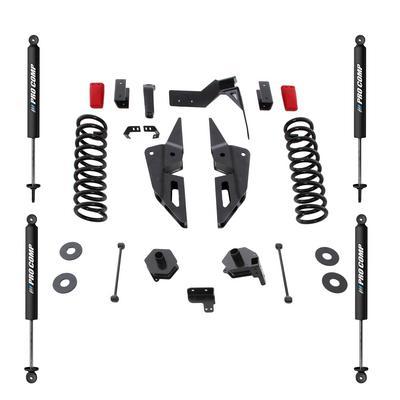

The kit includes the radius arm components, PRO-X shocks, brake line extensions, longer bump stops and sway bar drop brackets. Check the package contents against your installation before starting.

SKU: EXPK2185T Categories: ,

Fitment

VehicleYearsTrims
Ram 35002013–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK2185T fit a 2015 Ram 3500?

Yes. The 2013–2018 Ram 3500 is covered, which includes 2015 trucks. Ram 2500 trucks are not covered by this kit. Confirm fit for your vehicle's year, model and trim before ordering.

Does the kit include brake line extensions?

Pro Comp says brake line extensions, longer bump stops and sway bar drop brackets are included with the kit, along with the cast and CNC-machined knuckles.

What do radius arms do?

Radius arms connect the axle to the frame and control its front to back movement. They are needed on this kit to hold the axle in place at the new height.

Should the brake lines be checked after a radius arm lift?

Yes. Brake line extensions are part of the kit, so they should be checked for tension, chafing and clearance at the axle after installation and at regular service. Look for leaks at the fittings and make sure the lines are not stretched at full droop.
