Overview

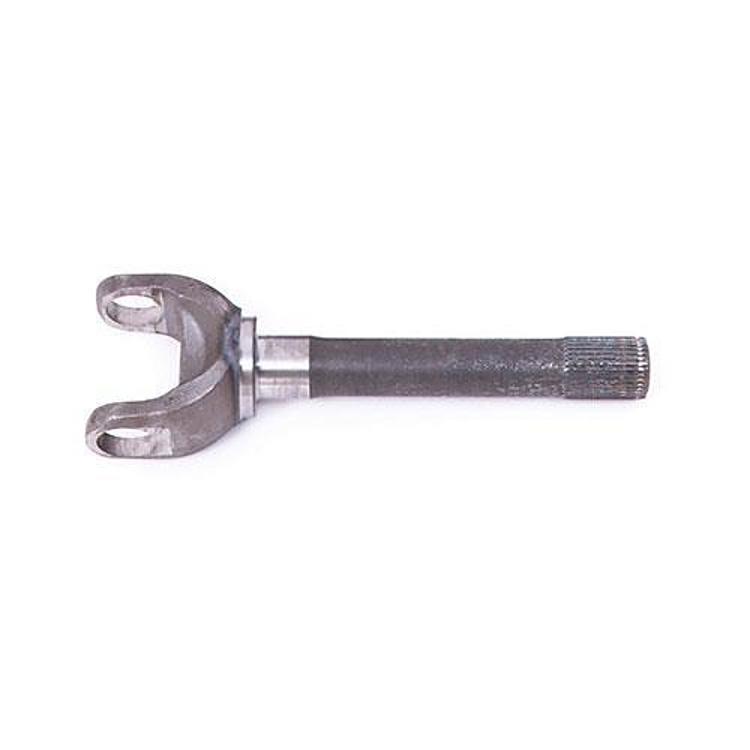

The Dana Spicer 3-82-871 is a front outer stub axle shaft for Dana 60 front axles, with 35 splines at the outer end. Stub shafts connect the hub to the axle, so this part is for owners replacing the outer end of a Dana 60 front axle.
Dana Spicer offers stub axles as a replacement option for aftermarket shafts. No vehicle years or models are named, so match the axle type and spline count before ordering.
Key features
- Front outer stub position on Dana 60 axles
- 35 spline outer end
- Offered as a replacement option for aftermarket shafts
- It is designed for most popular Dana applications.
Outer stub wear and replacement
A front outer stub connects the hub to the axle, so it carries steering and drive loads at the wheel end. Wear usually shows at the splines as rounding or a loose fit inside the hub. Clicking when turning under power, a wheel that wobbles, and grease or fluid contamination are signs the stub needs inspection.
Replacing a stub is often done alongside hub, bearing and seal work, since the axle is already partly apart. Check the hub bore and the retaining hardware for wear, and clean the mating surfaces before assembly. Parts that show heat damage or cracks should not be reused, even if the shaft still turns.
- Check spline wear at the hub
- Inspect the hub bore and retainers
- Replace seals and bearings when opened
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 3-82-871 |
| Axle type | Dana 60 |
| Axle location | Front |
| Shaft location | Outer stub |
| Axle spline | 35 splines |
| Popular axle manufacturer | Dana |
Vehicle fitment
It is designed for most popular Dana 60 applications. Confirm fit for your vehicle’s year, model and trim before ordering.
Matching the axle name alone does not confirm a vehicle. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The outer stub shaft is the only item included. Hardware, seals and bearings are not included.
