Overview

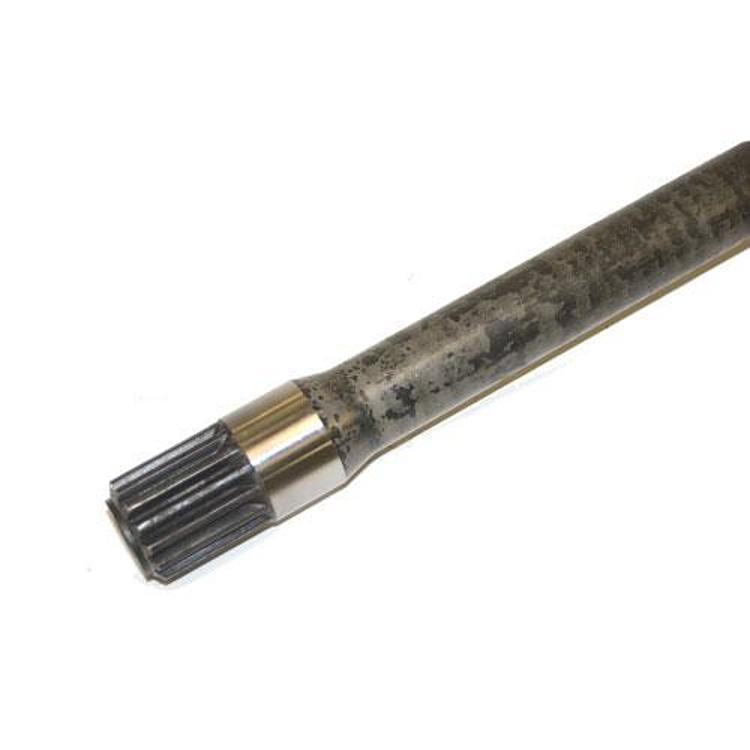

The Dana Spicer 74752X is a passenger side front inner axle shaft for Dana 60 axles, with 15 splines. It is an O.E. style replacement for most popular factory applications.
Shaft position, axle type and spline count are the main match points, since no vehicle years or models are named. Check those three details before ordering.
Key features
- Passenger side inner position
- 15 spline count
- O.E. style replacement design
- Dana 60 front axle type
Spline count and side matching
Spline count decides whether an inner shaft engages the differential side gear and the hub, so matching it is a basic step. A shaft with the wrong count will not seat correctly and can damage the mating splines. Counting the teeth on the old shaft and comparing the side marking before ordering avoids a return.
The passenger side inner position also affects how the shaft sits in the housing. When replacing a shaft, inspect the seal, bearing and differential side gear for wear. Replacing the seal during the job is a common, practical step that prevents leaks after the new shaft is installed.
- Count the splines on the old shaft
- Compare the side marking before ordering
- Inspect the seal bore during the job
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 74752X |
| Axle type | Dana 60 |
| Axle location | Front |
| Shaft location | Passenger side inner |
| Axle spline | 15 splines |
| Popular axle manufacturer | Dana |
Vehicle fitment
It is designed for most popular factory Dana 60 front axle applications. Confirm fit for your vehicle’s year, model and trim before ordering.
A matching axle name is not enough to confirm fitment. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Only the passenger side inner shaft is included. Hardware, seals and bearings are not included.
