Overview

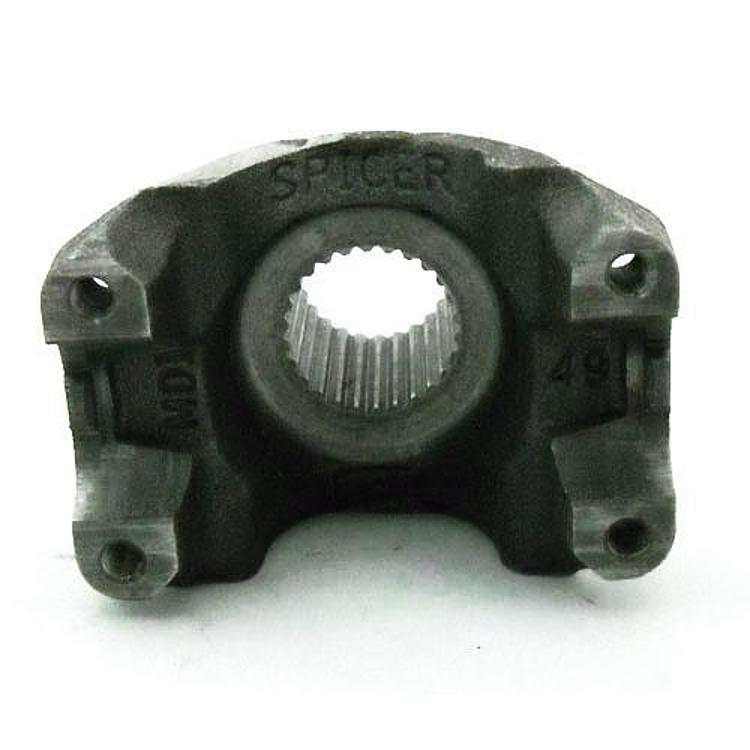

The Dana Spicer 1310 Series pinion yoke, part number 2-4-6561-1, is a strap style pinion yoke for Dana 30 and Dana 44 axles. It works as a replacement for a worn yoke, letting owners repair the driveline with a new part.
It fits front and rear Dana 30 TJ, Dana 30 Standard, Dana 30 Reverse and Dana 44 axles and uses a 1310 Series U-joint.
Key features
- Strap style yoke
- 1310 Series U-joint
- Fits front and rear axle locations.
- Covers Dana 30 TJ, Dana 30 Standard, Dana 30 Reverse and Dana 44 axle types
Understanding strap retainers
A strap style retainer holds the yoke to the pinion with a strap and bolts rather than the U-bolt clamp found on other yokes. The strap must sit flat and the bolts must be tightened in an even pattern, or the yoke can move on the pinion splines. Check the pinion threads and the yoke bore for damage before the new yoke goes on.
Because fit here is by axle type, the axle type and U-joint series matter more than the vehicle. On Dana 30 and Dana 44 axles, use the same retainer style as the existing yoke so the seal and bearing preload stay correct after reassembly. Replace the pinion seal and check the bearing preload when the yoke is replaced.
- Keep the strap and bolts with the old yoke
- Check the pinion threads for damage
- Torque the pinion nut to the correct value
- Recheck the nut after the first drive
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 2-4-6561-1 |
| Retainer style | Strap style yoke |
| U-joint series | 1310 Series |
| Axle location | Front, Rear |
| Axle types | Dana 30 TJ, Dana 30 Standard, Dana 30 Reverse, Dana 44 |
| Fitment (as listed) | Universal fit |
Vehicle fitment
Fit is by axle type rather than vehicle year or model. It covers Dana 30 and Dana 44 types with a universal fit. Check your axle type and U-joint series before ordering.
This yoke’s fit is limited to the Dana 30 and Dana 44 types above, so confirm the axle before ordering for any other axle. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the strap style retainer and 1310 Series U-joint match your current yoke before removing it.
What’s included
Check the package contents against your installation before starting. The pinion nut and seal are not covered here.
