Overview

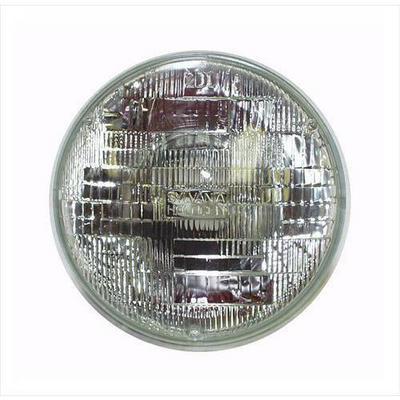

The Crown Automotive sealed beam headlamp, part number CRO154905AA, is a 7 inch round sealed beam headlamp for the 1997–2004 Jeep Wrangler (TJ) and the 2004 Wrangler (LJ) Unlimited. The bulb designation given is H6024BL.
A sealed beam headlamp keeps the reflector, lens and filament in one sealed unit, so the whole unit is replaced when the filament fails. The color is described two ways: clear in the color field and blue in the short copy.
Key features
- 7 inch round diameter
- Sealed beam type
- Bulb designation H6024BL
- Sold individually
- Direct Fit designation for TJ and LJ Wranglers
Sealed beam replacement tips
A sealed beam keeps the reflector, lens and filament in one sealed unit, so the whole headlamp is replaced when one part fails. That makes the beam pattern consistent from the start, but it also means a failed filament costs more than a standard bulb swap. Look at the lens for dark spots, moisture or fogging before deciding whether the unit is the problem.
After fitting a new sealed beam, check the aim on a level surface against a wall. A misaimed beam can blind oncoming drivers or light the road poorly. Clean the lens and the bezel before installing, and make sure the ground connection is tight, since a weak ground can cause dimming that looks like a failing headlamp.
- Check the aim after installation
- Clean the lens before fitting
- Test the ground connection
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | CRO154905AA |
| Diameter | 7 inch |
| Shape | Round |
| Type | Sealed beam |
| Bulb designation | H6024BL |
| Color (color field) | Clear |
| Color (short copy) | Blue |
| Fitment type | Direct Fit |
Vehicle fitment
It fits the 2004 Jeep Wrangler (LJ) Unlimited and the 1997–2004 Jeep Wrangler (TJ) in Rubicon, SE, Sahara, Sport and X trims.
The fitment does not include the 2007–2018 Wrangler (JK) or other models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Road-use rules for headlamp color vary by area, so check them before installing this unit.
What’s included
One sealed beam headlamp, sold individually.
Not included: Check the wiring, bezel and bulb holder against your installation before starting.
