Overview

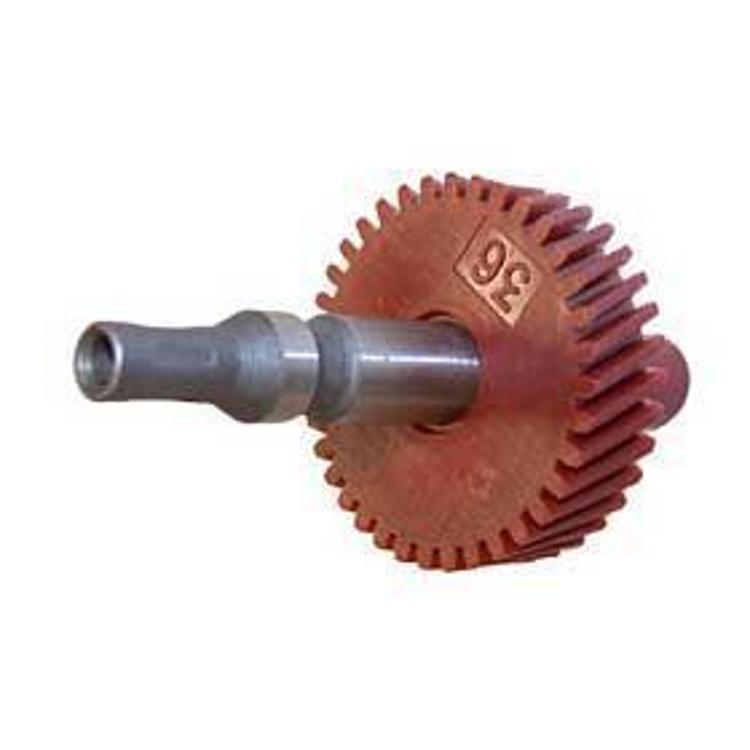

It is a 36-tooth speedometer gear for the NP231 transfer case, finished in brick red. It fits Jeep Cherokee, Grand Cherokee and Wrangler models from the 1990s and 2000s, and it suits setups where a 36-tooth count matches the new tire and gearing.
Changing the tire size or axle gear ratio moves the speedometer reading away from actual speed. The MPH shown will read either high or low until the speedometer drive gear is changed to a tooth count that suits the new setup. The tooth count is the variable that corrects the reading, so Crown’s tire and gear ratio chart is the reference to use.
Key features
- 36 teeth, brick red color
- Made for the NP231 transfer case
- Restores accurate MPH after a tire or axle gear ratio change
- Requires the 6035709 part or the factory O-ring
Reading the speedometer error
A speedometer that reads high or low after a drivetrain change is simply out of step with the new gearing. The gear in the transfer case sets how many signal pulses the speedometer receives per mile, so the number of teeth decides how far the needle drifts. Checking the reading against a GPS app on a measured stretch of road gives a quick sense of how far the error runs.
Gear color is only an identifier, not a measurement. Inspect the teeth for chipping or wear before reuse, and check the O-ring or seal area for old residue that could cause a leak. When the transfer case is opened for any reason, it is a good time to inspect the gear and seal together.
- Match the count to the measured tire size
- Inspect teeth before reuse
- Replace worn O-rings with the gear
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 52067636 |
| UPC | 848399015287 |
| Tooth count | 36 |
| Color | Brick red |
| Transfer case | NP231 |
| Required separately | 6035709 part, unless the factory O-ring is reused |
Vehicle fitment
It fits the 1993–2001 Jeep Cherokee (XJ), 1999–2005 Jeep Grand Cherokee (WJ), 2006 Jeep Grand Cherokee (WK), 1993–1998 Jeep Grand Cherokee (ZJ), 2004–2006 Jeep Wrangler (LJ), 1997–2006 Jeep Wrangler (TJ) and 1993–1995 Jeep Wrangler (YJ). Wrangler JK models are outside this fit. Confirm your vehicle’s year, model and trim before ordering.
The Grand Cherokee entries cover the WJ and ZJ generations; the 2006 WK entry is the only WK year listed.
Installation notes
Check that the transfer case is an NP231 and confirm the tooth count against the tire and gear ratio chart before fitting. The factory O-ring can be reused, or the 6035709 part fitted in its place.
What’s included
The 36-tooth speedometer gear is included. The 6035709 part is not included and must be bought separately unless the factory O-ring is reused.
