Bilstein 5160 Series Reservoir Shock Absorber – 25-187816

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear 5160 Series reservoir shock, part number 25-187816
  • 16mm eye lower mount, bar mount upper
  • Travel 10.05 in; collapsed 14.87 in; extended 24.92 in
  • Lift range 4 in; reservoir mount kit included
  • Confirm fit for your vehicle before ordering.

Description

Overview

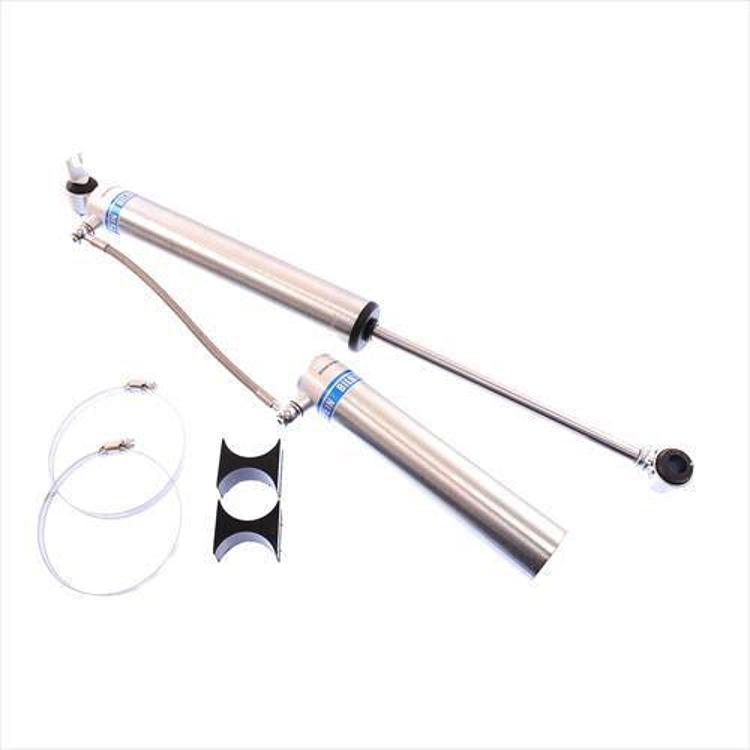

The Bilstein 25-187816 is a rear 5160 Series reservoir shock absorber with a 16mm eye lower mount and a bar mount upper end. It is built for the stock shock mounting location on pickups and SUVs, with no cutting or welding required, but no vehicles are named for this part.

The reservoir gives the shock extra oil capacity, which supports heat dissipation and damping sensitivity under load. Its 14mm shaft, 46mm inside diameter smooth body and mono tube layout pair with travel of 10.05 in, a collapsed length of 14.87 in and an extended length of 24.92 in. The stated lift range is 4 in.

Key features

  • Remote reservoir that increases shock oil capacity.
  • Mono tube layout with digressive valving for immediate full damping.
  • Floating piston in the reservoir for increased wheel travel and shaft movement.
  • 46mm ID smooth body in a non-coilover format.
  • Zinc plated finish under Bilstein’s Triple-C Technology.
  • Reservoir mount kit included with the shock.

Reservoir shock maintenance

Rear reservoir shocks work hard on washboard roads and loaded trips, so inspecting them regularly pays off. Start by checking the body and reservoir for oil seepage, dents and cracks, and look for bushings that have hardened or torn. A worn eye or bar mount can change the shock’s angle and cause uneven wear.

Mounting hardware is often replaced along with the shock. Bushings, sleeves and reservoir clamps wear at the same rate as the shock body, so replacing them during installation avoids a second teardown. Confirm the bar or eye mount matches your axle before tightening, and recheck fasteners after the first few trail runs.

  • Look for oil seepage at the body and reservoir
  • Replace worn bushings with the shock
  • Recheck fasteners after the first trail runs

Specifications

Brand Bilstein
Part number 25-187816
UPC 651860668772
Series 5160 Series
Position Rear
Fitment type Direct Fit
Collapsed length 14.87 in
Extended length 24.92 in
Travel length 10.05 in
Lower mount Eye 16mm
Upper mount Bar Mount
Shaft diameter 14mm
Reservoir Yes
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Finish Zinc plated
Boot included No
Lift height 4 in lift
Hydraulic / gas charged Gas charged
Mounting parts included Reservoir mount kit

Vehicle fitment

It is a direct-fit rear shock with a 4 in lift range. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering, and match the rear shock position to your truck.

Installation notes

Only a reservoir mount kit is included, so the 16mm eye lower mount and bar upper mount need to be matched to your vehicle before installation. Set the reservoir clear of the frame and wheels, then inspect clearance once the truck is back on the ground.

Support the vehicle securely while the stock shock is removed.

What’s included

Reservoir mount kit and detailed instructions.

Not included: Boot, and any additional mounting hardware beyond the reservoir mount kit.

SKU: BIL25-187816 Category:

Specification

Shipping weight 4.62 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

Does the Bilstein 25-187816 fit a particular truck or SUV?

No vehicles are named for part number 25-187816, so confirm fit for your year, make, model and trim. Compare the 16mm eye lower mount and bar upper mount with your current shock's mounts.

What are the travel and length measurements?

Travel is 10.05 in. Collapsed length is 14.87 in and extended length is 24.92 in. The shaft diameter is 14mm, and the body is a 46mm ID smooth body in a non-coilover design.

What hardware comes with this shock?

Only a reservoir mount kit is named as included mounting hardware. Detailed instructions come with it, and the boot is not included, so any other mounting hardware needs to be sourced for your vehicle's setup.

How can I tell if a rear reservoir shock is worn?

Watch for bouncing after bumps, nose-dive or rear sag under braking, and oil on the body. Uneven tire wear and a clunk at the mounts can also point to a worn shock or bushing. Compare the shock against a new unit before deciding.
