Overview

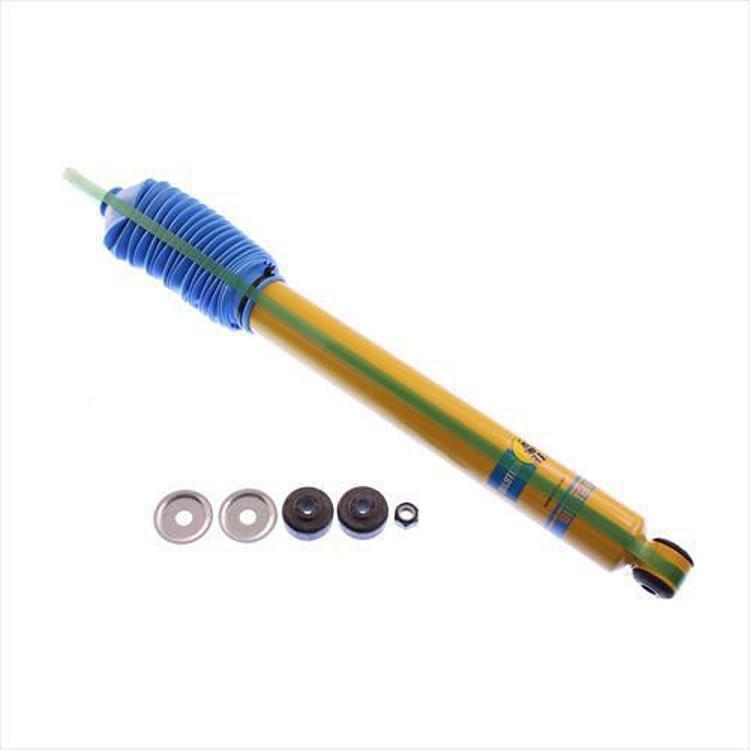

The Bilstein 24-185141 is a heavy duty rear monotube gas-charged shock absorber from the 4600 Series, with a 2 in body diameter and a yellow finish. It is built for vehicles with 0 to 2 in of lift, so lift height is the main setup check. No vehicle is confirmed for this part, so confirm the application before purchase.
The design uses one tube with a dividing piston, which lets oil expand as heat builds and limits foaming and loss of viscosity. The gas charge and heat-shedding body keep damping steady during extended use. The extruded tube holds a tight peak-to-valley tolerance, and the piston head offers separate compression and rebound tuning. Compared with road sensing shocks, this layout has fewer parts and aims for long service life.
Key features
- Heavy duty mono tube body in the 4600 Series
- Gas charged, with a dividing piston for oil expansion
- Built for 0 to 2 in of lift
- Extruded tube with tight tolerance and consistent wall thickness
- Compression and rebound tuned separately at the piston head
- Dust boots included, no reservoir
Matching shocks to your lift
Lift height changes the geometry the shock works in, so the stroke and mount position can differ from a stock setup. A heavy duty monotube body is built for added weight and harder use, which can feel firmer on pavement than a standard shock. Measure the lift on your vehicle before choosing, and check that the shock’s range covers the number you measure.
Once the range is confirmed, look at the damping feel you want. Stiffer damping suits heavy loads and rough trails, while a softer setting suits daily driving. Torque the mounts after the first drive and check the boot for tears, since debris can wear the shaft quickly.
- Measure lift before ordering
- Check mounts after the first drive
- Match damping to typical use
- Inspect boots after off-road trips
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-185141 |
| UPC | 651860412092 |
| Shock series | 4600 Series |
| Position | Rear |
| Type | Heavy duty monotube, gas charged |
| Body diameter | 2 in |
| Lift range | 0 to 2 in lift |
| Reservoir | No |
| Boots included | Yes |
| Finish | Yellow |
| Fitment type | Direct fit |
Vehicle fitment
No vehicle is confirmed for this shock, and only the Direct Fit type is known. Check the rear application against your year, model and trim before buying.
The listed lift range is 0 to 2 in, so a vehicle with more lift falls outside it. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure your vehicle’s lift before choosing this shock, since the listed range stops at 2 in. Heavy duty shocks are usually matched to a specific lift range, so check that range against your setup first.
What’s included
One rear heavy duty shock absorber with dust boots.
Not included: Check mounting hardware needs against your installation before starting.
