Overview

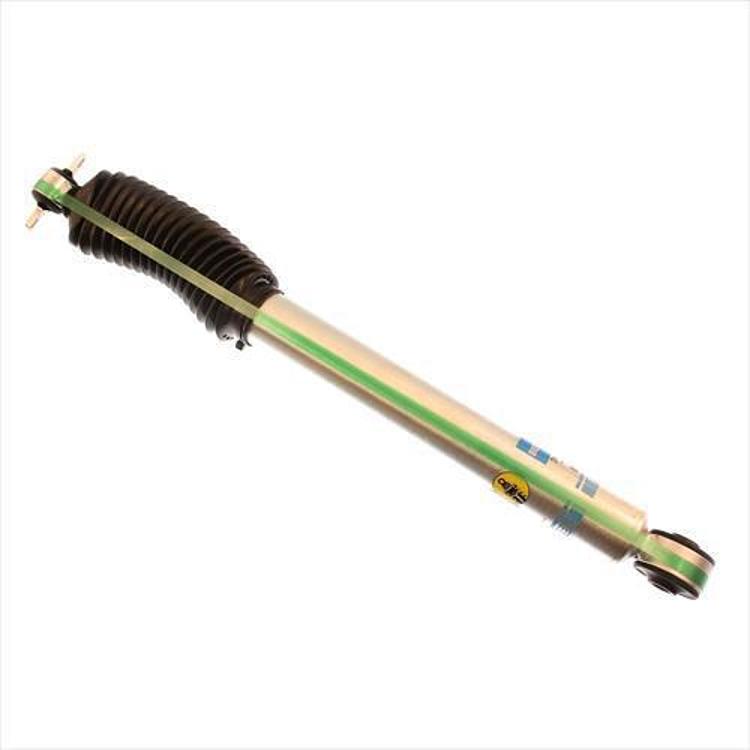

The Bilstein 5100 Series rear shock absorber, part number 24-067379, has an eye lower mount and a bar pin upper mount. It is built for 1988 to 2000 Chevrolet and GMC full-size pickups and SUVs.
The body is a 46mm smooth, non-coilover design with a 14mm shaft, a boot and no reservoir. It is a gas-charged, single-tube shock with self-adjusting deflecting disc valving. The lift rating is w/3 in. lift, so compare it with the lift on your truck before choosing it.
Key features
- Monotube gas pressure construction.
- Self-adjusting deflecting disc valving.
- High-flow piston that Bilstein says reduces harshness.
- Independent rebound and compression tuning.
- Boot included.
Bar pin mounts
Bar pin upper mounts are common on many older Chevrolet and GMC trucks, and they use a pin through a bracket rather than a threaded stem. A bar pin mount can wear a bushing or bracket over time, so check the pin and the bracket for play whenever the shock is removed. The gas-charged monotube body is designed to keep damping steady, but a loose mount will still let the shock knock.
When replacing, confirm that the bracket accepts a bar pin and that the eye lower mount lines up with the axle. Rear shocks on full-size trucks take large loads from the leaf springs, so spring shackles and bushings are often replaced at the same time. Replacing both rear shocks together keeps the axle tracking straight under braking.
- Check the bar pin for wear
- Inspect bracket welds
- Replace shocks in pairs
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-067379 |
| UPC | 651860628974 |
| Series | 5100 Series |
| Position | Rear |
| Collapsed length | 17.28 in. |
| Extended length | 28.29 in. |
| Travel length | 11.01 in. |
| Lower mount | Eye, 14.1mm |
| Upper mount | Bar pin |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | No |
| Gas charged | Yes |
| Finish | Zinc plated |
| Boot | Included |
| Fitment type | Direct fit |
| Lift height | w/3 in. lift |
Vehicle fitment
It fits 1988 to 2000 Chevrolet and GMC full-size trucks. Chevrolet covers the C1500, K1500, K2500 and K3500 with Silverado and Scottsdale trims, the Blazer for 1992 to 1994, the Tahoe for 1995 to 1999 and Suburbans for 1992 to 1999. GMC covers Sierra C1500, K1500, K2500 and K3500 models, the 1989 GMC 2500 Sierra, Suburbans for 1992 to 1999 and the Yukon for 1992 to 1999.
The Blazer is listed only for 1992 to 1994, and the Yukon only for 1992 to 1999, so model years outside those ranges are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The upper mount is a bar pin rather than a stem, so confirm that the bracket on your truck accepts a bar pin. The 14.1mm eye lower mount must also match. Avoid cutting open the gas-charged body or applying heat during installation.
What’s included
One Bilstein 5100 Series rear shock absorber with a boot.
Not included: mounting hardware, brackets and lift kit components.
