Bilstein 5160 Series Reservoir Shock Absorber – 25-177435

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 5160 Series reservoir shock absorber, part number 25-177435, for pickups and SUVs
  • Installs in the stock shock mounting location with no cutting or welding required
  • Collapsed length 15.59 in., extended length 26.61 in., travel length 11.02 in.
  • Mono tube design with remote reservoir, 14mm shaft and zinc plated finish
  • Upper mount kit and reservoir mount kit included; boot not included
  • Vehicle fitment not listed; lift height given as w/4 – 6 in. Lift

Description

Overview

The Bilstein 5160 Series Reservoir Shock Absorber (part number 25-177435) is a gas-charged reservoir shock for pickups and SUVs. It installs in the stock shock mounting location with no cutting or welding, and its remote reservoir adds shock oil capacity for heat dissipation and damping sensitivity.

The shock is a mono tube design with a 46mm smooth body (non-coilover), a 14mm shaft and a zinc plated finish. Its lift height is 4 to 6 in., and the reservoir mounting configuration is designed for each vehicle application. Vehicle-specific fitment is not confirmed for this part number, so check the application before installing.

Key features

  • Installs in the stock shock mounting location on pickups and SUVs, with no cutting or welding required
  • Remote reservoir increases shock oil capacity for greater heat dissipation and damping sensitivity
  • Floating dividing piston sits in the reservoir, which Bilstein says allows increased wheel travel and more shaft movement
  • Digressive valving system provides full damping capability immediately
  • Mono tube design, which Bilstein describes as industry leading
  • Triple-C Technology finish, which Bilstein says provides easy care and lasting good looks

Choosing a shock for a lift

Lift height changes the shock’s working range, so a shock suited to one range may not suit another. Compare the collapsed and extended lengths to the new ride height before buying, and confirm the shaft will not bottom out at full compression. A shock that is too short can reduce travel and cause harsh rebound.

Direct fit shocks depend on the mounting locations of the original vehicle, so verifying the stem and eye sizes against your current parts is a sensible first step. Many owners replace shocks alongside springs, control arms and bushings when lifting, because those parts share the load. Keep the gas charge in mind, since pressurized shocks should not be cut or heated.

  • Compare lengths to the new ride height
  • Check the eye size against your bracket
  • Replace bushings along with the shock
  • Recheck ride height after the first drives

Specifications

Brand Bilstein
Part number 25-177435
UPC 651860803418
Shock series 5160 Series
Position Front
Fitment type Direct Fit
Internal design Mono tube
Body design 46mm ID smooth body (non-coilover)
Shaft diameter 14mm
Lower mount Eye 12.1mm
Upper mount Stem
Collapsed length 15.59 in.
Extended length 26.61 in.
Travel length 11.02 in.
Lift height w/4 – 6 in. Lift
Hydraulic / gas charged Gas charged
Reservoir Yes
Finish Zinc plated
Boot included No
Mounting parts included Upper mount kit and reservoir mount kit

Vehicle fitment

No vehicle year, make, model or chassis is confirmed for part number 25-177435. It is a direct fit for pickups and SUVs with a 4 – 6 in. lift. Confirm the application against your truck before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The shock installs in the stock shock mounting location with no cutting or welding. The upper mount kit and reservoir mount kit are included, and detailed instructions come in the box. Follow them for reservoir placement, which is specific to each vehicle application.

What’s included

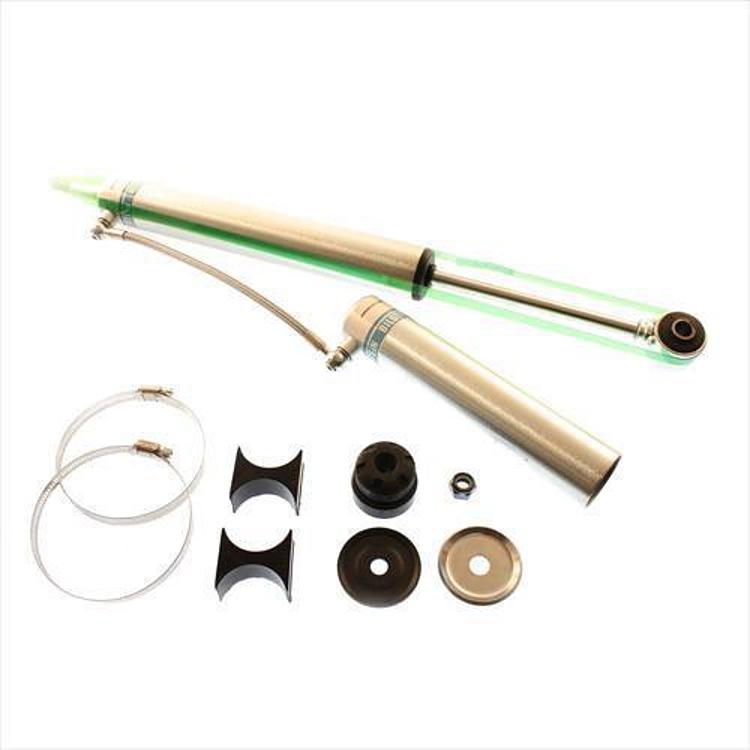

The shock comes with the upper mount kit, the reservoir mount kit and detailed instructions.

Not included: The boot is not included.

SKU: BIL25-177435 Category:

Specification

Shipping weight 4.62 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

Will the Bilstein 25-177435 fit my pickup or SUV?

No vehicle is confirmed for part number 25-177435, so a match cannot be verified here. It is a direct fit for pickups and SUVs with a 4 - 6 in. lift. Confirm fit for your truck's year, make, model and trim before installing.

Does the Bilstein 5160 Series reservoir shock need cutting or welding?

No. It installs in the stock shock mounting location without cutting or welding. The upper mount kit and reservoir mount kit are included, along with detailed instructions for reservoir placement.

What are the collapsed, extended and travel lengths of part 25-177435?

The collapsed length is 15.59 in., the extended length is 26.61 in. and the travel length is 11.02 in. The lower mount is an eye (12.1mm) and the upper mount is a stem, with a 14mm shaft.

Is a boot included with the 5160 Series reservoir shock?

No. A boot is not included with this shock. The upper mount kit and reservoir mount kit come in the package, so check the box contents against your installation before starting.

Are gas charged shocks safe to remove and dispose of?

Gas charged shocks hold internal pressure, so do not cut, heat or puncture the body. Take a used shock to a shop or disposal site that accepts automotive parts, and wear eye protection while removing it.
