Overview

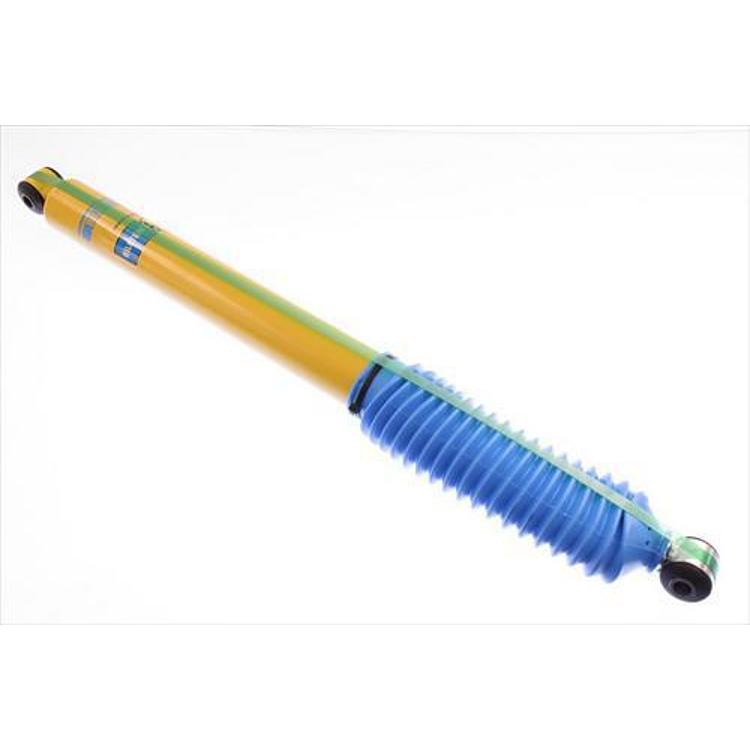

The Bilstein 24-239455 is a rear 46mm monotube shock absorber from the 5100 Series, designed as a direct fit for lifted trucks and SUVs. Bilstein rates it for a 0 to 1 in. lift range.
A velocity sensitive digressive piston responds to changing road conditions, and each 5100 unit is tuned for its application. The design supports ride quality and handling for lifted trucks and SUVs, and the monotube body is built for consistent fade free performance.
Key features
- Rear position
- Velocity sensitive, digressive piston
- Monotube design for consistent fade free performance
- Gas-charged body
- Rated for a 0 to 1 in. lift range
Matching damping to lift
A rear shock controls how the axle and body settle after bumps, braking and load changes. On a lifted truck or SUV, the suspension geometry changes, so shock travel and mounting angle also change. A digressive piston adjusts how firmly the shock resists movement as speed increases, which helps keep the ride controlled over both small and large bumps.
When choosing a rear shock, match it to how the vehicle is used. Daily driving, towing and trail runs ask different things of damping. Keep the lift in mind as well, since a setup outside the intended range can change how the shock loads and how far it extends.
Related parts often get replaced at the same time. Worn leaf springs, bushings and bump stops change how much work the shock does. Inspect those parts when rear shocks are replaced, and keep tire pressure at the correct level so the damping setup performs as intended.
- Check rear suspension height before buying
- Inspect bushings and bump stops when replacing shocks
- Replace rear shocks in pairs for even handling
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-239455 |
| UPC | 651860745473 |
| Shock series | 5100 Series |
| Position | Rear |
| Fitment type | Direct Fit |
| Lift height | 0 to 1 in. lift |
| Hydraulic / gas charged | Gas charged |
Vehicle fitment
It is rated for a 0 to 1 in. lift range for lifted trucks and SUVs. Confirm your suspension height and fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The package contains one rear shock absorber.
