Overview

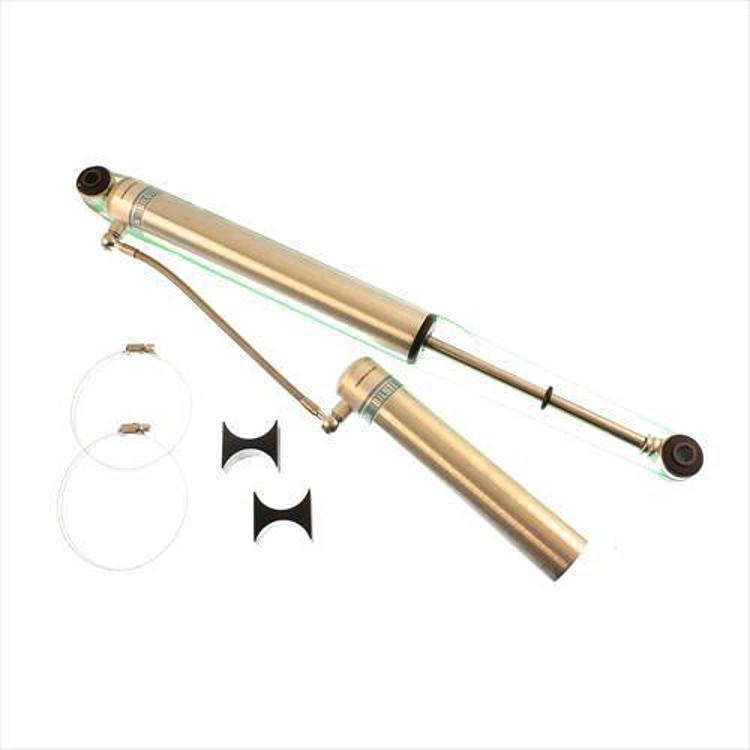

The Bilstein 25-176414 is a 5160 Series rear reservoir shock absorber for the 1999–2006 Chevrolet Silverado 1500 and GMC Sierra 1500, and the 2007 Chevrolet Silverado 1500 Classic and GMC Sierra 1500 Classic. It has a 46mm ID smooth non-coilover body, 14.4mm eye mounts at both ends and 11.03 in of travel.
Bilstein positions the 5160 Series reservoir design for the stock shock location on pickups and SUVs. The remote reservoir adds shock oil capacity, and the floating dividing piston sits in the reservoir to allow more shaft movement. This rear shock also has a Triple-C Technology finish, which the company says makes it easier to care for.
Key features
- Remote reservoir for increased shock oil capacity.
- Floating dividing piston in the reservoir for more shaft movement.
- Digressive valving system that Bilstein says gives full damping quickly.
- Triple-C Technology finish.
- Mono tube body in a 46mm ID smooth construction.
- Reservoir mounting kit and detailed instructions included.
- It is a rear position shock.
Rear shock wear signs
Rear shocks carry much of the load on a pickup bed, especially when hauling or towing, so they tend to wear faster than front units. Early signs include a bouncy rear end after bumps, a tail that dips or sways in turns, and oil on the shock body. Uneven rear tire wear can also point to a damper that is no longer controlling the axle.
Eye mounts rely on bushings that can crack or harden over time. Inspect them when the shock is off, and replace them if they show cracking or play. Rear shocks are often replaced in pairs so the two sides match, and checking the rear springs at the same time helps prevent uneven ride height.
- Rear bounce that continues after a bump
- Oil on the shock body
- Cracked or loose eye bushings
- Uneven rear tire wear
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-176414 |
| UPC | 651860661957 |
| Shock series | 5160 Series |
| Position | Rear |
| Collapsed length | 16.14 in |
| Extended length | 27.17 in |
| Travel length | 11.03 in |
| Lower mount | Eye 14.4mm |
| Upper mount | Eye 14.4mm |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | Yes |
| Finish | Zinc plated |
| Lift height | 0–2 in lift |
| Charge | Gas charged |
Vehicle fitment
It fits the 1999–2006 Chevrolet Silverado 1500 in the Base, Hybrid, LS, LT, WT and Z71 trims, and the 2007 Chevrolet Silverado 1500 Classic in the Hybrid, LS, LT and WT trims.
It also fits the 1999–2006 GMC Sierra 1500 in the Base, HT, Hybrid, SL, SLE, SLT and WT trims, and the 2007 GMC Sierra 1500 Classic in the Hybrid, SL, SLE, SLT and WT trims.
Models from 2008 and later, and any trucks outside the 1500 line, are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The reservoir mounting kit comes with detailed instructions, so follow them closely. Because the lift range is 0 to 2 in, have the alignment checked once the shock is installed.
What’s included
The package includes the reservoir mounting kit and detailed instructions. No boot or other hardware is named.
