Bilstein 7100 Series Reservoir Shock Absorber – AK7114SB

Bilstein

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 7100 Series reservoir shock absorber
  • Gas charged monotube with Schrader valve and 2 inch body
  • Owner rebuildable
  • No vehicle list provided; check length and mounting

Description

Overview

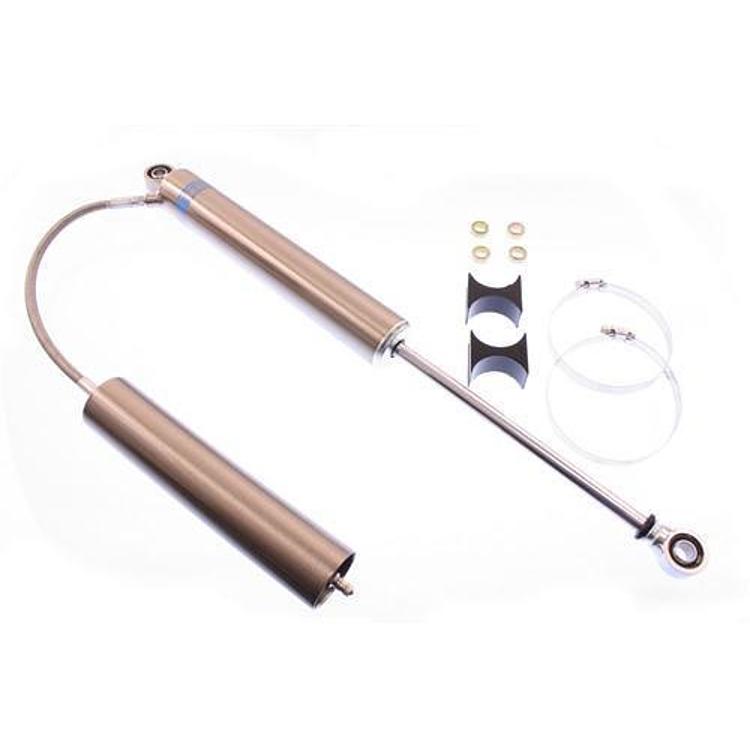

The Bilstein AK7114SB is a 7100 Series reservoir shock absorber. It is a gas charged monotube shock with a Schrader valve and a universal fit design.

The 7100 Series is designed for unmodified trucks, prerunner trucks, limited race buggy applications, sand buggies and other recreational off-road vehicles. It is available with or without a remote reservoir and is owner rebuildable for long-term high performance damping.

Key features

  • Monotube gas pressure construction
  • Self-adjusting deflecting disc valving
  • 2 inch diameter shock body
  • High-flow piston reduces harshness
  • Schrader valve shocks with dividing piston
  • Owner rebuildable
  • Series available with 8, 10, 12 and 14 inches of travel
  • Choice of valvings

Reservoir shocks and rebuilds

A reservoir shock moves gas and oil storage into a separate canister, which gives the shock body more room for internal pistons and helps keep damping steady on long runs. That layout suits trucks and buggies that see rough terrain, sand or repeated high-speed hits, but the hose and reservoir mount need to be planned during installation.

Owner rebuildable shocks reward regular inspection. Check the shaft for scratches and the seals for weeping, and keep a note of valving and travel so any rebuild returns the shock to its original setup. Before buying, confirm the mounting style, the collapsed and extended lengths, and the clearances around the tires and frame.

  • Inspect the shaft and seals after rough use
  • Keep a record of valving and travel
  • Plan reservoir mounting before installation

Specifications

Brand Bilstein
Part number AK7114SB
UPC 790832511569
Product type Reservoir shock absorber
Series 7100 Series
Construction Monotube gas pressure
Shock body diameter 2 inch
Valving Self-adjusting deflecting disc
Valve Schrader valve with dividing piston
Hydraulic / gas charged Gas charged
Series travel options 8, 10, 12 and 14 inches
The shock is designed to fit universally, with no specific vehicle list. Universal fit

Vehicle fitment

No vehicle list is provided for the Bilstein AK7114SB. The manufacturer data labels it universal fit, but shocks are chosen by mounting style, travel, length and ride height for the vehicle.

Confirm the travel, collapsed and extended lengths, and mounting style against your vehicle before ordering. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Suspension parts affect steering, braking and handling, so professional installation suits most owners. Use the correct hardware, torque each fastener to the specified value, and re-check fasteners after the first miles of driving. After installation, confirm brake line, driveshaft and tire clearance, and check local rules on lift. Ride height changes can shift headlight aim, so check it afterward.

What’s included

One Bilstein 7100 Series reservoir shock absorber, part number AK7114SB, without mounting hardware.

Not included: Mounting hardware, bushings and sleeves; check what your installation requires.

SKU: BILAK7114SB Category:

Specification

Shipping weight 3.81 lbs
Package dimensions 37.00 × 7.00 × 2.00 in
brands

Questions & Answers

What is the Bilstein AK7114SB?

The Bilstein AK7114SB is a 7100 Series reservoir shock absorber. It is a gas charged monotube shock with a 2 inch diameter body and a Schrader valve fitment.

What vehicles is the Bilstein 7100 designed for?

It is designed for unmodified trucks, prerunner trucks, limited race buggy applications, sand buggies and other recreational off-road vehicles. Confirm fit for your vehicle's year, model and trim before ordering.

Can the Bilstein 7100 shock be rebuilt?

Yes. The 7100 Series is owner rebuildable, which supports long-term high performance damping. Rebuild parts and steps are not covered here, so confirm the parts you need before opening the shock.

How much travel does the AK7114SB have?

Confirm it before ordering. The 7100 Series is offered with 8, 10, 12 and 14 inches of travel, so match travel to your suspension and build.

How often should a shock like this be serviced?

Inspect it at regular service intervals and sooner after hard off-road use. Look for oil seepage, a bouncy ride, uneven tire wear and noise over bumps. Rebuild or replace the shock when any of these signs appear, and check the reservoir hose at the same time.
