Overview

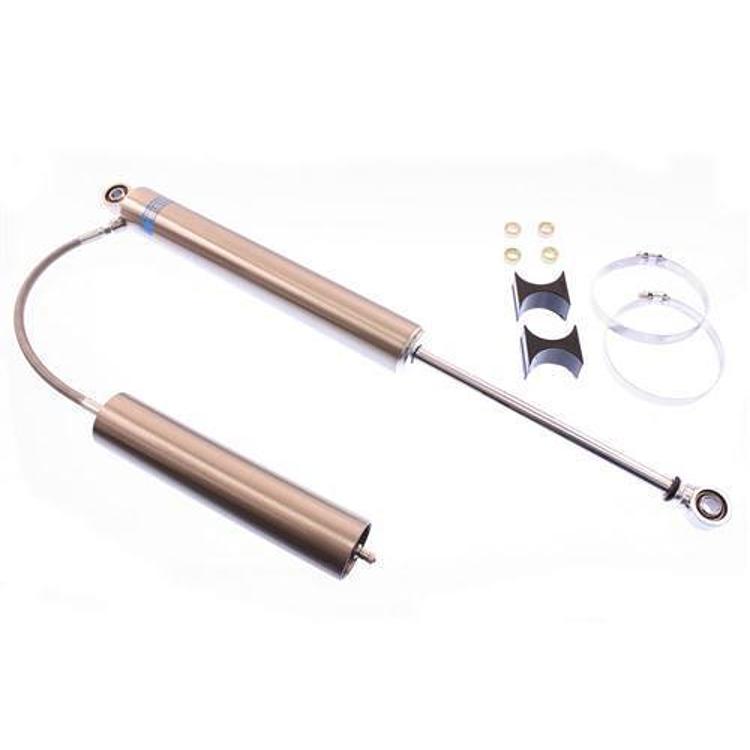

The Bilstein AK7108R06 is a 7100 Series reservoir shock absorber for off-road trucks, prerunner trucks, limited race buggy applications, and sand buggies. Bilstein designed the 7100 line to be effective on stock trucks as well as other recreational off-road vehicles.
This version comes with a remote reservoir and a Schrader valve. The 7100 Series is completely owner rebuildable, so the shock can be serviced over a long service life. Confirm the vehicle years, make and model before ordering, since none are attached to this part number.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston that reduces harshness
- Choice of valvings
- Schrader valve shock with dividing piston
- Owner rebuildable design
Owner service and upkeep
Owner rebuildable shocks reward regular maintenance. Check the body for oil seepage, the reservoir hose for chafing, and the Schrader valve for air loss after each trip. A shock that loses gas pressure feels soft and can foam, which reduces damping on rough terrain, so catching it early protects the rest of the suspension.
Rebuilding is most practical when the shock is removed for a service interval anyway. Keep a clean bench, set the reservoir upright, and follow the order of disassembly carefully. Replace seals and wear items together rather than one at a time, and keep track of valving settings so the shock returns to its intended tune.
Heat and grit shorten seal life, so rinse off mud after desert runs and keep the body clear of hot exhaust components.
- Inspect the shaft for scoring or rust
- Check reservoir hose clamps and mounts
- Recharge only with the correct gas and pressure
Specifications
| Brand | Bilstein |
|---|---|
| Part number | AK7108R06 |
| UPC | 70000623778 |
| Shock series | 7100 Series |
| Shock body diameter | 2 in |
| Series travel options | 8 in, 10 in, 12 in, 14 in |
| Charge | Gas charged |
| Reservoir | Remote reservoir (named in title) |
Vehicle fitment
Universal fit is a general tag, not a vehicle match. Shock absorbers are sized for particular vehicles, so compare the travel length and mounting points with your vehicle before choosing it.
This is the reservoir version. The 7100 Series also comes without a reservoir under other part numbers, such as AK7108S06. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Plan reservoir hose routing and mounting hardware before starting the installation.
