Bilstein 5100 Series Shock Absorber – 24-185745

Bilstein

$106.69In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 4:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

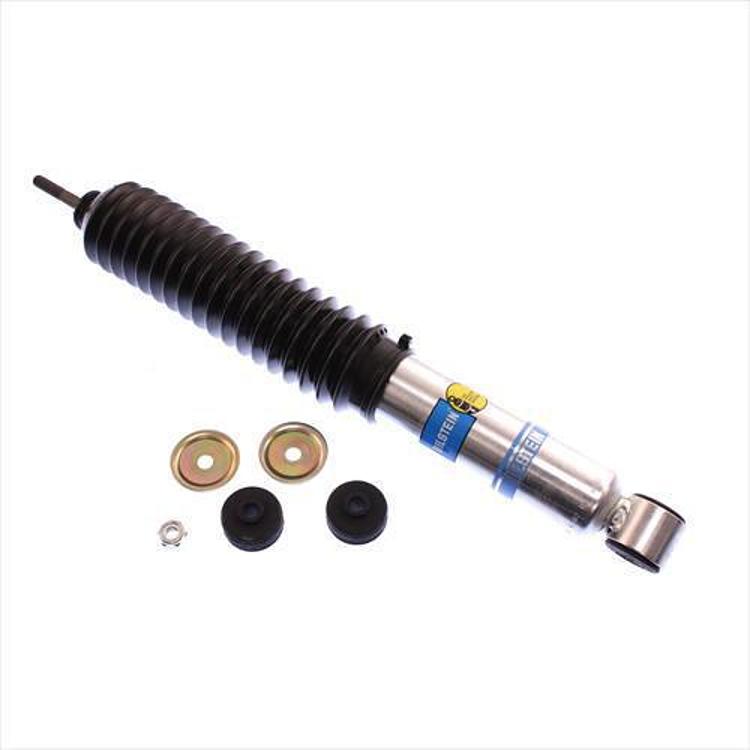

  • Bilstein 5100 Series front shock absorber, part 24-185745
  • 46mm ID smooth body with 6.28 in. travel length
  • Eye 16mm lower mount and stem upper mount
  • Lift height rating 3 – 4 in. lift; boot included
  • No vehicle fitment listed; check specifications

Description

Overview

Built around Bilstein’s 5100 line for lifted trucks, Jeeps and prerunners, the 24-185745 is a front monotube gas shock absorber with 6.28 in. of travel. It is rated for a 3 – 4 in. lift and uses an eye lower mount with a stem upper mount.

Bilstein’s single-tube, high gas pressure construction is meant to deliver consistent, fade-free performance and long service life. The shock has a 46mm ID smooth body and a 14mm shaft, with a collapsed length of 11.67 in. and an extended length of 17.95 in.

Key features

  • Self-adjusting deflecting disc valving
  • High-flow piston that Bilstein says reduces harshness
  • Independent rebound and compression tuning
  • Larger working piston area for damping control on large diameter tires
  • Designed for specific manufacturer lift kits with the stock O.E.M. mounting layout
  • Boot included

Choosing the right setup

Lift height and shock length work together. A shock sized for a 3 – 4 in. lift covers a set range of suspension movement, so measure your truck’s ride height and compare the collapsed and extended lengths with your current unit before buying. Mount style matters too: the eye lower mount and stem upper mount must line up with the brackets already on the vehicle.

The boot shields the shaft seal from grit and water, so inspect it for cracks after trail use and replace it if it splits. Because the unit is gas charged, damaged shocks should go to a qualified shop. Trail driving on large tires adds load to the mounts, so check bolts and bushings after the first few runs.

  • Inspect the boot for cracks
  • Check eye bushings for play
  • Re-torque mounting bolts after the first trail runs

Specifications

Brand Bilstein
Part number 24-185745
UPC 651860453873
Shock series 5100 Series
Position Front
Collapsed length 11.67 in.
Extended length 17.95 in.
Travel length 6.28 in.
Lower mount Eye 16mm
Upper mount Stem
Shaft diameter 14mm
Reservoir No
Body design 46mm ID smooth body, non-coilover
Internal design Monotube
Finish Zinc plated
Boot included Yes
Lift height rating 3 – 4 in. lift
Charge type Gas charged
Fitment type Direct fit

Vehicle fitment

Fit depends on the year, model and trim of your truck or Jeep, so confirm fit for your vehicle before ordering. The 5100 unit is designed for lifted trucks, Jeeps and prerunners and is built around the stock O.E.M. mounting layout.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm that the eye lower mount and stem upper mount line up with your truck’s existing mounting points before fitting, since the stock mounting layout is what this unit is built around. Because the gas charge is under pressure, remove and dispose of the unit through a qualified shop.

What’s included

One 5100 Series front shock absorber with its boot. Check the package contents against your installation before starting.

SKU: BIL24-185745 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Questions & Answers

Is the Bilstein 24-185745 a front or rear shock?

Front. This is a front position shock with 6.28 in. of travel, a 46mm ID smooth body and a 14mm shaft. Its collapsed length is 11.67 in. and its extended length is 17.95 in.

Will the Bilstein 24-185745 fit my vehicle?

Fit depends on your truck's year, model and trim, so confirm those before ordering. The shock is built around the stock O.E.M. mounting layout, so check that your lift height and mounting points suit it.

What lift height is this shock rated for?

It is rated for a 3 - 4 in. lift. Match that rating to your truck's lift before choosing this shock.

Does it include a boot and what is the mount style?

Yes, boot included. The lower mount is an eye with 16mm and the upper mount is a stem, so compare these with your existing mounting points before installation.

How can I tell a shock needs replacing?

Look for oil leaks on the shaft or body, a bouncy ride after bumps, uneven tire wear and a shock that feels loose when pushed by hand. Cracked boots and worn mounts also point to replacement. Inspect both front shocks when one looks worn, since they work as a pair.
