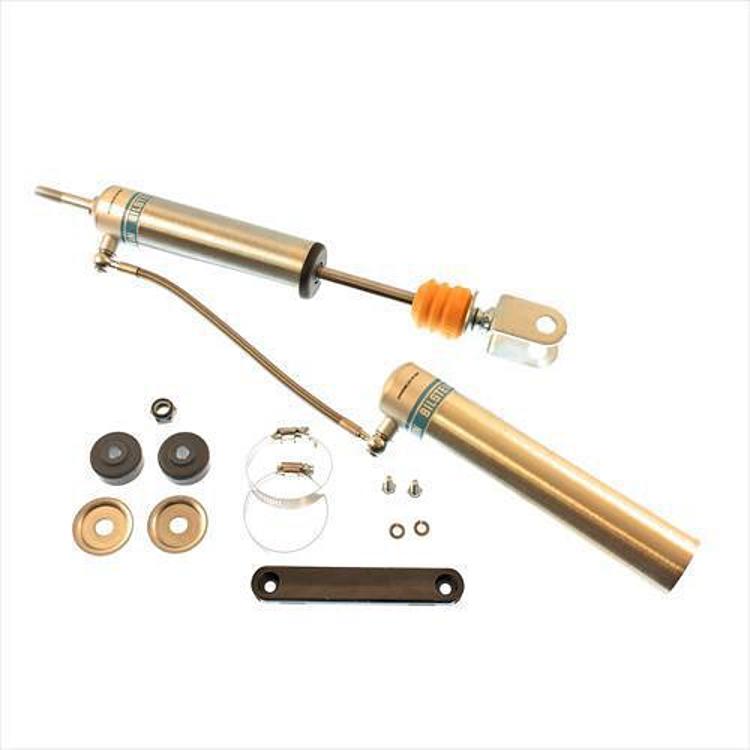

Bilstein 5160 Series Reservoir Shock Absorber – 25-176407

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 25-176407, 5160 Series reservoir shock absorber
  • Designed to install in the stock shock mounting location on pickups and SUVs
  • Collapsed length 12.83 in, extended length 16.3 in, 3.47 in travel
  • Includes upper mount kit and reservoir frame mount kit

Description

Overview

The Bilstein 25-176407 is a 5160 Series reservoir shock absorber with a clevis lower mount, a stem upper mount and a 46mm ID smooth non-coilover body. It installs in the stock shock mounting location on pickups and SUVs without cutting or welding.

The shock uses a mono tube design with a remote reservoir that increases oil capacity for heat dissipation. The floating dividing piston in the reservoir allows more shaft movement. It has a digressive valving system that gives full damping right away and a Triple-C Technology finish.

Key features

  • Remote reservoir for more shock oil capacity.
  • Reservoir mounting configuration set for each vehicle application.
  • Digressive valving system for full damping.
  • Floating dividing piston in the reservoir for more shaft movement.
  • Triple-C Technology finish.
  • Upper mount kit and reservoir frame mount kit included.
  • Mono tube internal design.

Mounting and clearance checks

Reservoir frame mounts hold the reservoir in a fixed location, so clearance matters more than on a standard shock. Before installing, check the reservoir against the frame rail, the exhaust and any skid plate, and look for pinch points at full compression. A reservoir that rubs will wear through its hose or body over time.

The upper stem and lower clevis mounts work with bushings and pins, which wear with age and off-road use. Replacing worn bushings during the install keeps the shock’s movement aligned with its design. Stock shock locations vary by truck, so a bracket that fit one vehicle may need adjustment on another.

  • Inspect the reservoir hose for chafing
  • Check the clevis pin and bushings for play
  • Tighten mounts evenly and firmly
  • Recheck fasteners after the first few drives

Specifications

Brand Bilstein
Part number 25-176407
UPC 651860661810
Shock series 5160 Series
Position Front
Collapsed length 12.83 in
Extended length 16.3 in
Travel length 3.47 in
Lower mount Clevis
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Reservoir Yes
Finish Zinc plated
Boot included No
Mounting parts Upper mount kit and reservoir frame mount kit
Lift height 0–2.5 in lift
Charge Gas charged

Vehicle fitment

No specific truck or SUV is named for this shock. It is designed for the stock shock mounting location on pickups and SUVs, and the reservoir mount is configured for each vehicle application.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Bilstein says no cutting or welding is required for this shock, and the reservoir mounting kit comes with detailed instructions. Follow them for the reservoir frame mount, and have the alignment checked after the change in lift height.

What’s included

The package includes the upper mount kit, the reservoir frame mount kit and detailed instructions.

Not included: boot.

SKU: BIL25-176407 Category:

Specification

Shipping weight 4.62 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

No vehicle is named for the Bilstein 25-176407, so does it fit a Chevrolet or GMC?

Make and model fit cannot be confirmed here. It is designed for pickups and SUVs, with a reservoir mount set for each application, so check the Chevrolet or GMC year and model before ordering.

Does the 25-176407 need cutting or welding?

No. It installs in the stock shock mounting location without cutting or welding. The upper mount kit and reservoir frame mount kit are included, with detailed instructions.

How much travel does the 25-176407 have?

It has 3.47 in of travel, with a collapsed length of 12.83 in and an extended length of 16.3 in. The lower mount is a clevis and the upper mount is a stem.

Why are reservoir frame mounts worth checking during installation?

Reservoir frame mounts hold the reservoir in position, so loose or bent brackets can allow contact with other parts. Tighten fasteners firmly and recheck them after the first few drives.
