Overview

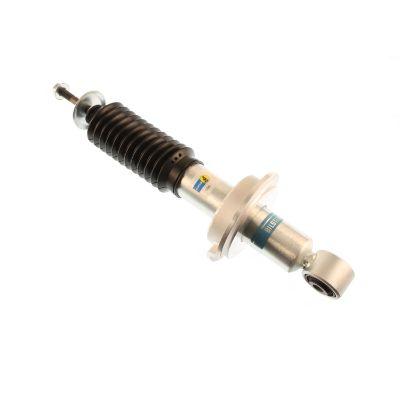

The Bilstein 5100 Series 24-268189 is a front shock absorber for the 2017–2024 Nissan Titan. It replaces the factory front shock and adds up to 2.2 inches of front lift, which is set by moving the spring seat along the grooves in the shock body.
The shock is built for trucks and SUVs with a front OE coilover-style suspension. The 46mm body is zinc plated and has snap-ring grooves for the spring seat. It uses a monotube design with a digressive piston and is gas-charged with no external reservoir.
Because the lift depends on the spring seat position, the shock works with the factory springs rather than replacing them. A front lift of this size changes the ride height at the front wheels, so the new shock should be fitted with the rest of the front suspension in a set-up that leaves the alignment and steering geometry in spec.
Key features
- Front lift of up to 2.2 in with OE springs
- Snap-ring grooved coilover body with a 46mm diameter
- Monotube, gas-charged construction
- Collapsed length 10.94 in and extended length 15.31 in
- Zinc-plated finish with no external reservoir
Choosing a lift height
Front lift on a shock with an adjustable spring seat is a trade-off between ride height and available travel. A higher seat groove raises the front end, but it also reduces the compression stroke available before the bump stops engage. Before choosing a groove, think about how much of the travel you use on rough trails and whether the stock bump stops still clear at the new height. Matching the groove to a realistic lift keeps the shock working inside its range.
Because the factory springs stay in place, the spring rate does not change, so the truck keeps its original load capacity and feel. Front lift also shifts caster and camber, which is why an alignment check belongs in every installation. Once the truck has been driven for a few days, look for oil on the shock body and listen for knocks at the top mount.
- Check upper mount bushings for cracks or collapse
- Inspect the body for oil seepage after the first drives
- Replace worn bump stops when the shock is out
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-268189 |
| Shock series | 5100 Series (ride height adjustable) |
| Position | Front |
| Shock type | Monotube, coilover, gas-charged |
| Body diameter | 46mm |
| Front lift | Up to 2.2 in |
| Collapsed length | 10.94 in |
| Extended length | 15.31 in |
| Travel | 4.37 in |
| Reservoir | No |
| Finish | Zinc plated |
| Fitment type | Direct fit |
Vehicle fitment
It is a front shock for the 2017 through 2024 Nissan Titan, covering the Titan model years in that range.
Other Nissan trucks, the Titan XD and Titan models before 2017 are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One front shock absorber, sold as a single unit.
Installation notes
Set the spring seat to the groove that matches the lift you want, then check the front end alignment and headlight aim after the new ride height settles.
