Overview

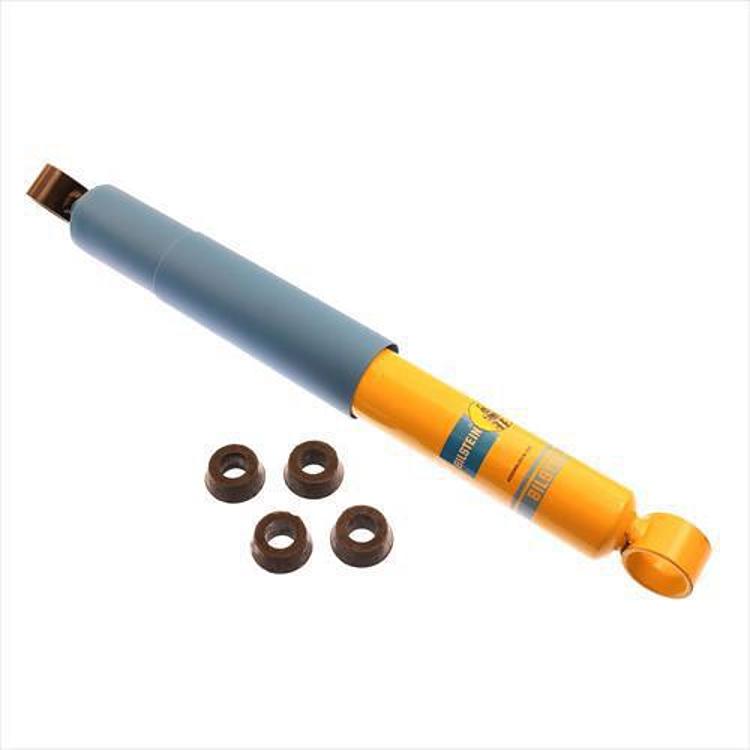

The Bilstein 24-184977 is a 4600 Series monotube gas-charged rear right shock absorber with a 2 inch body diameter and a yellow finish. It fits the 1995-2004 Toyota Tacoma.
The monotube gas-charged design moves heat from the oil to the outer shock body, where it dissipates. A dividing piston lets the oil expand as it heats, which is designed to prevent aeration and foaming and keeps damping consistent as temperatures rise.
The tube is formed by a special extrusion method with a tight peak-to-valley tolerance and consistent wall thickness. The piston head lets compression and rebound damping be tuned independently, and the shock is set for 0 in. lift or drop.
Key features
- Monotube, gas-charged design
- Bilstein 4600 Series, rear right position
- 2 inch body diameter
- Yellow finish
- Boots included
- No reservoir
- Built for stock height (0 in. lift or drop)
- Seamless extruded tube
Replacement considerations
A rear shock works with the springs, axle and bushings to control how the truck settles and rebounds. A worn shock can cause a bouncy ride, uneven tire wear, or a rear end that drops more on one side. Those signs usually show up after many miles, and they are easy to miss when the change happens slowly.
Before replacing one side, check the shock mounts, bushings and any damaged boots, since these affect how the new shock performs. Replacing both rear shocks together keeps damping even from side to side. Keep the old shock until the new one is confirmed to fit.
- Check mounting bushings and hardware
- Look for leaks along the body
- Match both rear shocks when replacing
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-184977 |
| UPC | 651860403212 |
| Product type | Monotube shock absorber |
| Series | 4600 Series |
| Position | Rear right |
| Body diameter | 2 in |
| Type | Monotube, gas charged |
| Finish | Yellow |
| Reservoir | No |
| Boots | Included |
| Lift height | w/0 in. lift/drop |
| Fitment type | Direct fit |
Vehicle fitment
The stored manufacturer fitment list for the Bilstein 24-184977 covers the 1995-2004 Toyota Tacoma (Base, Limited, Pre Runner, S-Runner, SR5).
Only the 1995-2004 Toyota Tacoma is covered. Later Tacoma generations and other Toyota trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Suspension, steering and axle components are safety-critical, so professional installation is recommended. Follow the installation instructions and torque every fastener to the specified values.
- Support the vehicle on rated jack stands on level ground; never work under a vehicle held only by a jack.
- Inspect nearby bushings, mounts and hardware while the area is open, and replace anything worn.
- Re-check fastener torque after the first miles of driving, and again at regular service intervals.
- Have the alignment checked after any suspension or steering work.
- Confirm tire, brake line and wiring clearance through the full range of suspension travel before driving normally.
What’s included
One Bilstein 4600 Series shock absorber with boots.
Not included: Shocks for the other positions and mounting hardware.
