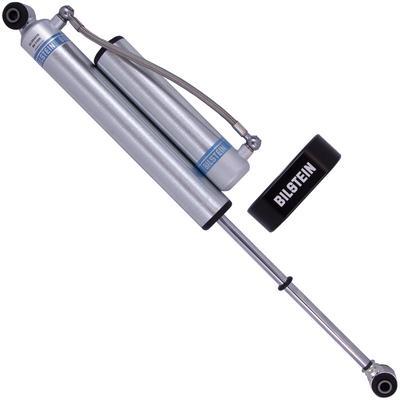

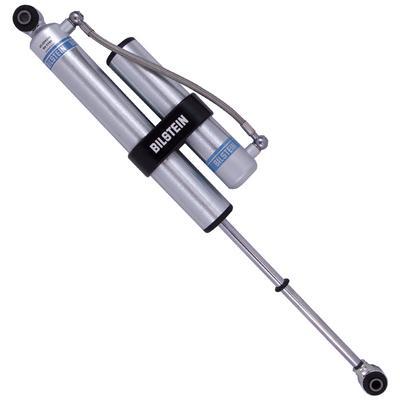

Bilstein 5160 Series Remote Reservoir Shock Absorber – 25-294316

Bilstein

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear remote reservoir shock for 2019–2023 Ford Ranger
  • Separate reservoir adds cooling capacity and wheel travel
  • Monotube design with velocity sensitive digressive valve settings
  • 360 degree swivel banjo hose fitting on each shock

Description

Overview

The Bilstein 5160 Series 25-294316 is a rear remote reservoir shock absorber for the 2019–2023 Ford Ranger. The reservoir is a separate chamber connected to the shock body by a hose, which increases cooling capacity and wheel travel compared with a traditional shock absorber.

The shock is a monotube design, which Bilstein says gives consistent fade-free performance. Its valve settings are velocity sensitive and digressive, and they are tuned for each specific application. Each unit is fitted with a 360 degree swivel banjo hose fitting that Bilstein describes as a clean, low profile installation.

This shock is a direct fit for lifted trucks and SUVs, and the position is rear. Confirm the installed length against the shock you are replacing before ordering, and compare the mounting points at the same time.

Key features

  • Remote reservoir for increased cooling capacity
  • Monotube design for consistent damping
  • Velocity sensitive digressive valve settings
  • 360 degree swivel banjo hose fitting
  • Rear position

Ranger rear shock setup

On a pickup like the Ranger, the rear shocks work hardest when the bed is loaded or the truck is towing over ground that is not smooth. A remote reservoir gives the oil a larger space to sit in, so the damper is less likely to overheat during a long descent with weight in the back. Owners who tow on hills or drive quickly over washboard gravel will notice the difference.

Before fitting a rear shock on a Ranger, look at the lower eyelet and upper stud, since worn bushings can shift the angle of the damper and wear it unevenly. Route the reservoir hose away from the exhaust, brake lines and the spare tire carrier. If the old shock shows oil on the body, a dented reservoir, or a hose with cracked ends, replace it together with the other rear unit so the pair damps the same way.

  • Check the rear bushings for cracks while the shock is off
  • Keep the reservoir clear of the exhaust and brake lines
  • Tighten the mounts once the suspension is loaded

Specifications

Brand Bilstein
Part number 25-294316
Shock series 5160 Series
Position Rear
Shock type Remote reservoir, monotube
Hose fitting 360 degree swivel banjo
Gas charge Gas charged
Fitment type Direct fit

Vehicle fitment

It is a rear remote reservoir shock for the 2019 through 2023 Ford Ranger.

Ford Ranger models before 2019, and Ranger-based or other Ford trucks outside this list, are not covered. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One rear remote reservoir shock absorber.

Installation notes

The reservoir hose needs a clear route away from moving parts, so plan where the reservoir will sit before you tighten the mounts.

Fitment

VehicleYearsTrims
Ford Ranger2019–2023Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 25-294316 fit a 2021 Ford Ranger?

Yes. It is a rear remote reservoir shock for the 2019 to 2023 Ford Ranger, so a 2021 model is covered. Confirm the rear position before ordering.

What does the remote reservoir add to this shock?

The separate reservoir adds cooling capacity and wheel travel compared with a traditional shock absorber. The shock body connects to the reservoir by a hose.

Are the mounts on this shock OEM style?

Mount style should be checked rather than assumed. Compare the top and bottom mounting points with your current rear shock before ordering the 25-294316, and confirm they line up with the original location on your Ranger.

Do the rear shocks need to be replaced in pairs?

Replacing both rear shocks together is the usual approach, since mismatched dampers can make the rear of the truck feel uneven over bumps. If only one side is worn, check the other unit for the same signs before deciding. Keep the replacement on the same side and position as the shock it replaces.

What wears out on a remote reservoir shock first?

The hose fittings, the reservoir seal and the shaft seal are common wear points. Oil on the body, a soft or bouncy rear end, and clunks over bumps are typical signs. Inspect the fittings and hose at each service, and keep the hose free of abrasion.
