Overview

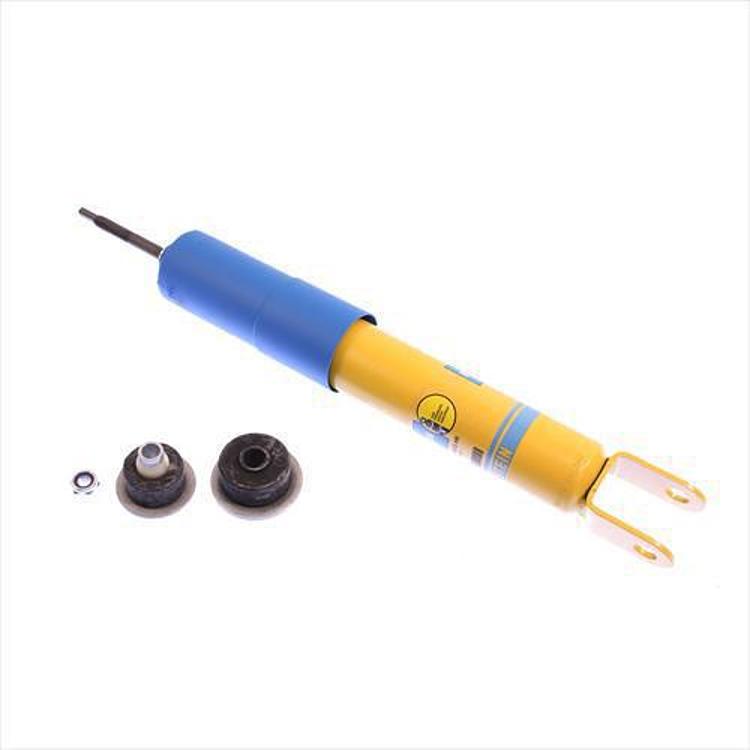

The Bilstein 4600 Series Shock Absorber, part number 24-187091, is a yellow monotube gas charged shock with a 2 in body diameter and boots included. It fits the 2006–2010 Hummer H3 in Alpha, Base, Championship Series and X trims, and the 2009–2010 Hummer H3T in Alpha and Base trims. It is a front position direct fit shock with a 0 in lift/drop rating.
The monotube design moves heat from the oil through the outer surface of the shock body, where it dissipates more efficiently. A dividing piston lets the oil expand as temperatures rise, which helps prevent aeration (foaming) and loss of viscosity, so damping stays consistent as the shock heats. The tube is formed by a special extrusion process aimed at tight tolerances and even wall thickness, and the seamless tube supports strength and heat dissipation.
The piston head is built to tune compression and rebound damping separately. It uses fewer parts than most twin tube and road sensing shocks, which supports long service life.
Key features
- 2 in body diameter monotube design
- Gas charged monotube construction with a dividing piston for oil expansion
- Heat transfers from the oil through the outer surface of the shock body
- Piston head allows independent tuning of compression and rebound damping
- Digressive piston design with fewer parts than most conventional twin tube and road sensing shocks
- Seamless tube with consistent wall thickness
- Boots included
- Yellow finish with no reservoir
Monotube shock basics
A monotube shock keeps the damping oil and gas in one tube, with a dividing piston separating them. That layout lets the oil expand as it heats without the foaming that can reduce damping, which is one reason many owners of heavier trucks choose this design over a twin tube. When one shock is replaced, the other shocks on the same axle are worth checking so both sides damp evenly.
Gas charged shocks carry internal pressure, so keep the body intact during removal and disposal. Look for oil seepage around the shaft seal, a clunk or knock over bumps, uneven tire wear, or a body that keeps bouncing after a dip. Those signs point to worn damping, and replacing the shock is the usual fix.
- Oil seepage at the shaft seal
- Knocking or clunking over bumps
- Rebound bounce that continues after a dip
- Cupped or uneven tire wear
- Replace shocks in pairs on the same axle
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187091 |
| UPC | 651860598437 |
| Series | 4600 Series |
| Body diameter | 2 in |
| Type | Monotube |
| Charge | Gas charged |
| Finish | Yellow |
| Reservoir | No |
| Boots included | Yes |
| Position | Front |
| Fitment | Direct Fit |
| Lift/drop | 0 in lift/drop |
Vehicle fitment
The manufacturer fitment list covers the 2006–2010 Hummer H3 in Alpha, Base, Championship Series and X trims, and the 2009–2010 Hummer H3T in Alpha and Base trims.
The list does not include the Hummer H2 or any other Hummer model not named above. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
It is a direct fit shock with a 0 in lift/drop rating, so it is not a lift shock. Check ride height and shock mounting after installation. Gas charged shocks are pressurized, so do not cut or heat the body during removal or disposal.
What’s included
Boots are included, and a reservoir is not. Check the package contents against your installation before starting, including mounting hardware and bushings.
Not included: A reservoir, since this shock has none. Check mounting hardware against your installation before starting.
