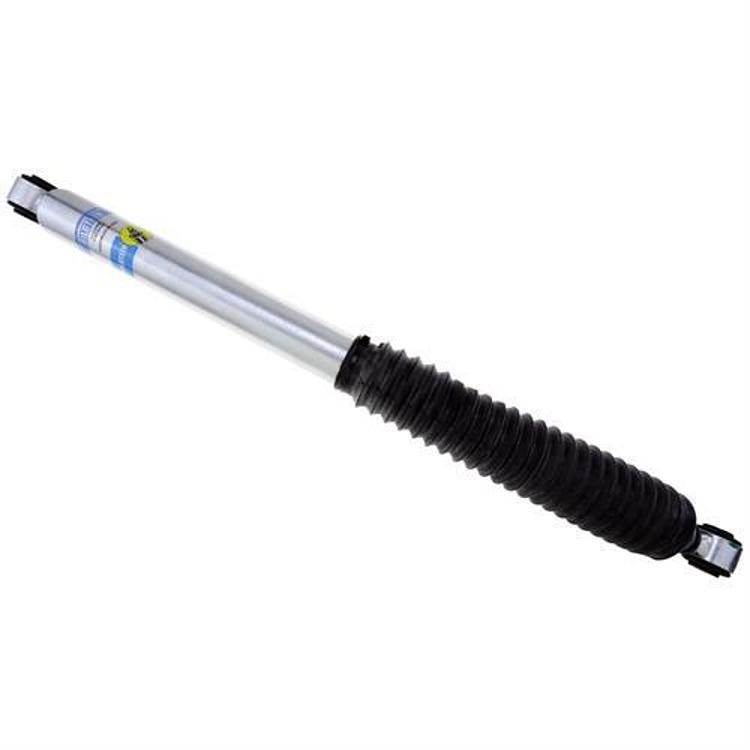

Bilstein 5100 Series Shock Absorber – 33-238555

Bilstein

Shop Ram 3500 Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2013–2018 Ram 3500 per the manufacturer fitment list (Big Horn, Laramie, SLT, ST and other trims)
  • Rear 5100 Series mono tube shock absorber, 46mm smooth body, non-coilover
  • Part number 33-238555, direct fit, rated for stock height up to a 1 in. lift
  • Collapsed length 18.33 in, extended length 29.88 in, travel length 11.55 in
  • Boot included, no reservoir

Description

Overview

The Bilstein 33-238555 is a 5100 Series rear shock absorber for the 2013–2018 Ram 3500, based on the manufacturer fitment list. It is a mono tube, non-coilover shock with a 46mm smooth body, a 14mm shaft and a zinc plated finish, and it is rated for stock height up to a 1 in. lift.

A mono tube damper uses a single pressure tube with one piston, which is the internal design Bilstein gives for this shock. Bilstein says its dampers are meant to improve ride control and comfort on trucks, vans and SUVs. This unit has no reservoir and includes a boot. Its collapsed length of 18.33 in, extended length of 29.88 in and travel of 11.55 in are set out in the specifications below, so you can compare them with the shock you are replacing.

Key features

  • Mono tube internal design
  • 46mm ID smooth body, non-coilover
  • Rear position, direct fit
  • Rated for stock height up to a 1 in. lift
  • Boot included, no reservoir

Matching shock length and lift

Before fitting a replacement, compare its collapsed and extended lengths with the shock you are removing. Those two measurements set how far the shock can extend and compress, so a mismatch can limit suspension travel or put the shock under strain. Measuring the old unit with the truck supported gives you a clear reference.

This is a mono tube design, which means it uses a single pressure tube and one piston. Without a separate reservoir, the unit is simpler in layout, but the body and the boot should be kept clean. Dirt on the piston rod can wear seals over time, so inspect the boot for tears whenever the suspension is serviced.

Because the rating is for stock height up to a modest lift, a taller lift may need a different shock. Check the suspension height before installation and recheck the alignment after any change in ride height.

Specifications

Brand Bilstein
Part number 33-238555
UPC 651860741741
Shock series 5100 Series
Position Rear
Fitment type Direct fit
Lift height w/0 – 1 in. lift
Collapsed length 18.33 in
Extended length 29.88 in
Travel length 11.55 in
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Reservoir No
Finish Zinc plated
Boot Included

Vehicle fitment

The shock fits 2013–2018 Ram 3500 in these trims: Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST and Tradesman. It is a direct fit replacement for those trucks.

Other Ram models are not covered, and it is rated for stock height up to a 1 in. lift. Check fit against your vehicle’s year, model and trim before buying.

Installation notes

Bilstein rates this shock for stock height up to a 1 in. lift, so check your truck’s suspension height before fitting it. Compare the collapsed and extended lengths with the shock being removed, since no other mounting dimensions are listed. Support the truck securely on stands before removing any rear shock.

What’s included

One Bilstein 5100 Series rear shock absorber with its boot.

SKU: BIL33-238555 Category:

Specification

Shipping weight 6.00 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Ram 35002013–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the Bilstein 33-238555 a front or rear shock?

Rear. It is a rear 5100 Series shock, and it is a direct fit unit for the 2013–2018 Ram 3500 in the trims listed. Front shocks are not covered by this part.

Does the Bilstein 33-238555 fit the 2013–2018 Ram 3500?

Yes. It fits the 2013–2018 Ram 3500 in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST and Tradesman trims. Other Ram models are not covered, so confirm your exact trim before installing.

What lift height is this shock rated for?

Bilstein rates it for w/0 - 1 in. lift, meaning stock height up to a 1 in. lift. The rating does not cover taller lift kits, so do not assume it works on a truck with a taller lift.

Why does a shock without a reservoir matter for upkeep?

A shock without a reservoir is a single-tube design, so it does not carry a separate gas and oil chamber. Keep the body clean and inspect the boot, since dirt on the piston rod can wear seals and reduce damping over time.
