Overview

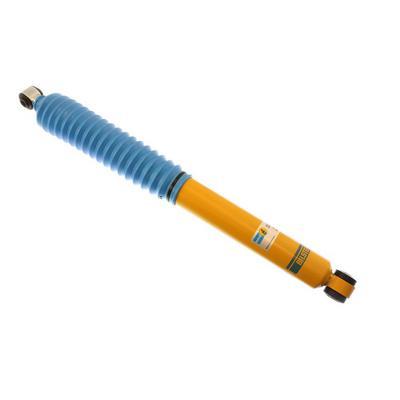

The Bilstein 4600 Series rear shock, part number BIL24-185158, is a gas charged monotube shock with a 2 inch body diameter, boots included and a yellow finish. It is a direct fit for the 1975 to 1980 Dodge D200 in Base and Custom trim, the 1981 to 1993 Dodge D250 and D350 in Base trim, and the 1972 to 1980 Dodge D300 in Base, Custom and Pickup Base trim.
The monotube design carries heat from the oil to the outer surface of the body, which helps the shock shed heat and keep its performance on full-size vehicles.
A dividing piston lets the oil expand as the temperature climbs, so foaming and loss of viscosity are prevented. The piston head is designed to tune compression and rebound independently, which Bilstein says gives optimum ride comfort and performance.
The tube is made by a special extrusion method for a tight peak-to-valley tolerance and consistent wall thickness. The seamless design is strong and long lasting.
Key features
- Rear position
- Gas charged monotube design
- 2 inch body diameter
- Boots included
- No external reservoir
- Yellow finish
- Dividing piston and separate compression and rebound tuning
Rear shocks on full-size trucks
Full-size trucks put more load on the rear suspension, especially when hauling or towing, so the rear shocks work harder on every bump. A monotube design with a dividing piston keeps the oil volume steady as the shock warms, which helps the damping stay consistent on longer runs. Worn rear shocks often cause rear end bounce, sway over uneven roads and a loose feel when the bed is loaded.
Rear shocks are usually replaced in pairs so both sides damp the same way. Check the mounts and the rear springs before installing, since heavier spring loads and older bushings can change how the new shock feels. Matching the shock to the exact truck body style and trim helps avoid mismatched parts.
- Confirm the body style before ordering
- Inspect rear spring sag
- Check mounts and bushings for wear
Specifications
| Brand | Bilstein |
|---|---|
| Part number | BIL24-185158 |
| Shock series | 4600 Series |
| Position | Rear |
| Shock type | Monotube, gas charged |
| Body diameter | 2 inch |
| Reservoir | None |
| Boots | Included |
| Finish | Yellow |
| Fitment | Direct fit |
Vehicle fitment
It fits 1975 to 1980 Dodge D200 Base and Custom models; 1981 to 1993 Dodge D250 and D350 Base models; and 1972 to 1980 Dodge D300 Base, Custom and Pickup Base models.
The list does not include the Dodge Ram 1500 from 1994 onward, the D-series trucks of other years, or the Dakota and Durango. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Rear shocks are generally fitted in pairs. Check the length and the mounts against the rear springs before installing, since full-size trucks often have heavier spring loads.
What’s included
The product is one rear monotube shock with boots, under part number BIL24-185158.
