Overview

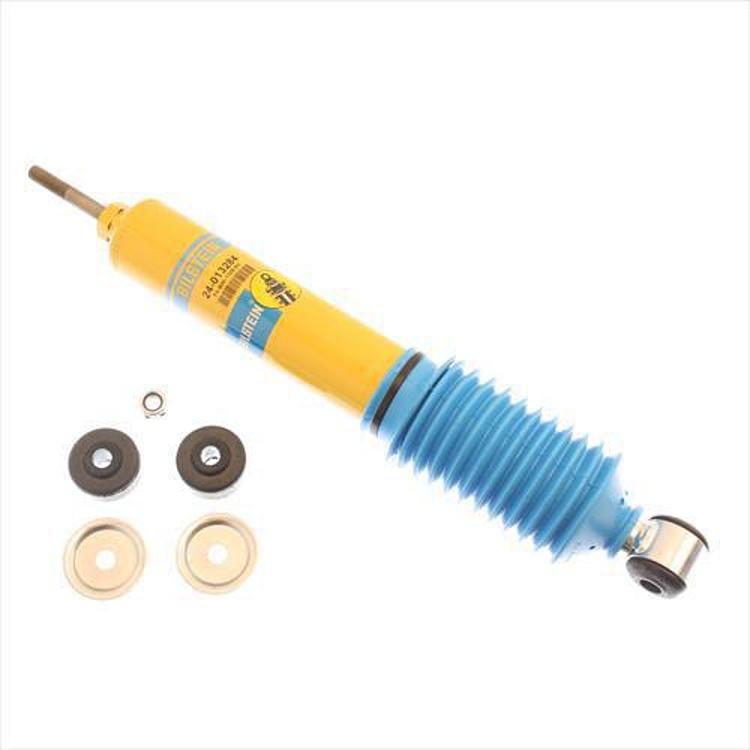

The Bilstein 24-013284 is a front shock absorber in the 4600 Series. It is a gas-charged monotube with a 2 in body diameter and a yellow finish, and it is a direct fit design. Confirm fit for your year, make, model and trim before ordering.
The core of this design is a patented monotube with a gas charge. Heat from the damping oil travels to the outer surface of the shock body, where it dissipates. A dividing piston lets the oil expand as temperatures climb, which helps prevent foaming and viscosity loss so the shock keeps its damping as it heats. The tube is extruded to hold a tight peak-to-valley tolerance and consistent wall thickness.
The piston head allows compression and rebound damping to be tuned independently. The design uses fewer parts than many conventional twin tube and road sensing shocks, which supports durability and long service life. Boots are included with this unit.
Key features
- Gas-charged monotube body in the Bilstein 4600 Series
- Dividing piston that accommodates oil expansion as heat builds
- Heat passes from the oil to the outer surface of the shock body
- Extruded tube with consistent wall thickness and tight tolerances
- Piston head with independently tuned compression and rebound damping
- Boots included, no reservoir
How monotube shocks handle heat
A monotube shock keeps the oil and the gas under pressure in one tube with the piston, rather than sending the oil through a separate reservoir. That layout gives the damping oil a direct path to the outer body, where the heat can leave into the air. Keeping the oil cool and stable is what lets a shock hold its damping on long descents or repeated hard hits.
When choosing a replacement, match the mounting style and stroke to the shock being replaced. Front shocks work with steering and suspension geometry, so a new unit should be checked against the steering linkage and the lower and upper mounts before the vehicle is driven. Rebound and compression settings also interact with spring rate, so changing springs may call for a different damper.
Signs of a worn shock include oil on the body, a bouncing feel after bumps, and uneven tire wear. Inspect the boot for tears, since dirt and water entering the shaft shorten the life of the seals.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-013284 |
| UPC | 651860658087 |
| Shock series | 4600 Series |
| Position | Front |
| Body diameter | 2 in |
| Type | Monotube |
| Gas charge | Gas charged |
| Finish | Yellow |
| Reservoir | No |
| Boots included | Yes |
| Fitment type | Direct fit |
| Lift height | 0 in. (no lift or drop) |
Vehicle fitment
No vehicle is named for part number 24-013284, and the manufacturer fitment list has no entries for it. The Direct Fit label describes how the shock mounts, but it does not identify a model, year or trim.
Because this unit is labeled for the front position, match it to a front mounting location only. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Boots are included.
Not included: Mounting hardware, to be checked before installation
