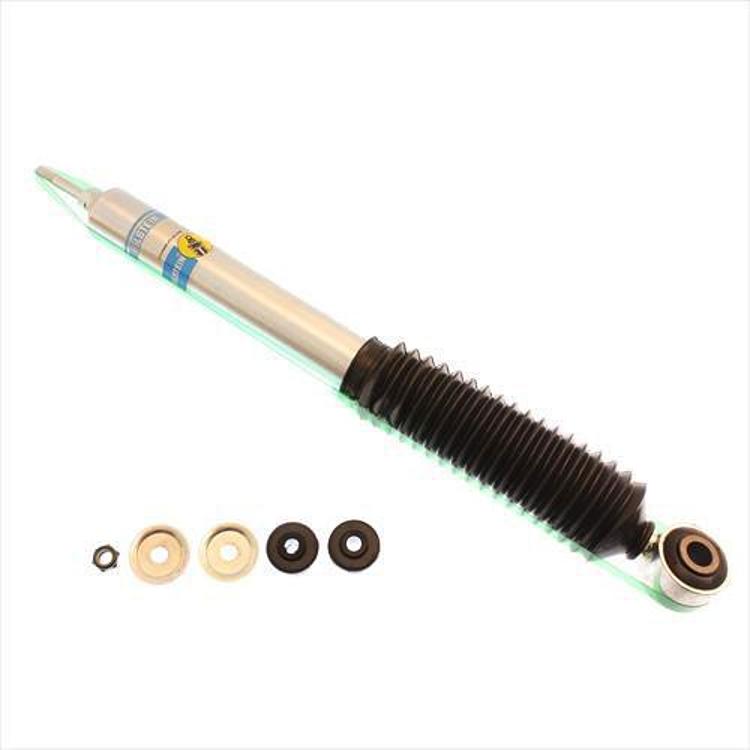

Bilstein 5100 Series Shock Absorber – 33-187174

Bilstein

Shop Toyota 4Runner Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2003–2018 Toyota 4Runner and 2007–2014 Toyota FJ Cruiser, as covered by the manufacturer fitment list
  • Rear position, Bilstein 5100 Series, gas-charged monotube design
  • Collapsed length 14.91 in, extended length 23.5 in, travel 8.59 in
  • Eye lower mount 19.1mm, stem upper mount, 14mm shaft
  • Boot included

Description

Overview

The Bilstein 33-187174 is a Bilstein 5100 Series rear shock absorber for the 2003–2018 Toyota 4Runner and 2007–2014 Toyota FJ Cruiser. It is a gas-charged monotube shock with a 46mm smooth body and a 14mm shaft, aimed at lifted trucks, Jeeps and prerunners.

The 5100 Series is a single-tube, high gas pressure design intended for steady damping and long service life. It pairs self-adjusting deflecting disc valving with a high-flow piston, and rebound and compression can be tuned independently. It suits large-diameter tires and lift kits that keep the stock O.E.M. mounting layout, and the lift range is 0 to 2 inches.

Key features

  • Monotube gas pressure construction for consistent, fade-free damping
  • Self-adjusting deflecting disc valving
  • High-flow piston that reduces harshness
  • Independent rebound and compression tuning
  • Larger working piston area for controlled damping
  • Designed for large-diameter tires and lift kits that use the stock O.E.M. mounting configuration

Lift range and tire size

Larger tires add weight and rotating mass, so the rear shocks control more wheel movement on rough trails. A shock with independent rebound and compression tuning gives more room to adjust for that extra load than a single-setting unit. Stock-height trucks often run lighter damping than lifted rigs, so the lift range and tire size should be considered together.

Check the lift before ordering because the rated range is limited. Adding a lift beyond the rated range can change the angle at the mounts and increase stress on the bushings. If the truck carries heavy gear or a roof load, look at how the shocks feel over washboard roads before deciding the setup is complete.

  • Confirm tire diameter against the lift
  • Inspect mounts after the first off-road trip
  • Recheck bushings if the ride feels loose

Specifications

Brand Bilstein
Part number 33-187174
UPC 651860599427
Series 5100 Series
Position Rear
Fitment type Direct fit
Lift height 0 to 2 in.
Collapsed length 14.91 in
Extended length 23.5 in
Travel length 8.59 in
Lower mount Eye, 19.1mm
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Monotube
Reservoir No
Hydraulic / gas charged Gas charged
Finish Zinc plated
Boot included Yes

Vehicle fitment

The manufacturer fitment list covers these vehicles and trims:

  • 2003–2018 Toyota 4Runner (Limited, SR5, Sport, TRD Off-Road, TRD Pro, Trail)
  • 2007–2014 Toyota FJ Cruiser (Base, TRD Special Edition, Trail Teams Special Edition)

Other Toyota models, and 4Runner or FJ Cruiser years outside the ranges above, are not covered by this fit. Check your year, model and trim against those ranges before buying.

Installation notes

The eye lower mount and stem upper mount follow the stock layout Bilstein describes for these applications, so the shock is intended as a direct fit. Because the listed lift range is 0 to 2 inches, check that your truck’s lift falls within that range before ordering. Gas-charged shocks are under pressure, so do not cut, puncture or heat the body.

What’s included

The boot is included with the shock.

Not included: Mounting hardware and bushings are not part of this item. Check your existing hardware before installing.

SKU: BIL33-187174 Category:

Specification

Shipping weight 5.85 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner2003–2018Limited, SR5, Sport, TRD Off-Road, TRD Pro, Trail
Toyota FJ Cruiser2007–2014Base, TRD Special Edition, Trail Teams Special Edition

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 33-187174 fit a 2003 to 2018 Toyota 4Runner?

Yes, the manufacturer fitment list covers the 2003–2018 Toyota 4Runner, including Limited, SR5, Sport, TRD Off-Road, TRD Pro and Trail trims. Confirm your year and trim before ordering.

Does this Bilstein shock fit a Toyota FJ Cruiser?

Yes, the 2007–2014 Toyota FJ Cruiser is covered in Base, TRD Special Edition and Trail Teams Special Edition trims. Other FJ Cruiser years are not covered.

What are the collapsed, extended and travel lengths?

Collapsed length is 14.91 inches, extended length is 23.5 inches and travel length is 8.59 inches. The lower mount is an eye measuring 19.1mm and the upper mount is a stem.

Is the Bilstein 33-187174 a front or rear shock?

It is a rear shock. Its lift range is 0 to 2 inches, so confirm your lift falls within that range before ordering.

What signs show a Toyota rear shock needs replacing?

Look for oil on the body, a loose or bouncy feel over bumps, and tires wearing in a cupped pattern. If you see these signs, replace both rear shocks together.
