Overview

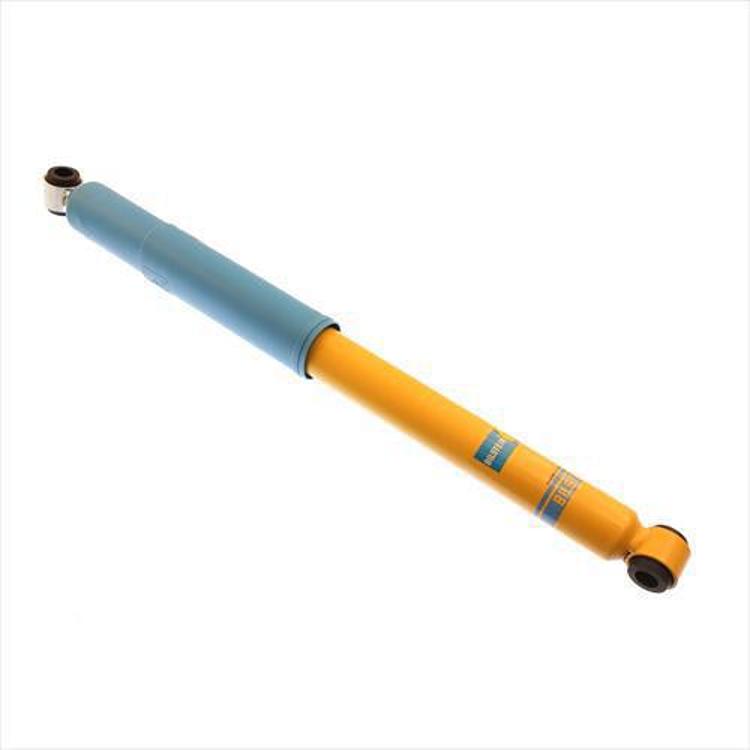

The Bilstein 4600 Series rear shock absorber, part number 24-185011, is a 2 in. monotube gas-charged shock for the 2000–2004 Nissan Frontier and the 2000–2004 Nissan Xterra. It carries a yellow finish and comes with boots, and the specifications mark it as Direct Fit in the rear position.
Its gas-charged monotube body moves heat out through the shock wall instead of holding it in the oil. Inside, a dividing piston gives the oil room to expand as it warms, so the damping stays steady when the shock runs hot. Bilstein ties this layout to resistance against aeration and loss of viscosity.
The piston head is tuned for compression and rebound independently, and the tube is extruded to very tight peak-to-valley tolerances. Bilstein presents these features as the basis for ride comfort and long service life across the 4600 Series.
Key features
- Rear-position shock with a 2 in. monotube body
- Gas-charged design with a dividing piston for oil expansion
- Compression and rebound damping tuned separately at the piston head
- Extruded tube with tight peak-to-valley tolerance
- Boots included in the package
- Yellow finish from the 4600 Series line
Signs of worn shocks
Rear shocks lose damping over time, and the first signs are often a bouncy ride, rear end float after bumps, or tires that cup. Look for oil seeping from the body or shaft, dented housings, and bushings that are cracked or missing. Check the shock with the vehicle parked and again after a short drive, since a worn unit can feel fine when stationary.
Shocks work as a set with the springs and bushings, so replacing one worn part can change how the rest of the rear end behaves. Replace shocks in pairs on the same axle so both sides react the same way. Dust boots protect the shaft from grit, and a torn boot is a reason to inspect the seal.
- Oil on the body or shaft
- Bounce or float after bumps
- Cupped or uneven tire wear
- Cracked or missing bushings
Specifications
| Brand | Bilstein |
|---|---|
| Shock series | 4600 Series |
| Part number | 24-185011 |
| UPC | 651860449180 |
| Position | Rear |
| Body diameter | 2 in. |
| Type | Monotube |
| Charge | Gas charged |
| Reservoir | No |
| Boots included | Yes |
| Finish | Yellow |
| Lift height | 0 in. lift/drop |
| Fitment type | Direct Fit |
Vehicle fitment
The manufacturer fitment list names the 2000–2004 Nissan Frontier in the SC, SE, SVE and XE trims, and the 2000–2004 Nissan Xterra in the SE and XE trims. Model years outside 2000 through 2004 are not on that list, and neither are other Nissan models, so those applications are not confirmed for this rear shock.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Direct Fit means the shock is designed as a bolt-in replacement for the original rear unit. Support the rear axle with stands before removing the old shock.
What’s included
Boots are included. Reservoir is marked No, so no remote reservoir comes with the shock.
Not included: Hardware for mounting isn’t described in the specs, so check what your rear setup needs.
