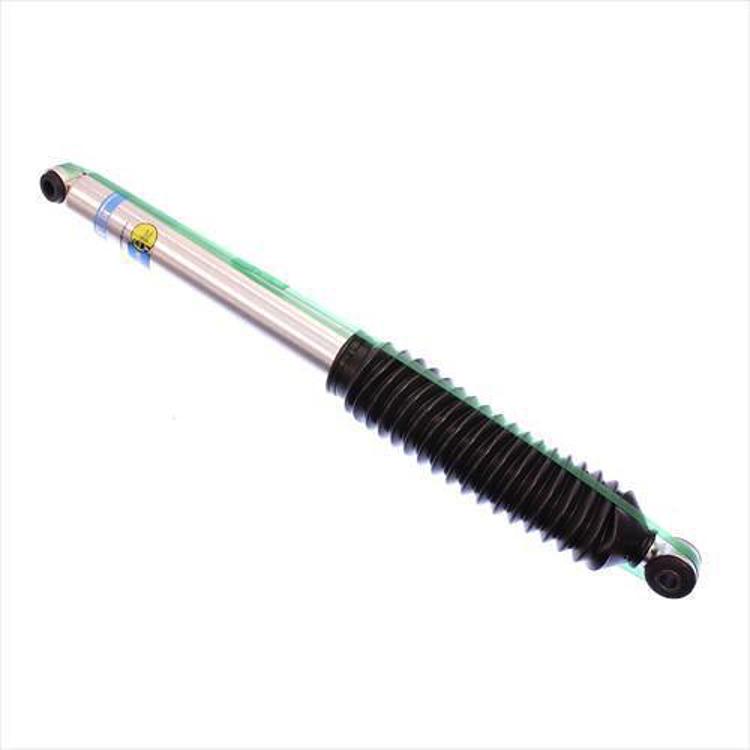

Bilstein 5100 Series Shock Absorber – 24-185653

Bilstein

$116.06In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 2:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front Bilstein 5100 Series shock for the 1987–1995 Jeep Wrangler YJ
  • Part number 24-185653, monotube gas-charged design
  • Collapsed 16.97 in, extended 28.44 in, travel 11.47 in
  • Eye lower mount 12.7mm, stem upper mount, 14mm shaft
  • Boot included, zinc plated finish, no reservoir

Description

Overview

The Bilstein 5100 Series 24-185653 is a front gas-charged monotube shock absorber for the 1987–1995 Jeep Wrangler (YJ). Bilstein markets the 5100 Series for lifted trucks, Jeeps and prerunners. This front unit has an eye lower mount, a stem upper mount, a 14mm shaft and a 46mm smooth, non-coilover body.

Collapsed length is 16.97 in and extended length is 28.44 in, giving 11.47 in of travel. Those are the figures to match against your current shock. The fitment is marked Direct Fit, and the shock comes with a boot.

Key features

  • Single-tube body with gas pressure inside (monotube)
  • Self-adjusting deflecting disc valving
  • High-flow piston that Bilstein says reduces harshness
  • Compression and rebound tuned independently
  • Larger working piston area for damping control
  • Designed for control with large-diameter tires.
  • Boot included and zinc plated finish

Stock mounts and lift kits

A Wrangler YJ front end relies on the lower control arm and track geometry to keep the tires steady, and the shock adds damping on top of that. When a lift kit is installed, the shock’s mounting angles change, so the stock mounting layout matters more. Confirm the kit you plan to use keeps that layout before buying.

A stem upper mount and an eye lower mount are different hardware styles, so check both ends against the brackets on your vehicle. Keep the old unit on stands while removing it, and never force a stem into a bracket made for an eye.

  • Confirm the lift kit keeps the stock mounting layout
  • Inspect the bushings in the eye lower mount
  • Check the stem upper mount for thread or stud damage
  • Replace shocks in pairs for even damping

Specifications

Brand Bilstein
Part number 24-185653
UPC 651860596600
Series 5100 Series
Position Front
Collapsed length 16.97 in
Extended length 28.44 in
Travel length 11.47 in
Lower mount Eye, 12.7mm
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID smooth body, non-coilover
Internal design Mono tube
Gas charged Yes
Reservoir No
Finish Zinc plated
Boot Included
Lift/Drop 0 in.
Fitment type Direct Fit

Vehicle fitment

It fits the 1987–1995 Jeep Wrangler (YJ) in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims. TJ, LJ and JK Wrangler generations are not covered by this part.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Bilstein designed this shock for specific manufacturer lift kits that keep the stock O.E.M. mounting configuration, so confirm your kit uses it. Compare the 12.7mm eye lower mount and the stem upper mount with your existing shock before installing. Support the vehicle on stands while the old unit is removed.

What’s included

One Bilstein 5100 Series front shock absorber with its boot. Mounting hardware is not included.

SKU: BIL24-185653 Category:

Specification

Shipping weight 5.65 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is part 24-185653 a front or rear shock?

It is a front shock. It has an eye lower mount and a stem upper mount, and it fits the 1987 to 1995 Jeep Wrangler YJ.

Will this shock fit a Jeep TJ or LJ Wrangler?

No. It fits only the 1987 to 1995 Jeep Wrangler YJ, so a TJ or LJ needs a part that names its own model years.

What are the collapsed and extended lengths?

Collapsed length is 16.97 in and extended length is 28.44 in, with 11.47 in of travel. The lower mount is a 12.7mm eye and the upper mount is a stem. Measure your current shock to compare.

Does the shock include mounting hardware?

The shock comes with a boot. Mounting hardware is not included, so have the hardware your installation needs ready before you start.

Is a stem upper mount different from an eye?

Yes. A stem uses a stud-style end that bolts through a bracket, while an eye is a round loop that sits around a bushing. Match the upper end to your bracket before ordering, and never force a stem into an eye bracket.
