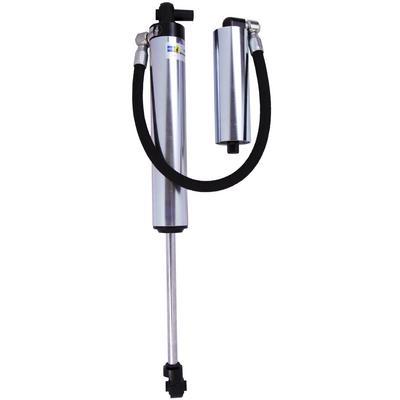

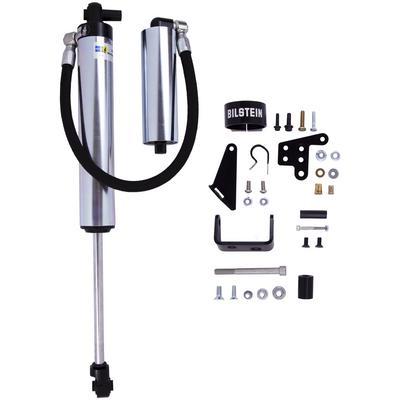

Bilstein 8100 Series Remote Reservoir Shock Absorber – 25-304916

Bilstein

$542.87In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 7:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front right remote reservoir shock for 2020–2026 Jeep Gladiator
  • 60mm large bore body built from billet components
  • Monotube design with velocity sensitive digressive valve settings
  • Eyelet top and bottom mounts

Description

Overview

The Bilstein 8100 Series 25-304916 is a front right remote reservoir shock absorber for the 2020–2026 Jeep Gladiator. It is a large bore, 60mm direct-fit shock for lifted trucks and SUVs, and it uses eyelet mounts at both ends.

The body is built from aerospace quality billet components. The 60mm inside diameter increases oil volume, which helps control heat while the truck covers rough roads over long distances. The monotube design uses velocity sensitive digressive valve settings tuned for each application.

The reservoir can be remote or piggyback, and installation is straightforward. Mount the reservoir where the hose runs clear of moving parts. The 60mm piston offers more comfort and control in all driving conditions. This part covers the front right position only, so confirm the side before ordering. Compare the installed length of your current front shock and allow room for the reservoir.

Key features

  • Front right position
  • 60mm large bore body from billet components
  • Remote or piggyback reservoir
  • Monotube design with velocity sensitive digressive valving
  • Eyelet top and bottom mounts

Mounting and hose routing

Mounting a remote or piggyback reservoir takes more planning than a plain shock, because the reservoir must sit where it is protected yet still free to move with the suspension. Choose a spot away from the tire path and the exhaust, and give the hose a smooth bend rather than a sharp kink.

A right-side unit should be matched with its partner on the left, so both front shocks keep the same damping and feel. Before fitting, inspect the bushings, bump stops and springs, since worn parts can make the new shock wear faster. After the first drive, recheck the mounts and hose clamps, because movement on rough ground can loosen them.

  • Keep the hose away from heat sources
  • Check the reservoir clamp after the first drive
  • Look at the bump stops for wear

Specifications

Brand Bilstein
Part number 25-304916
Shock series 8100 Series
Position Front right
Shock type Monotube reservoir
Body diameter 60mm
Top mount Eyelet
Bottom mount Eyelet
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 2020–2026 Jeep Gladiator, front right position.

Gladiator models from before 2020, the Jeep Wrangler, and the front left position are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One front right remote reservoir shock absorber.

Installation notes

Check the reservoir and hose clearance on your truck before mounting, and confirm you have the right side before ordering.

Fitment

VehicleYearsTrims
Jeep Gladiator2020–202680th Anniversary, Altitude, High Altitude, Launch Edition, Overland, Rubicon, Sport, Sport S, Willys, Willys Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 25-304916 fit a 2020 Jeep Gladiator?

Yes. It fits the 2020 to 2026 Jeep Gladiator, so a 2020 model is covered. Confirm the front right position before ordering.

Is the front left unit sold with this one?

No. The front left shock is a separate part number, 25-304909, and each unit is sold individually. Order one unit for each side of the truck you are upgrading.

Does the reservoir have to be mounted remotely?

No. Each 8100 unit uses a remote or piggyback reservoir, so either arrangement is part of the design. Plan the mounting space before fitting the shock.

What should I check before mounting a reservoir on a lifted truck?

Check the space between the reservoir and the tire, frame and steering parts at full lock and full travel. Confirm the hose has enough slack to move without pulling on the fittings.
