Overview

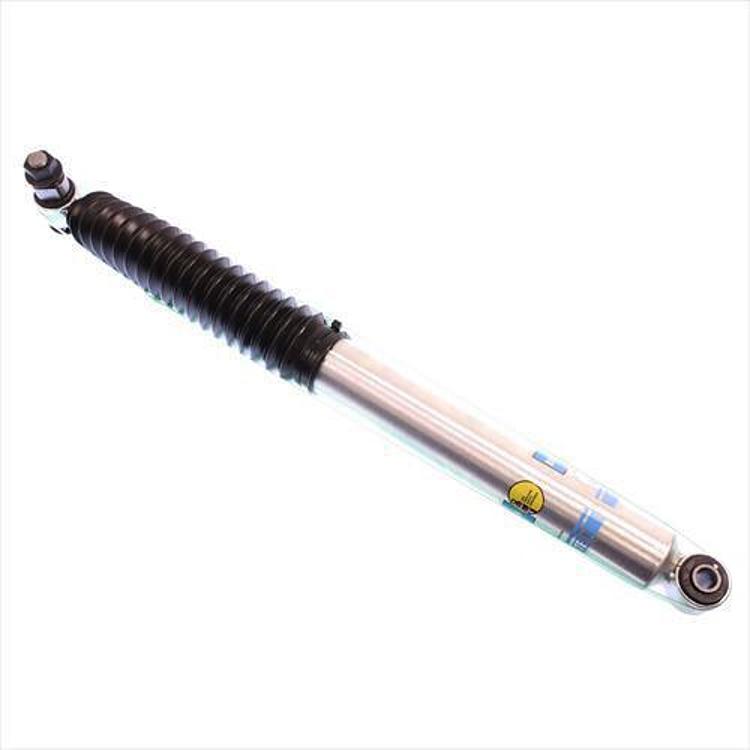

The Bilstein 24-187084 is a 5100 Series rear shock absorber with a 46mm smooth non-coilover body and a cantilever upper mount, made for 3 to 4 in of lift. Fit to a specific vehicle is not confirmed, so check before ordering.
This rear unit uses a mono tube gas pressure body with a 14mm shaft, a 14.4mm lower eye and a cantilever upper mount. Its 10.01 in travel length comes with collapsed and extended lengths of 16.14 in and 26.15 in. Bilstein describes 5100 Series shocks as suited to lifted trucks, Jeeps and prerunners, with self-adjusting deflecting disc valving and a high-flow piston.
Key features
- Monotube gas pressure construction.
- Self-adjusting deflecting disc valving.
- High-flow piston that Bilstein says reduces harshness.
- Independent rebound and compression tuning.
- Larger working piston area.
- Designed for large diameter tires.
- Cantilever upper mount.
Cantilever mounts on lifted rears
A cantilever upper mount transfers shock load through a different geometry than a standard eye, so the mounting point on the body and the bracket on the frame or axle need to line up. Before buying, measure the mount positions on your current rear shock and compare them with the new unit. Small differences in angle can cause binding at full travel.
Rear shocks on lifted trucks work harder because the suspension travels further and the tires often weigh more. Inspect the upper mount bushings and bracket welds during installation, and replace worn parts while the rear is open. Torque the mount hardware after the first drives, since cantilever brackets can loosen under repeated load.
- Measure mount centers and angles on the old shock
- Check the boot for tears before installing
- Confirm bracket clearance at full compression
- Re-check upper mount bolts after the first few drives
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187084 |
| UPC | 651860597911 |
| Shock series | 5100 Series |
| Position | Rear |
| Collapsed length | 16.14 in |
| Extended length | 26.15 in |
| Travel length | 10.01 in |
| Lower mount | Eye 14.4mm |
| Upper mount | Cantilever |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | No |
| Finish | Zinc plated |
| Boot included | Yes |
| Lift height | 3–4 in lift |
| Charge | Gas charged |
Vehicle fitment
Fit to a specific vehicle is not confirmed. The 3 to 4 in lift range is the one this shock suits, and the 5100 Series is aimed at lifted trucks, Jeeps and prerunners. Confirm your year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Bilstein designed the 5100 Series around lift kits that keep the stock OEM mounting setup. This rear unit has a cantilever upper mount, so compare it with the mount on your vehicle before installing.
What’s included
A boot is included. No mounting hardware for the cantilever upper mount is named, so confirm the contents before starting the work.
