Overview

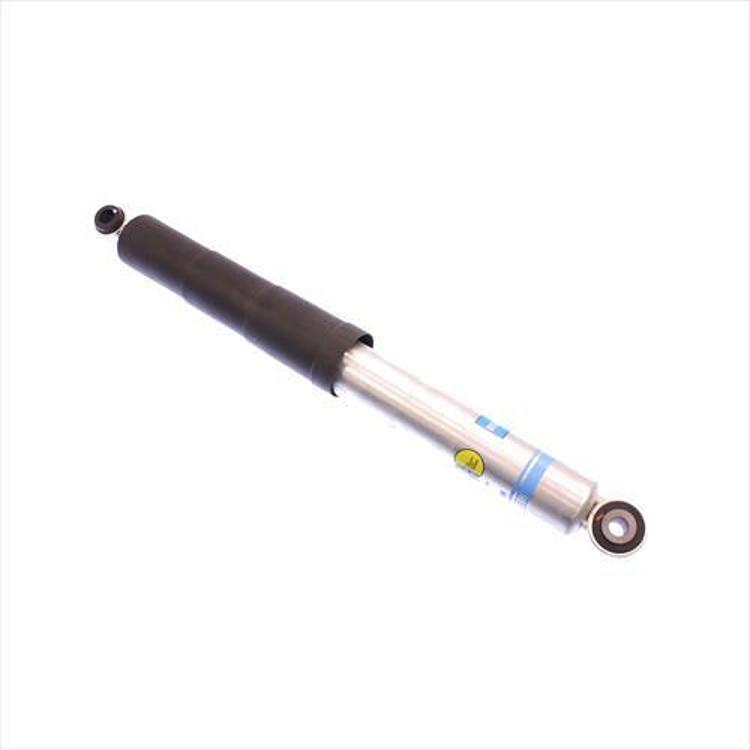

The Bilstein 24-187152 is a 5100 Series rear shock absorber with eye mounts at both ends, designed for the 2005–2018 Nissan Frontier and the 2009–2012 Suzuki Equator. It is aimed at lifted trucks, Jeeps and prerunners, and this smooth-body, non-coilover model uses a single tube design with high gas pressure.
The shock measures 13.84 in collapsed and 21.65 in extended, giving 7.81 in of travel. Its valving and piston design control large diameter tires and reduce harshness on the road. The lift range is 0 to 1 in.
Key features
- Monotube, single tube high gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston meant to reduce harshness
- Independent rebound and compression tuning
- Larger working piston area for damping control
- Boot included
Eye mounts and rear wear
The eye mounts on a rear shock take the most movement from the axle, so their bushings tend to crack or flatten first. Look for rubber that has torn or split at the eye, and check for movement when the shock is pushed by hand. Worn bushings can make a shock rattle or allow clunks over small bumps even when the damping is still good.
Rear shocks on trucks and SUVs often work hard on rough roads and when carrying cargo. Inspect the body for oil seepage, the shaft for pitting and the boot for tears at each service. Replacing a shock and its bushings together is a practical step when both show wear, and keep the gas-charged body away from heat during removal.
- Check eye bushings for cracks and flattening
- Look for oil on the rear shock body
- Inspect the boot for tears
- Replace worn bushings with the shock when needed
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187152 |
| UPC | 651860599113 |
| Shock series | 5100 Series |
| Position | Rear |
| Fitment type | Direct fit |
| Lift range | 0 to 1 in |
| Collapsed length | 13.84 in |
| Extended length | 21.65 in |
| Travel length | 7.81 in |
| Lower mount | Eye 14.1mm |
| Upper mount | Eye 16mm |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Monotube |
| Reservoir | No |
| Gas charge | Gas charged |
| Finish | Zinc plated |
| Boot | Included |
Vehicle fitment
It fits 2005–2018 Nissan Frontier (Desert Runner, LE, Nismo Off-Road, PRO-4X, S, SE, SL, SV, XE) and 2009–2012 Suzuki Equator (Base, Premium, RMZ-4, Sport).
Frontier model years before 2005 and after 2018 are not covered, and the Nissan Xterra is not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 16mm upper eye and 14.1mm lower eye on your existing rear shock against this shock before installing, since the mount sizes are the main points to confirm.
What’s included
One Bilstein 5100 Series rear shock absorber, part 24-187152, with the boot included. Not included: no mounting hardware is listed with this shock.
