Overview

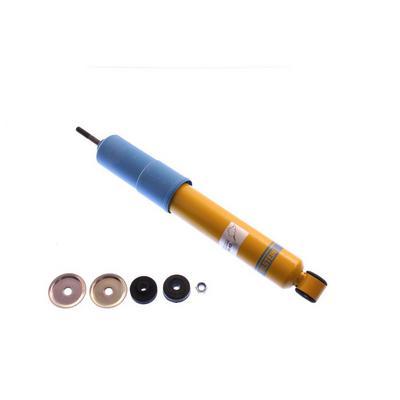

The Bilstein 4600 Series front shock, part number BIL24-191197, is a gas charged monotube shock with a 2 inch body diameter, boots included and a yellow finish. It is a direct fit for the 1992 to 2002 Isuzu Trooper in LS, Limited, Ltd, RS, S and SE trim.
The monotube has no external reservoir. Heat from the oil passes through the outer surface of the shock body, so the shock dissipates heat more efficiently than designs that hold heat inside the body.
The dividing piston lets the oil expand when it warms, which prevents foaming and loss of viscosity. This allows the shock to keep its full damping characteristics as temperatures rise. The piston head is built so compression and rebound can be tuned separately, which gives a balance of ride comfort and performance.
The seamless tube is made by a special extrusion process with a tight peak-to-valley tolerance and consistent wall thickness. The design has fewer parts than conventional twin tube and road sensing shocks.
The front position and gas charged design are the main features of this shock.
Key features
- Front position
- Gas charged monotube design
- 2 inch body diameter
- Boots included
- No external reservoir
- Yellow finish
- Dividing piston and separate compression and rebound tuning
Front shock service on older SUVs
Older compact SUVs often rely on the front shocks to control body motion over broken pavement and washboard gravel. When the damping weakens, the front end can bounce, the steering can feel loose, and the tires may cup. Gas charged monotube designs help keep damping consistent as the oil heats, but the seals and boots still age with use.
Service goes best when the mounts, springs and steering parts are checked alongside the shock. Clean the shock body before inspection, look for cracks at the eyelets and check the rod for scoring. Replacing the shock on both sides keeps the front end balanced.
- Check the front springs and spring seats
- Inspect the steering linkage for play
- Look for oil on the shock body
Specifications
| Brand | Bilstein |
|---|---|
| Part number | BIL24-191197 |
| Shock series | 4600 Series |
| Position | Front |
| Shock type | Monotube, gas charged |
| Body diameter | 2 inch |
| Reservoir | None |
| Boots | Included |
| Finish | Yellow |
| Fitment | Direct fit |
Vehicle fitment
It fits 1992–2002 Isuzu Trooper models in LS, Limited, Ltd, RS, S and SE trim.
The list does not include the Trooper from 2003 onward, the Rodeo, or any other Isuzu model. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Front shocks are generally fitted in pairs. Check the length and mounts against the front springs before installing, and make sure the boots are in place.
What’s included
The product is one front monotube shock with boots, under part number BIL24-191197.
