Overview

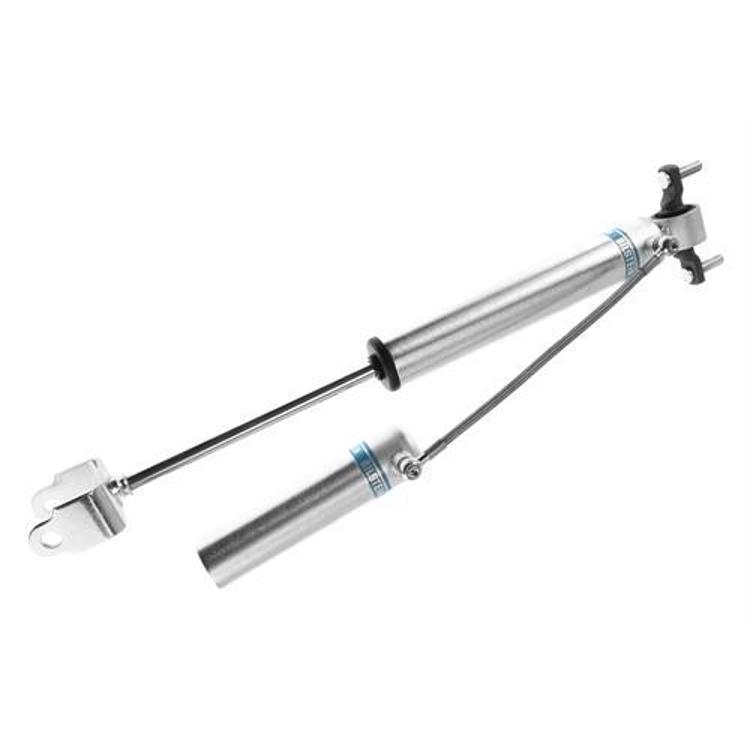

It is a gas charged monotube front shock with a remote reservoir, designed for a 4 – 6 in. lift. It is a direct-fit, stock-mount unit, so it installs on a specific vehicle application without the fabrication that high performance reservoir shocks often need.
The reservoir adds cooling capacity and shock travel, and the 46mm digressive piston uses self-adjusting deflective disc valving. Confirm fit for your vehicle’s year, model and trim before ordering.
Key features
- Remote reservoir for added cooling capacity and increased shock travel
- 46mm digressive piston with self-adjusting deflective disc valving
- Gas charged monotube body
- Direct-fit, stock mount design for a specific vehicle application
- Front position with a 4 – 6 in. lift range
- Zinc plated finish
Remote reservoir shock care
A remote reservoir separates the gas and oil from the body of the shock, which lets the damper dissipate heat more effectively during long descents or repeated hard use. The reservoir is mounted on its own bracket and connected by a hose, so its position needs to be checked as the suspension moves through its travel.
Front suspension on lifted trucks puts extra load on the shock mounts and bushings, and a longer lift can change how much the shock compresses. Before fitting a replacement, check that the reservoir has clearance from the frame, tire and steering components. Re-inspect the fittings after the first few trail sessions, since new mounts can settle.
- Check reservoir clearance through full steering lock
- Look for oil seepage at the cap and hose fitting
- Confirm mount bushings are tight
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-218190 |
| UPC | 651860697727 |
| Shock series | 5160 Series |
| Position | Front |
| Fitment type | Direct Fit |
| Lift height | 4 – 6 in. lift |
| Body design | 46mm ID smooth body (non-coilover) |
| Piston | 46mm digressive |
| Valving | Self-adjusting deflective disc |
| Charge | Gas charged |
| Reservoir | Yes, remote |
| Finish | Zinc plated |
| Collapsed length | 15.57 in (395.5 mm) |
| Extended length | 24.23 in (615.5 mm) |
Vehicle fitment
It is a direct-fit design for a specific vehicle application with a 4 – 6 in. lift. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the collapsed length of 15.57 in and extended length of 24.23 in with your current shock before fitting. Leave clearance for the remote reservoir, which is part of this design.
What’s included
The shock comes with its remote reservoir. Check brackets, hardware and fasteners against your installation before starting.
