Overview

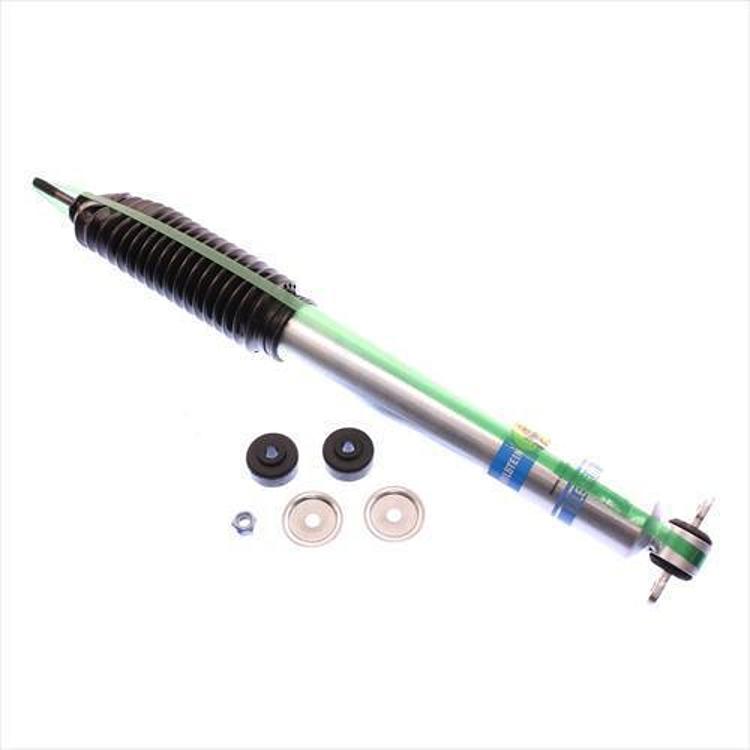

The Bilstein 24-188197 is a 5100 Series shock absorber with a 46mm smooth body, a 14mm shaft and a bar pin lower mount with a stem upper mount. It is built for lifted trucks, Jeeps and prerunners and has a zinc plated finish.
The single tube high gas pressure design aims for consistent, fade-free performance and long life. Self-adjusting deflecting disc valving and a high-flow piston help reduce harshness, and the larger working piston area gives more exact damping, which supports control on large-diameter tires.
Key features
- Monotube gas pressure construction.
- Self-adjusting deflecting disc valving.
- High-flow piston designed to reduce harshness.
- Independent rebound and compression tuning.
- Larger working piston area for damping control.
- Boot included.
Monotube shocks on lifted trucks
A monotube shock keeps the oil and gas charge in one tube, separated by a floating piston. On a lifted truck the longer travel and heavier wheel and tire package put more load on the damper, so the shock works harder on washboard roads and during landings. Gas pressure helps the oil resist foaming when the shock heats up, which keeps damping more predictable on long descents.
Because the suspension geometry changes with a lift, the shock angle and mount positions matter. Check that the lower and upper mounts clear the axle, springs and brake lines through full compression and full extension before torquing the hardware. Many owners replace bushings and bump stops at the same time, since worn rubber changes how the shock loads its mounts.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-188197 |
| UPC | 651860591285 |
| Shock series | 5100 Series |
| Collapsed length | 14.98 in. |
| Extended length | 24.61 in. |
| Travel length | 9.63 in. |
| Lower mount | Bar pin |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body, non-coilover |
| Internal design | Mono tube |
| Reservoir | No |
| Boot included | Yes |
| Finish | Zinc plated |
| Gas charge | Gas charged |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Lifted trucks, Jeeps and prerunners are the intended applications for this shock.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Match the bar pin lower mount and stem upper mount to your existing shock before installing. This design is made for specific manufacturer lift kits, so verify your lift kit first.
What’s included
One shock body with its boot included. Confirm any mounting hardware you need before installing.
Not included: Check the package contents against your installation before starting, especially any hardware beyond the shock and boot.
