Overview

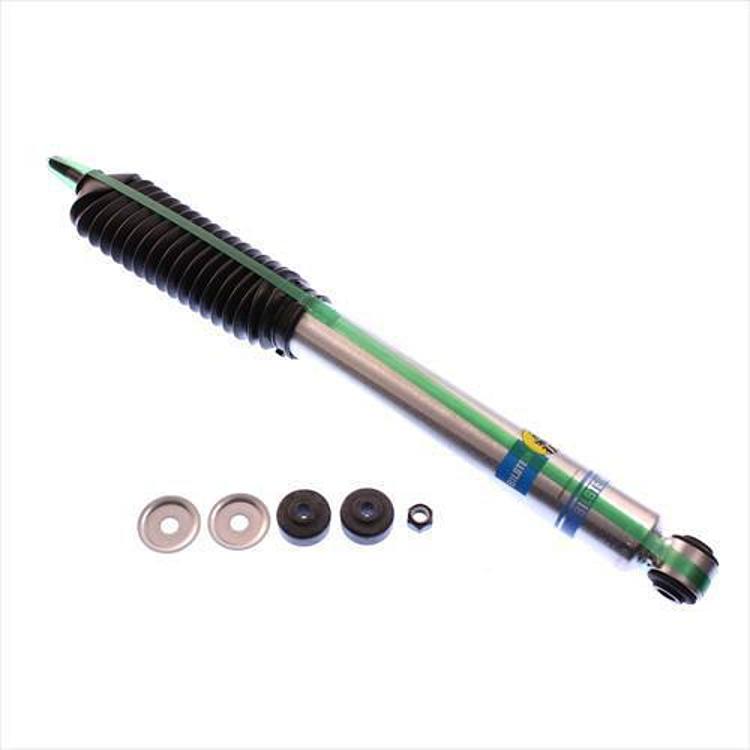

The Bilstein 5100 Series 24-185776 is a front gas-charged monotube shock absorber rated for a 4 in. lift. It fits 1994–2008 Dodge Ram 1500, 2500 and 3500 trucks and 2005–2016 Ford F-250 and F-350 Super Duty trucks.
Its 14.88 in. collapsed length and 24.37 in. extended length give 9.49 in. of travel, with a 46mm smooth body and a 14mm shaft. The 5100 design is built for consistent performance and long life on lifted trucks, Jeeps and prerunners.
Key features
- Monotube gas construction with a 46mm ID smooth body
- 9.49 in. travel length
- Self-adjusting deflecting disc valving
- Independent rebound and compression tuning
- Boot included
- Zinc plated finish
Choosing a lift height
A 4 in. lift rating suits a truck whose suspension geometry has been raised by that amount. Shocks on lifted trucks work through longer travel, so the collapsed and extended lengths must match the new ride height. Measure your truck before buying, and compare the shock’s lengths with the unit you are replacing.
Lifted trucks often carry larger tires, which increase the load on the shock and its mounts. Steering components and control arm bushings are often replaced alongside shocks, because worn parts change how the new shock loads up. Gas-charged units are pressurized, so have them handled by a qualified shop.
- Measure ride height before ordering
- Inspect the upper stem and lower eye mount
- Check bump stops and bushings during install
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-185776 |
| UPC | 651860638560 |
| Shock series | 5100 Series |
| Position | Front |
| Collapsed length | 14.88 in. |
| Extended length | 24.37 in. |
| Travel length | 9.49 in. |
| Lower mount | Eye 14.1mm |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Reservoir | No |
| Body design | 46mm ID smooth body, non-coilover |
| Internal design | Monotube |
| Finish | Zinc plated |
| Boot included | Yes |
| Lift height rating | 4 in. lift |
| Charge type | Gas charged |
| Fitment type | Direct fit |
Vehicle fitment
The manufacturer fitment list covers five entries: 1994–2001 and 2004–2008 Dodge Ram 1500; 1994–2002 and 2006–2007 Dodge Ram 2500 and 3500; and 2005–2016 Ford F-250 Super Duty and F-350 Super Duty in trims such as XL, XLT, Lariat and King Ranch.
Dodge Ram 1500 years 2002–2003 and 2009 onward, Ram 2500 and 3500 years outside 1994–2002 and 2006–2007, and Ford models outside 2005–2016 are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lower mount is a 14.1mm eye and the upper mount is a stem, so compare these with the mounting points on your truck before installation. The 5100 Series is designed for specific manufacturer lift kits using the stock O.E.M. mounting configuration, so check that your kit keeps those points in place. Gas-charged units are pressurized, so have them handled by a qualified shop.
What’s included
One 5100 Series front shock absorber with its boot. Check the package contents against your installation before starting, including the upper and lower mounting hardware.
