Overview

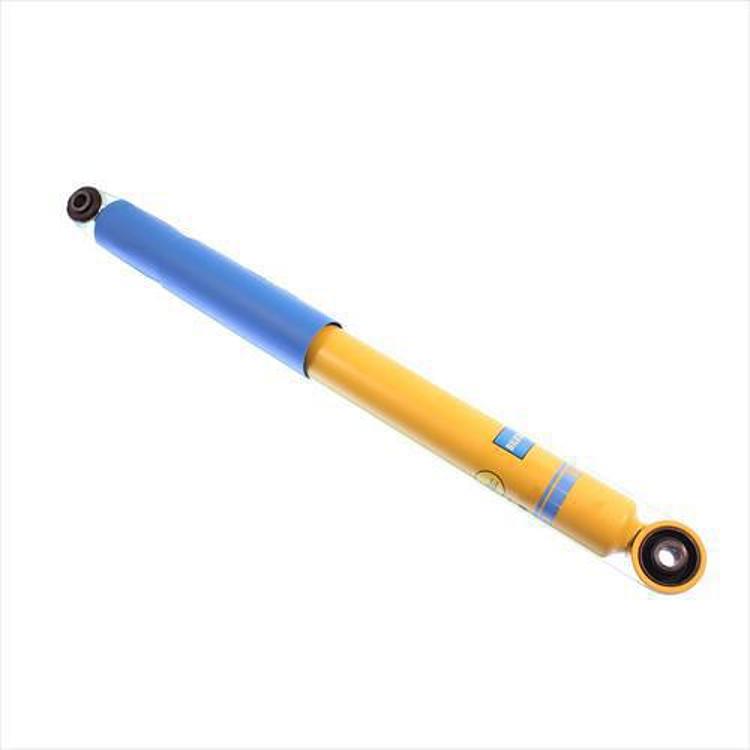

The Bilstein 24-186841 is a rear 4600 Series 46mm monotube gas shock absorber for 2007–2013 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. It is a direct-fit replacement in the rear position, with a heavy duty yellow body and no lift or drop built in.
The gas-charged monotube design moves heat from the damping oil out through the outer surface of the shock body, which helps the unit keep its damping as temperatures rise. A divider piston lets the oil expand as it warms, limiting aeration and foaming. Compression and rebound valving are tuned independently, and the layout uses fewer parts than typical twin tube and road sensing designs. Match the part number to the shock you are replacing before installing.
Key features
- Heavy duty 46mm monotube body
- Gas-charged construction with a divider piston that limits oil foaming
- Seamless monotube tube formed by a special extrusion process for consistent wall thickness
- Separately adjustable compression and rebound damping
- Direct fit in the rear position for 2007–2013 Silverado 1500 and Sierra 1500 applications
- Yellow finish; old part number BILF4-BE5-E011-H0 also listed
Replacing a worn rear shock
A rear shock controls how fast the axle rebounds after a bump, and it works alongside the springs to keep tires in contact with the ground. When one unit wears out, the vehicle can bounce after dips, feel loose on washboard roads, or sway more in turns. Oil seepage down the shock body, a clunk over small bumps, and cupped rear tire wear are common signs that the damping has faded.
Shocks are normally replaced in pairs on the same axle. A new shock beside a worn one can pull the vehicle slightly to one side and change how the rear reacts. Before fitting, check the rear bushings and mounting hardware, since worn bushings can mimic a bad shock. Keep the gas-charged body away from heat during removal and installation.
- Check both rear shocks for leaks and mount wear
- Inspect bushings and hardware before assembly
- Replace shocks as a pair when possible
- Torque fasteners to the vehicle’s service specification
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186841 |
| UPC | 651860583334 |
| Shock series | 4600 Series |
| Position | Rear |
| Tube | 46mm monotube |
| Hydraulic / gas charged | Gas charged |
| Fitment type | Direct Fit |
| Lift / drop | 0 in. |
| Finish | Yellow |
| Old part number | BILF4-BE5-E011-H0 |
Vehicle fitment
Bilstein’s manufacturer fitment list covers the 2007–2013 Chevrolet Silverado 1500 (Hybrid, LS, LT, LTZ, WT, XFE) and the 2007–2013 GMC Sierra 1500 (Hybrid, SL, SLE, SLT, WT, XFE). Trims are shown as Bilstein gives them.
Vehicles outside the 2007–2013 model years, including the Chevrolet Tahoe and GMC Yukon, are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a rear shock, so match the position to the rear axle before fitting. Gas-charged bodies are pressurized, so keep the shell away from heat and do not puncture or open it.
What’s included
Check the package contents against your installation before starting, including any hardware needed for the rear mounts.
