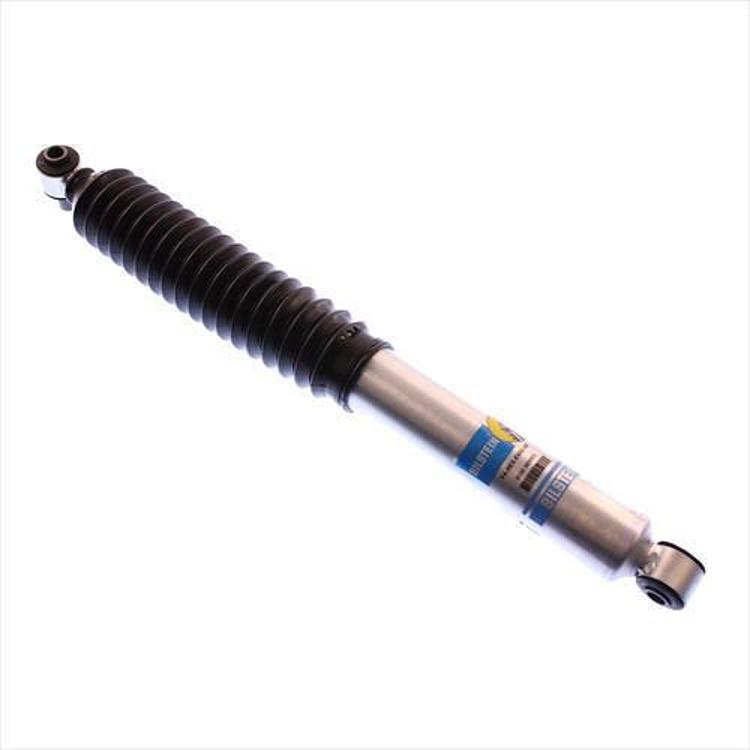

Bilstein 5100 Series Shock Absorber – 24-187077

Bilstein

$123.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 24-187077 5100 Series front shock absorber with a 46mm ID smooth body
  • Collapsed length 13.66 in, extended length 21.62 in, travel 7.96 in
  • Zinc plated finish, boot included, no reservoir
  • Confirm fit for your vehicle’s year, model and trim before ordering

Description

Overview

The Bilstein 5100 Series Shock Absorber, part number 24-187077, is a front, gas charged mono tube shock absorber with a 46mm ID smooth body and no reservoir. It has a non-coilover body design and is suited to lifted trucks, Jeeps and prerunners.

The 5100 Series uses a single tube high gas pressure design aimed at steady damping and long service life. Self-adjusting deflecting disc valving and a high-flow piston reduce harshness, and the larger working piston area gives finer damping control. Confirm fit for your vehicle’s year, model and trim before ordering.

Key features

  • Monotube gas pressure construction
  • Self-adjusting deflecting disc valving
  • High-flow piston that Bilstein says reduces harshness
  • Independent rebound and compression tuning
  • Larger working piston area for damping control
  • Suited to control with large diameter tires
  • Designed for specific manufacturer lift kits that use the stock O.E.M. mounting configuration
  • Zinc plated finish with a boot included

Choosing a lift height

Lift height changes how a shock works. When a truck is raised, the suspension geometry shifts and the damper sits at a different angle, so it has to control more travel to keep the tires in contact with the ground. A shock sized for the lift keeps the ride controlled and reduces the chance of bottoming out on rough ground.

Larger tires add weight and rotational inertia at each wheel, which puts more load on the damping. Shocks used on that kind of build often work alongside upgraded control arms, sway bar links and steering parts, since those are commonly replaced in the same job. Inspect the bushings and ball joints before refitting.

A worn shock tends to show oil on the body, a soft or bouncy feel after bumps, or uneven tire wear. Gas charged units generally keep their pressure over time, but any sign of leaking means the shock should be replaced rather than repaired.

Specifications

Brand Bilstein
Part number 24-187077
UPC 651860597904
Series 5100 Series
Position Front
Fitment Direct Fit
Lift height 3 to 4 in lift
Collapsed length 13.66 in
Extended length 21.62 in
Travel length 7.96 in
Lower mount Eye 12.7mm
Upper mount Eye 12.7mm
Shaft diameter 14mm
Reservoir No
Finish Zinc plated
Body design 46mm ID smooth body (non-coilover)
Internal design Monotube
Boot included Yes
Charge Gas charged

Vehicle fitment

This part is suited to lifted trucks, Jeeps and prerunners rather than one specific model and year. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The listed lift range is 3 to 4 in, and the shock is designed for specific lift kits with the stock OEM mounting configuration, so confirm your lift kit matches before installing. After installation, check ride height and alignment, since a lift changes front geometry.

What’s included

A boot is included, and there is no reservoir. Go through the package contents against your installation before starting.

Not included: Lift kit components, since the shock is designed for specific manufacturer kits.

SKU: BIL24-187077 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Questions & Answers

What is the Bilstein 24-187077?

The Bilstein 24-187077 is a 5100 Series front shock absorber with a 46mm ID smooth body, gas charged mono tube design and zinc plated finish. Its collapsed length is 13.66 in, extended length is 21.62 in and travel length is 7.96 in.

What lift range is the 24-187077 designed for?

The lift height range is 3 to 4 in. It is designed for specific lift kits that use the stock O.E.M. mounting configuration, so match it to your kit before installing.

Will the 24-187077 fit my Jeep or truck?

Fit depends on your exact model and year, so confirm it for your vehicle before ordering. The shock is suited to lifted trucks, Jeeps and prerunners.

Is a reservoir included with this shock?

No, there is no reservoir with this shock. A boot is included. Check the package contents against your installation before starting to see what hardware you need.

How can I tell if the shock needs replacing?

Look for oil on the outer body, a bouncy or uncontrolled feel after bumps, or cupped tire wear. A shock that is leaking or no longer damping should be replaced, and it is often worth checking both front shocks together for a consistent ride.
