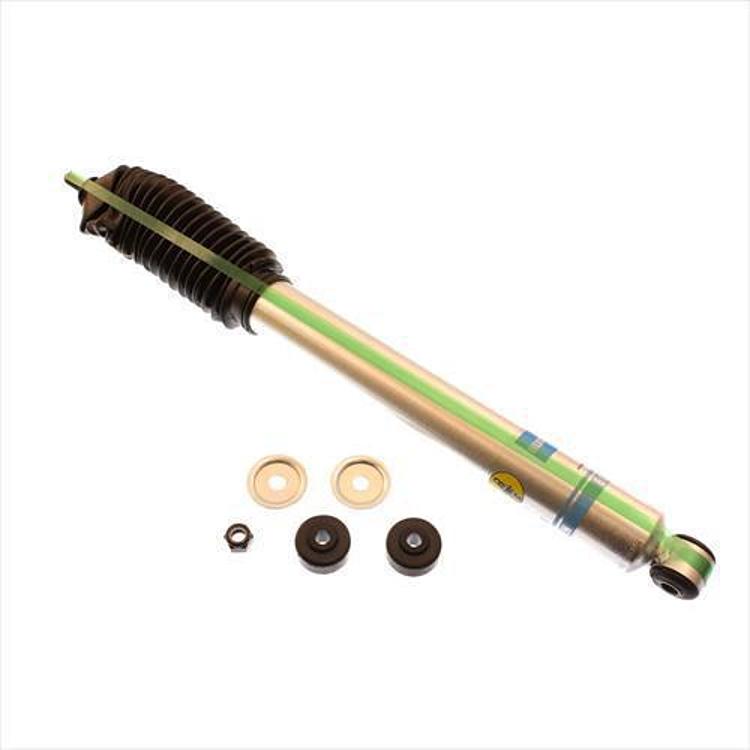

Bilstein 5100 Series Shock Absorber – 24-185417

Bilstein

$123.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 7:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 5100 Series rear shock absorber, part number 24-185417
  • Collapsed length 16.38 in, extended length 27.32 in
  • Lower eye 12mm mount with stem upper mount
  • Fits 1997–2003 Ford F-150 pickups.

Description

Overview

The Bilstein 24-185417 is a rear shock absorber from the 5100 Series, a gas-pressure monotube design with a 12mm eye lower mount and a stem upper mount. It fits the 1997–2003 Ford F-150 in the trims covered below.

The 5100 Series is a single-tube, high gas pressure design built for consistent damping and long service life. Its valving and piston arrangement allow independent rebound and compression tuning. It is made for trucks with large tires and works with certain lift kits that keep the stock mounting layout. The unit carries a 0 in lift or drop rating.

Key features

  • Single-tube gas-pressure monotube construction
  • Self-adjusting deflecting disc valving
  • High-flow piston intended to reduce harshness
  • Independent rebound and compression damping tuning
  • Larger working piston area for consistent damping
  • Zinc plated finish with boot included

Measuring a replacement shock

Replacing a 5100 Series rear shock is mostly a matter of measurement. Compare the collapsed and extended lengths of the old unit with the new one, and make sure the travel covers the suspension range you use. Mount style matters too, because an eye at one end and a stem at the other must match the existing brackets on the truck.

Single-tube gas-pressure designs keep damping consistent as the oil heats, which suits trucks that tow or carry heavy loads. Check the boot for tears, look for leaks along the body, and inspect the bushings and brackets before fitting. Gas-charged bodies are pressurized, so keep the unit away from heat and do not puncture it.

  • Compare collapsed and extended lengths
  • Confirm the eye and stem mount types
  • Check bushings and brackets for wear

Specifications

Brand Bilstein
Part number 24-185417
UPC 651860453439
Shock series 5100 Series
Position Rear
Design Monotube, gas charged
Collapsed length 16.38 in
Extended length 27.32 in
Travel length 10.94 in
Lower mount Eye 12mm
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Finish Zinc plated
Reservoir No
Boot included Yes
Lift/drop 0 in.

Vehicle fitment

It fits the 1997–2003 Ford F-150 in Base, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims. Other F-150 generations and Ford models are not covered.

Other F-150 generations and Ford models are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 12mm eye at the bottom needs a matching mount, and the stem at the top must fit the upper bracket on your truck. Measure your current shock’s collapsed and extended lengths and compare them with 16.38 in and 27.32 in before you order.

What’s included

One Bilstein 5100 Series shock absorber with boot included.

Not included: Check the package contents against your installation for mounting hardware before starting.

SKU: BIL24-185417 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1501997–2003Base, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Bilstein 24-185417 fit the Ford F-150?

Yes, for the 1997–2003 Ford F-150 in Base, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims. Other F-150 years and trims fall outside that coverage, so confirm your truck before ordering.

What is the lower mount on this shock?

The lower mount is an eye measuring 12mm. The upper mount is a stem. The shaft diameter is 14mm, so match these mount types to your existing shock before installation.

How much travel does this shock have?

Its travel length is 10.94 in, with a collapsed length of 16.38 in and an extended length of 27.32 in. The product is listed with a 0 in lift or drop.

Is this a gas-charged shock?

Yes. It is a monotube design charged with gas pressure, which Bilstein says helps keep damping consistent. The unit has no reservoir and includes a boot.

How do I check that the mounts will match my truck?

Compare the eye or stem style at each end with the existing shock, then check the collapsed and extended lengths against the old unit before ordering. Confirm your year, model and trim as well.
