Bilstein 4600 Series Shock Absorber – 24-268110

Bilstein

$134.07In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 4:00 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein B6 4600 front coilover shock, part number BIL24-268110, for four-wheel drive
  • Snap ring grooved 46 mm body in yellow, sold individually
  • Fits 2016–2024 Nissan Titan XD PRO-4X, Platinum Reserve, S, SL and SV in 4WD

Description

Overview

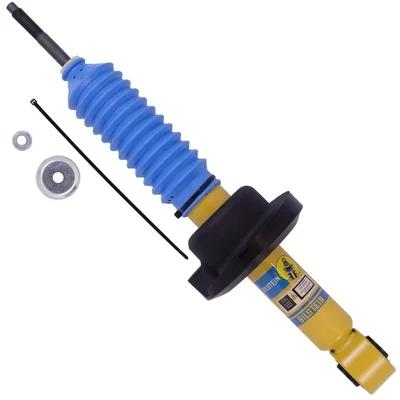

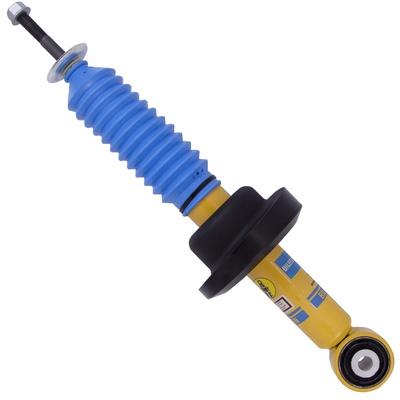

The Bilstein B6 4600 front coilover shock, part number BIL24-268110, is a 46 mm monotube shock for the 2016 to 2024 Nissan Titan XD in 4WD form. It is sold individually, has a snap ring grooved body and a yellow paint finish, and uses OEM top and bottom mounts.

This is a direct fit upgrade for the original shocks on stock height light trucks and SUVs. The monotube design gives consistent, fade free performance, and each shock is tuned to its application for better ride quality, handling and comfort.

Its velocity sensitive, digressive piston adjusts damping as the road changes. The shock is gas charged.

Key features

  • Front coilover shock absorber
  • Snap ring grooved body
  • 46 mm body diameter
  • OEM top and bottom mounts
  • Monotube design with consistent performance
  • Velocity sensitive digressive piston
  • Yellow paint finish

Setting up a pair

Front shocks on a four-wheel drive truck do more than control bounce. They help keep the tires on the ground over uneven terrain and support braking and steering stability. Coilover shocks carry the spring seat on the body, which makes the spring and shock behave as one unit and keeps the ride consistent when the suspension travels.

Buying two shocks at once keeps damping matched on each side, which helps the truck track straight and handle predictably. Before installing, check the coil spring seat against the snap ring groove, look at the mounts and bushings, and inspect the springs for sag. Torque fasteners to the value in your service manual.

  • Check the snap ring groove and seat alignment
  • Replace worn bushings with the shock
  • Inspect springs for sag before installing
  • Re-check bolts after the first few drives

Specifications

Brand Bilstein
Part number BIL24-268110
Shock series 4600 Series
Position Front
Shock type Monotube, coilover, gas charged
Body Snap ring grooved, 46 mm, yellow
Top mount OEM
Bottom mount OEM
Sold as Individually
Fitment Direct fit

Vehicle fitment

It fits 2016–2024 Nissan Titan XD models in PRO-4X, Platinum Reserve, S, SL and SV trim, in 4WD form.

The short text is for 4WD Titan XD models. The list does not include the non-XD Nissan Titan or any other Nissan model. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the mounts are OEM, the shock installs in the factory locations. Check that the coil spring seat matches the snap ring groove before installing.

What’s included

The product is one front coilover shock under part number BIL24-268110, sold individually.

Fitment

VehicleYearsTrims
Nissan Titan XD2016–2024PRO-4X, Platinum Reserve, S, SL, SV

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the BIL24-268110 fit a 2017 Nissan Titan XD?

Yes, for 2016 to 2024 Titan XD models in PRO-4X, Platinum Reserve, S, SL and SV trim, which includes 2017. Confirm four-wheel drive before ordering.

Is this a coilover shock?

Yes. The shock is a front coilover design with a snap ring grooved body, so the spring seat is located on the body.

Is the BIL24-268110 sold as a pair?

No. It is sold individually, so a second front shock is needed for the other side of the vehicle. Match the two shocks to the same position and part series.

What should I check after installing a pair of shocks?

Look for leaks at the body and rod seal, listen for knocks over bumps, and recheck every fastener after the first drive. A new shock should steady the ride and reduce bounce compared with worn units, so note how the truck feels on a familiar road.
